Summary of Contents for edenox HBT-311

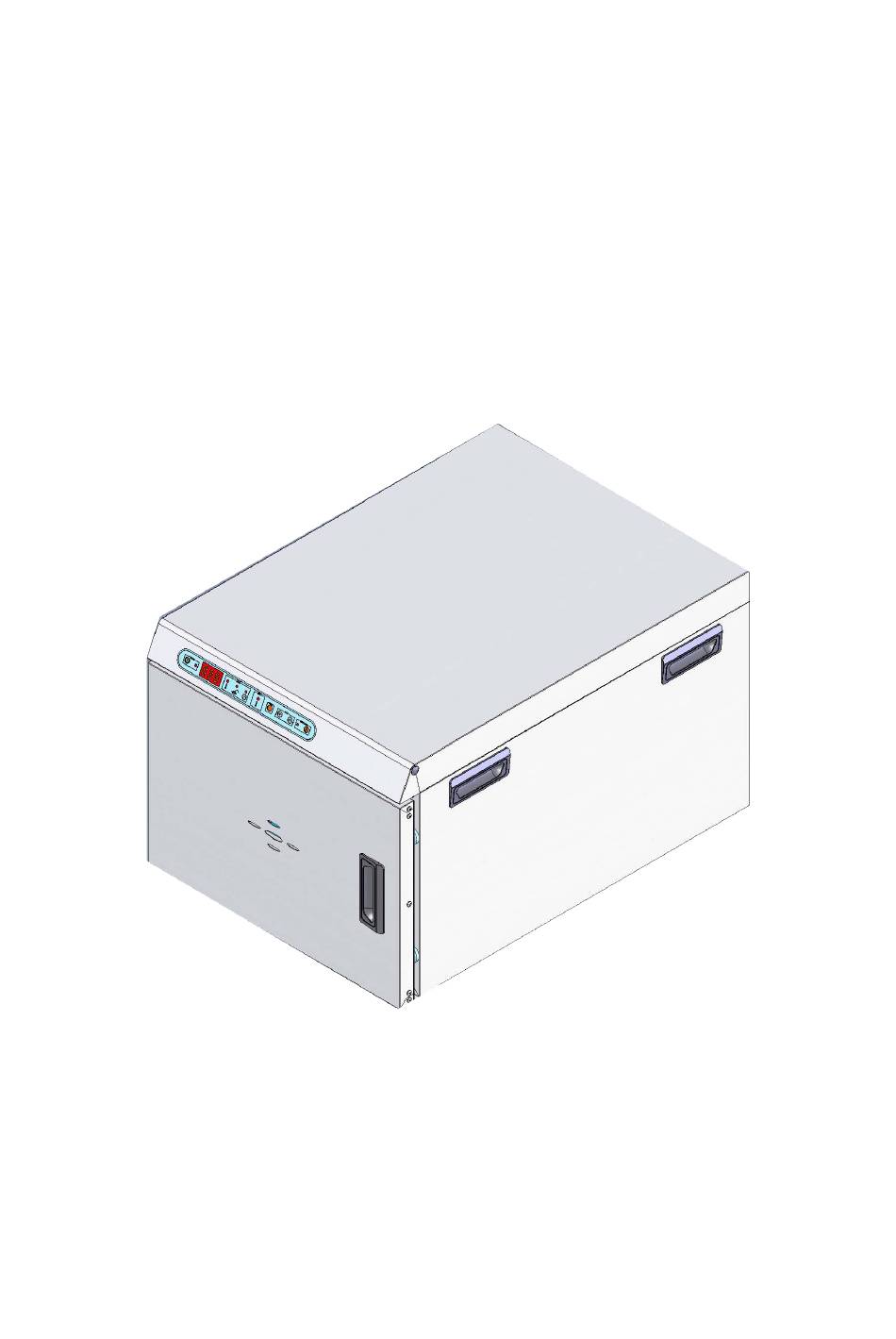

  • Page 1 Low-temperature Oven User’s Manual...
  • Page 2 Notice: This appliance is commercial used only. Thank you for purchasing and using this product. In order to make full use of the appliance and reduce unnecessary loss and injuries, and know the appliance much better, please read the user’s manual carefully and keep it for file for future reference.
  • Page 3: Table Of Contents

    Contents 1. Introduction .1. Introduction 1.2. Technical Parameter and Dimension Diagram 1.3. Safety Instruction 1.4. Warranty Installation 2.1. Oven Installation 2.2. Electric Connection 3. Operation 4. Cleaning and Maintenance 5. Transportation and Storing 6. Troubleshooting 7. Circuit Diagram 1. Introduction 1.1 Introduction...
  • Page 4: Technical Parameter And Dimension Diagram

    A. Technical Parameter Power Model Dimension(mm) Volts Capacity (kW) 3 units of HBT-311 691x497x415 230V/50/60Hz 1.2kW 400*600mm trays B. Dimension Diagram 1.3 Safety Instruction The appliance should locate on a stable place and should be kept away from the flammable substance of both side at least 10cm. Install a suitable power switch, fuse and leakage protector near the appliance.
  • Page 5: Warranty

    2. All the operators must comply with the electrical safety guidelines and make sure the service power is corresponded to the supply power of the nameplate. Make sure the appliance is safety grounding. 3. Make sure to use the oven under the safe situation. If any error, please ask for maintenance immediately.
  • Page 6: Operation

    2、 It is suggested that the rear of the appliance keep 100mm space with the wall. 3、 The appliance should place on the strutting, such as metal platform. 4、 Do not place the appliance on the floor. 5、 If the appliance is located near the wall, clapboard or drawers, it is suggested that they are made of non-flammable materials or covered by non-flammable insulation.
  • Page 7 1 、Power on When the power is on for the first time, the buzzer will sound. After all the indicator lights and nixie tubes illuminate for 0.5 seconds, only the power indicator light illuminates and the other indicators and nixie tubes will turn off. 2 、Power off When the power is on for the first time for 0.5 seconds or turn on the appliance ( standby and running, warming), press the on/off switch to turn off the appliance, the power indicator...
  • Page 8 2、Food Core Temperature Setting When the appliance is on standby or running, you can choose the core state of the food by setting the choose key. At this time, the core temperature indicator light illuminates, you can enter the temperature value by adjusting the minus or plus keys(Noticed: Do not set the food core temperature after working time is set since they can not coexist).
  • Page 9 3、Indicator of the Core Temperature Setting (After setting the core temperature on running state, please stop at the core temperature setting mode)When the nixie tubes display the chamber actual temperature on running state, the indicator will flash. The indicator will illuminate when the nixie tubes display the setting core temperature, as well as setting the core temperature.
  • Page 10: Cleaning And Maintenance

    the core temperature setting can not coexist with working time setting). After setting, press the run/stop key to access the running state. The nixie tubes will display the actual temperature of the chamber. At the same time, the chamber setting indicator will flash for 4.5 seconds and the nixie tubes will display the setting temperature of the chamber.
  • Page 11: Transportation And Storing

    4. Please clean the chamber properly after using and please clean the appliance according to the requirements below: A. Take out the tray and bracket from the oven. B. Turn on the oven. C. Run the appliance for 10 minutes at about 80℃. D.
  • Page 12 Remark※ Error Causes Remedy The power wire loose change the power cord The fuse of the switchboard The oven do not ask the change the fuse professionals for damage work help The electric system is re-mount the electric installed improperly system correctly The temperature sensor change the temperature...
  • Page 13: Circuit Diagram

    6. Circuit Diagram...
