63.5 µs

1 Q200 Collector

0.24 µs

4 IC300 Pin 23

63.5 µs

7 IC300 Pin 4

540 ns

0 IC700 Pin 9

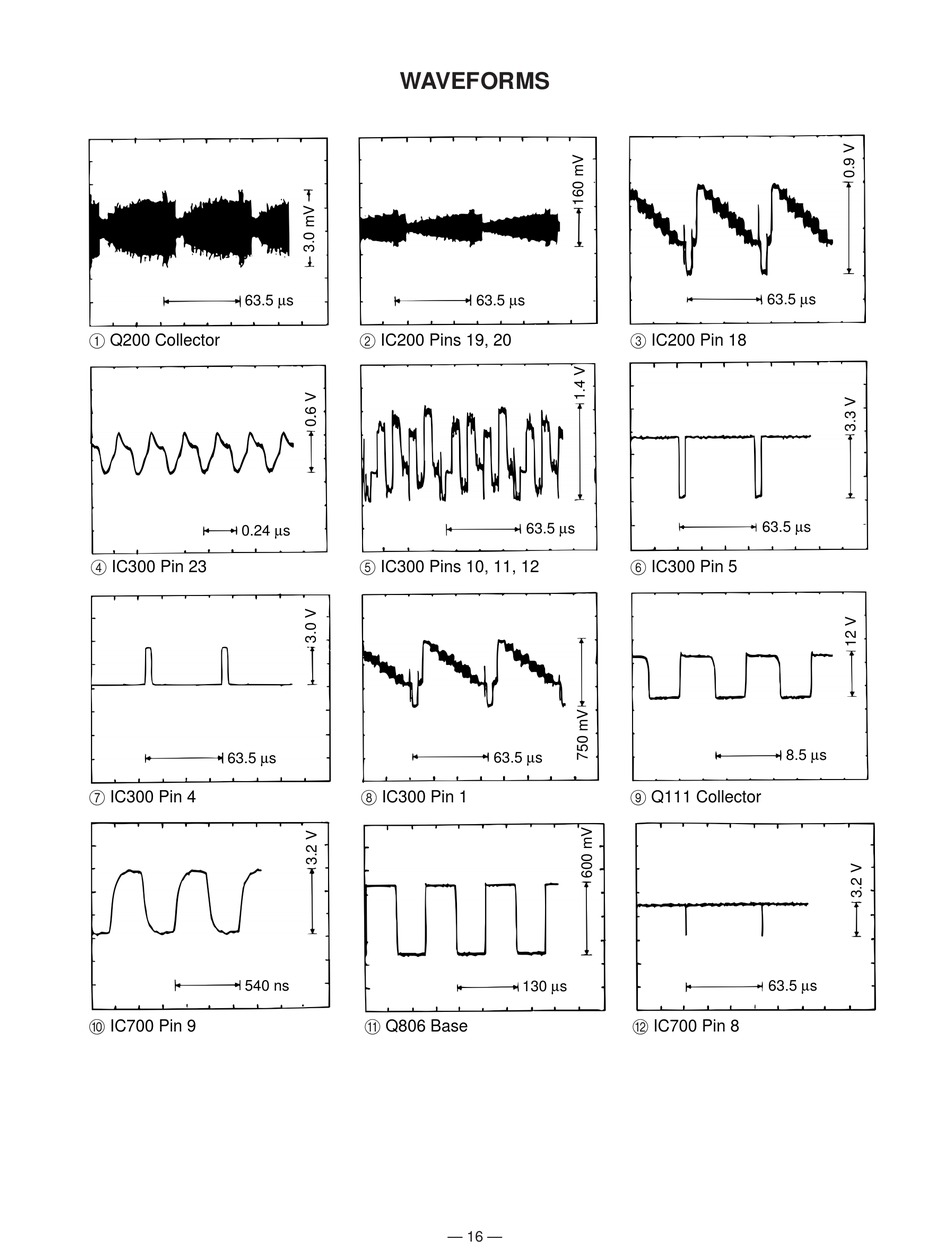

WAVEFORMS

63.5 µs

2 IC200 Pins 19, 20

63.5 µs

5 IC300 Pins 10, 11, 12

63.5 µs

8 IC300 Pin 1

130 µs

A Q806 Base

— 16 —

63.5 µs

3 IC200 Pin 18

63.5 µs

6 IC300 Pin 5

8.5 µs

9 Q111 Collector

63.5 µs

B IC700 Pin 8
