HOME thermostat sets:
Danfoss A/S
Haarupvaenget 11
DK-8600 Silkeborg
Denmark
homeretail.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations
can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights
reserved.
Danfoss Heating Segment

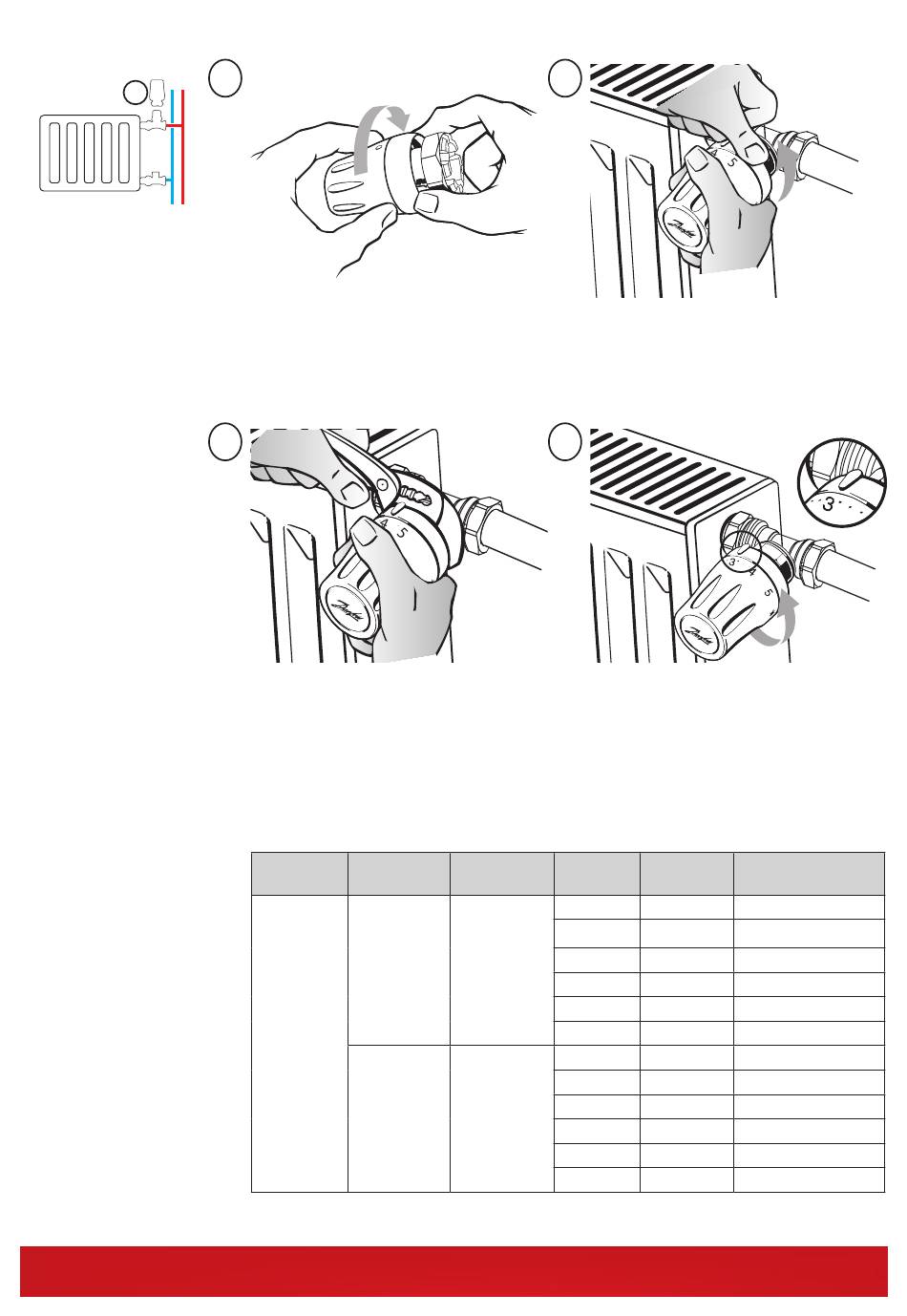

Fitting the radiator thermostat (TRV)
1
Remove cap from valve and turn sensor to
5. Make sure union nut is turned loosely
up towards the sensor body until it is only
slightly free of the lower part of the sensor
body.
3
Whilst holding the sensor firmly on the
valve secure connection by turning the
union nut clock-wise by hand. Whilst still
holding the sensor firmly on the valve fully
tighten the metal union.
Radiator
Lock Shield
Sensor (TRV)
RLV-S Angle
RTW- RA
RLV-S Straight
2
Press the sensor firmly onto the valve, en-
suring that the scale pointer is at top.
4
Set desired room temperature.
Removing the Sensor:
Turn the sensor to max. position 5. Turn
union nut anti-clockwise to release locking
mechanism.
Product
Valve
Code
013G6506
013G5607
013G6508
RA-FN Angle
013G6509
013G6514
013G6515
013G6510
013G6511
013G6512
RA-FN Straight
013G6513
013G6516
013G6517
VI JPM102
Pipe
Building Regulation
size
3/8" (DN 10) DE Building Regulation
3/8" (DN 10)
FR Building Regulation
1/2" (DN 15)
DE Building Regulation
1/2" (DN 15)
FR Building Regulation
3/8" (DN 10)
SE Building Regulation
1/2" (DN 15)
SE Building Regulation
3/8" (DN 10) DE Building Regulation
3/8" (DN 10)
FR Building Regulation
1/2" (DN 15)
DE Building Regulation
1/2" (DN 15)
FR Building Regulation
3/8" (DN 10)
SE Building Regulation
1/2" (DN 15)
SE Building Regulation
06/2015
