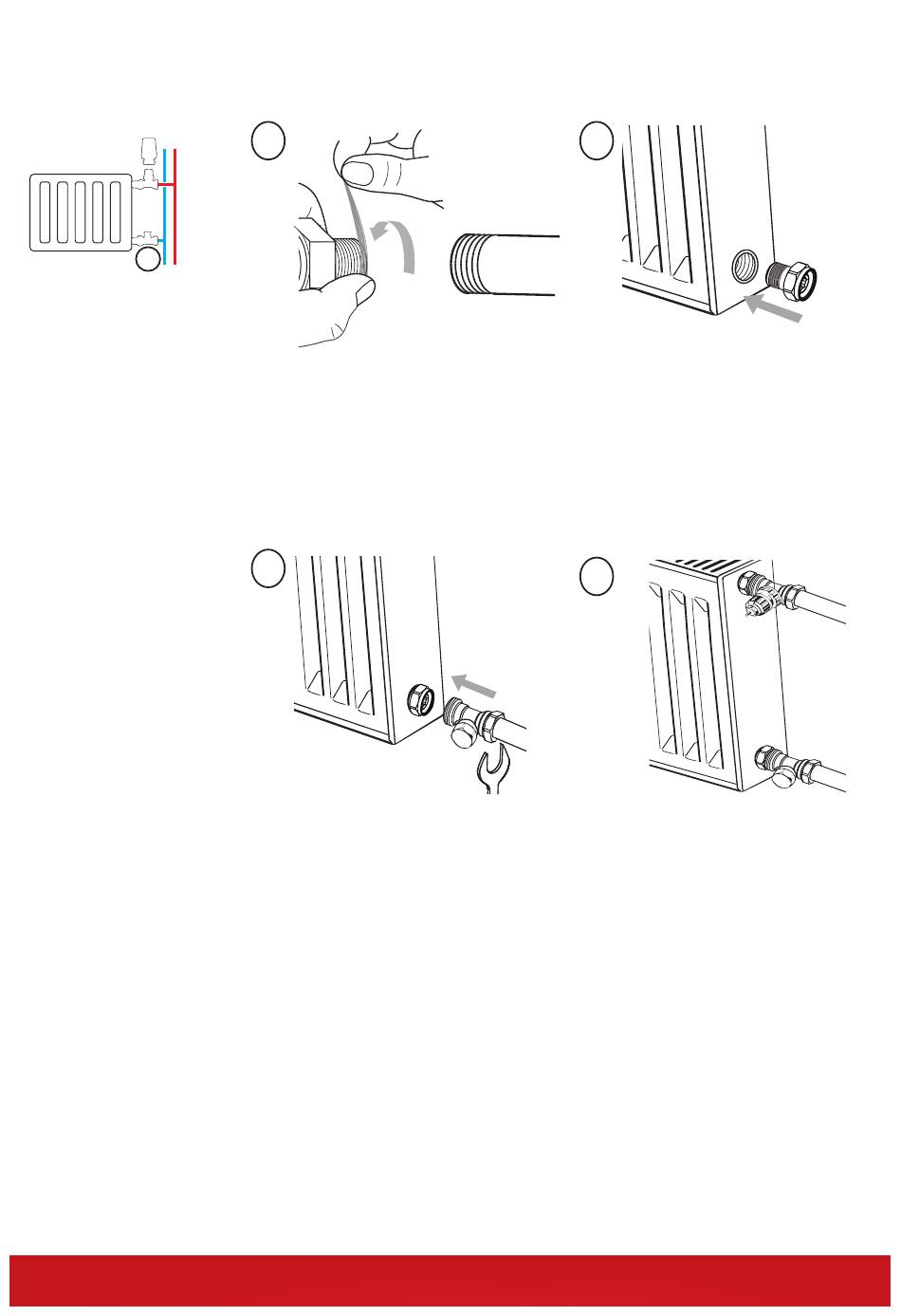

Fitting the lock shield
(Straight or Angled)
1
B
Separate the lock shield and the tail
piece. Apply the PTFE tape to the lock
shield and pipe
3
Fit the lock shield to the pipe; tighten
the union nut with a spanner. Next,
fit the lock shield to the tail piece and
tighten the union nuts.
2
Fit the tail piece to the radiator and
tighten with a 10mm Allen key
4
Once installed take off the lock shield
cover.
Ensure the RLV is open using a 8mm
Allen key, then put the cover back on.
