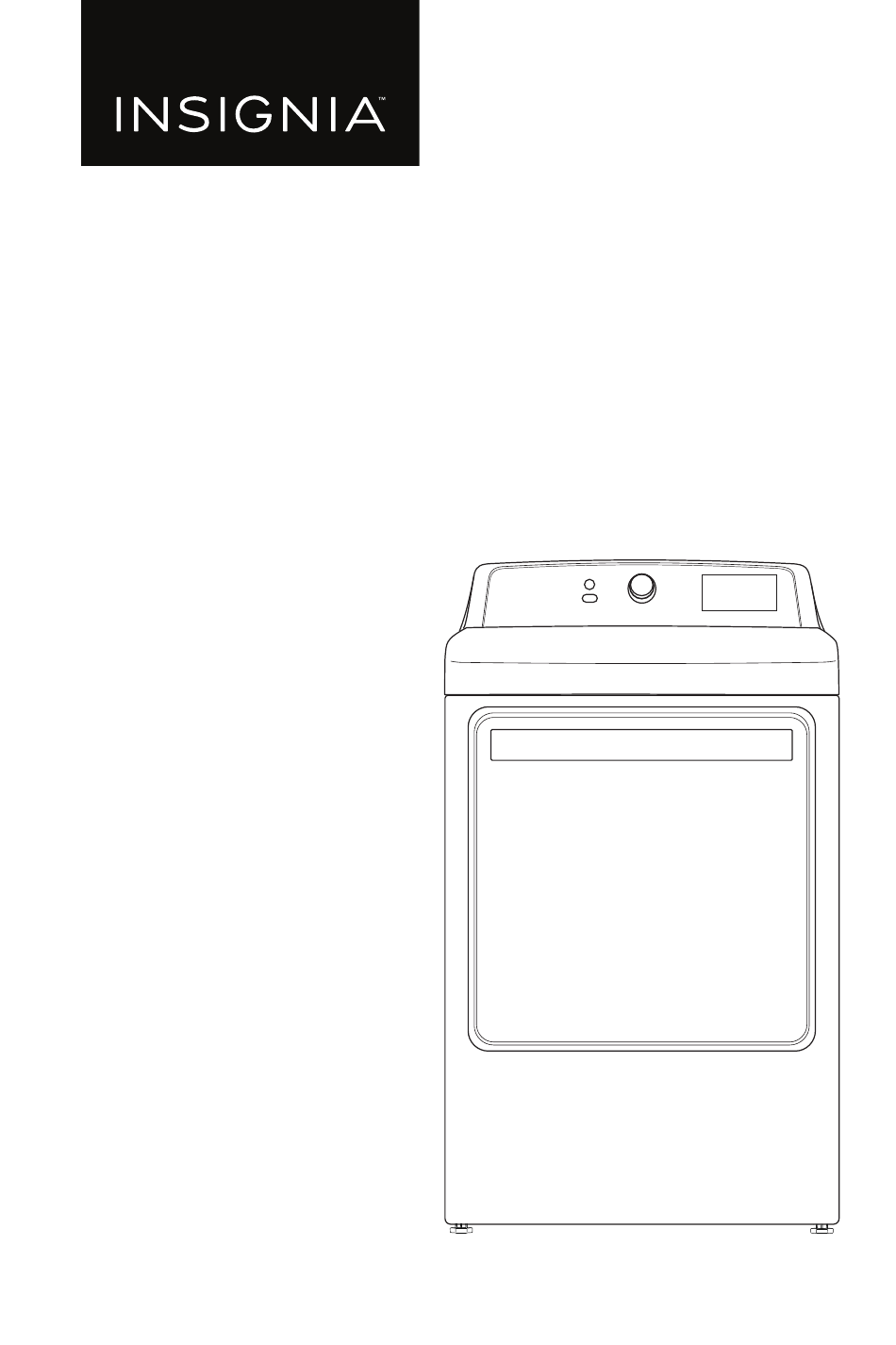

- Page 1 USER GUIDE 10-Cycle Electric and Gas Dryers NS-TDRE75W1/NS-TDRG75W1 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY .........42 Introduction Congratulations on the purchase of your new Insignia dryer. Insignia dryers feature the latest in design and capabilities and will provide reliable and trouble-free performance. ... -
Page 3: Important Safety Instructions
SAFETY & PRECAUTIONS 10-Cycle Electric and Gas Dryers IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This User Guide contains important information on the installation, use, and care of your dryer. Please read this guide carefully before installing and operating your dryer to prevent injury and property damage. The Warnings and Important Safety Instructions in this guide do not cover all possible conditions and situations that may occur. - Page 4 SAFETY & PRECAUTIONS NS-TDRE75W1/NS-TDRG75W1 State of California Proposition 65 Warnings WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov. WARNING FIRE OR EXPLOSION HAZARD • Failure to follow safety warnings exactly could result in serious injury, death, or property damage. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 5 SAFETY & PRECAUTIONS 10-Cycle Electric and Gas Dryers Basic Precautions WARNING IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using the appliance. Use this appliance only for its intended purpose as described in this User Guide. Before use, your dryer must be properly installed as described in this guide. Always follow the fabric care instructions supplied by the garment manufacturer.
- Page 6 SAFETY & PRECAUTIONS NS-TDRE75W1/NS-TDRG75W1 Clean the lint screen before or after each load. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt. The interior of your dryer and the exhaust duct should be cleaned periodically by qualified service personnel.
-
Page 7: Features
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers SAVE THESE INSTRUCTIONS WARNING Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer’s instructions and local codes. Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryer. -
Page 8: Back Components
INSTALLATION INSTRUCTIONS Back components Electric Dryer Wiring box Back venting hole Gas Dryer Power cord (gas dryer only) Gas inlet www.insigniaproducts.com... -
Page 9: Control Panel
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Control panel ITEM DESCRIPTION Press to turn your dryer on or off. If your dryer is on for more /POWER than 10 minutes without any buttons being pressed, it button automatically turns off. Turn to select the cycle for the type of load. -
Page 10: Unpacking Your Dryer
INSTALLATION INSTRUCTIONS ITEM DESCRIPTION Press and hold for three seconds to save your favorite drying My Cycle cycle. Press once to load your favorite cycle setting. button Press to select the dryness level. Different dryness levels result in different drying times. For clothes to be ironed manually, Dryness select a lower dryness level. -
Page 11: Choosing A Location
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Choosing a location Important to installer: Read the following instructions carefully before installing the dryer. These instructions should be kept for future reference. • The dryer is not suitable for installation in a mobile home. •... - Page 12 INSTALLATION INSTRUCTIONS 31.5 in. 80.0 cm 52.5 in. 133.3 cm www.insigniaproducts.com...
- Page 13 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Installing your dryer and washer side-by-side Leave at least one inch between your appliances and from any surrounding walls. If your washer is a top-loading washer, make sure that you have enough room to open the washer lid. 27 in.
- Page 14 INSTALLATION INSTRUCTIONS Installing in an alcove, closet, or wall insert/recessed WARNING: • You must exhaust your dryer to the outside to reduce the risk of fire when installed any place inside the house. • Do NOT install another fuel-burning appliance in the same closet as your dryer.
-
Page 15: Exhausting Requirements
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Exhausting requirements WARNING: Do not exhaust your dryer into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space in a building. Your dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or closet. -
Page 16: Duct Requirements
INSTALLATION INSTRUCTIONS Duct requirements WARNING: You are responsible for correctly installing the exhaust system. • Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. Do not use a smaller duct. • Ducts larger than 4 inches (10.2 cm) in diameter can result in increased accumulation of lint. -
Page 17: Electric Requirements
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers For best results, the static pressure in any exhaust system should be between 0.3 to 0.8 inches of water column, and it cannot be less than 0 under any circumstances with an installed duct with a four inch diameter. WEATHER HOOD TYPES Recommended Use only for short-run... - Page 18 INSTALLATION INSTRUCTIONS Gas models - U.S. and Canada A 120-volt, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit breaker is required. Electric models - U.S. only The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric service requirements can be found on the data label located behind the door.
- Page 19 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Using a four-wire outlet If your outlet is a four-wire (four-prong) outlet, choose a four-wire power supply cord with ring or spade terminals and UL listed strain relief. The four-wire power supply cord must: •...
-
Page 20: Grounding Requirements
INSTALLATION INSTRUCTIONS COMMONWEALTH OF MASSACHUSETTS INSTALLATION INSTRUCTIONS Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be installed in the gas supply line to the installed dryer at the location of operation. If a flexible gas connector is used to connect the dryer, the connector may not be longer than 3 ft. -
Page 21: Installing Your Dryer
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Electric models WARNING: • For products sold in the U.S., your dryer has an optional cord with an equipment-grounding conductor and a grounding plug, which is sold separately. • For products sold in Canada, your dryer is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 22: Before You Start
INSTALLATION INSTRUCTIONS Before you start Before you start installing your dryer, make sure that: • The location you selected has a grounded electrical outlet. See Grounding requirements on page 20. • For U.S. models, you have the correct type power cord (not included). See Electric requirements on page 17. - Page 23 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Step 3: Connect the exhaust ducting Important: Before you connect the exhaust ducting, review ducting requirements in Duct requirements on page 16. WARNING: • Use a 4 in. (10.2 cm) diameter rigid or semi-rigid metal duct. •...
- Page 24 INSTALLATION INSTRUCTIONS Make sure that the exhaust hood flapper or louvers move freely. If you do not have an exhaust hood installed, see Exhaust hood types on page 16 for information about recommended hood types. We recommend that you have a professional install the exhaust hood. Connect one end of the exhaust ducting to your dryer, then use duct tape to secure the ducting to your dryer.
- Page 25 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Three-wire outlet: Center terminal block screw External ground connector Neutral grounding wire (white) Neutral wire (white or center wire) 3/4" (1.9 cm) UL-listed strain relief On your dryer, remove the center terminal block screw (A). Connect the neutral wire (white or center wire) of the power cord to the center terminal screw of the terminal block.
- Page 26 INSTALLATION INSTRUCTIONS Remove the center terminal block screw. Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw. Connect the neutral wire (white or center wire) of the power cord and the appliance ground wire (white) under the center screw of the terminal block. Connect the other wires to the outer terminal block screws.
-
Page 27: Reversing The Dryer Door
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Reversing the dryer door Step 1: Remove the dryer door Make sure that the power cord is unplugged. While supporting the door, remove the four hinge screws on the body of the dryer, then lift the door to remove it. CAUTION: Be careful not to drop the door when removing the screws. - Page 28 INSTALLATION INSTRUCTIONS Remove the remaining 14 screws that secure the inside door cover to your dryer door. Dryer door Door latch To remove the inside door cover, insert a putty knife next to each of the five tabs (three at the top and two at the bottom) and pry the cover off. Note: If you don’t have a putty knife, you can use a flathead screwdriver.
- Page 29 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Step 3: Move the hinges Lift off each hinge, turn it around (180°), and place it on the other side of the dryer door. Make sure that the hinge is aligned with the holes in the door. Remove the two hinge plugs from the inside door cover, then place them in the dryer door where the hinges used to be.
- Page 30 INSTALLATION INSTRUCTIONS Step 4: Replace the door cover Rotate the door cover 180° and align it with the door. Squeeze the door cover back onto the dryer door. Place the latch on the side opposite the hinges and secure with two screws. Secure the door cover using the remaining 14 screws you removed in Step 2: Remove the door cover on page 27.
- Page 31 INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Step 5: Move the hinge plates On the main body of your dryer, use a putty knife to remove the two hinge plates. Note: If you don’t have a putty knife, you can use a flathead screwdriver. Be careful: a screwdriver may scratch your dryer.
- Page 32 INSTALLATION INSTRUCTIONS Step 4: Install the dryer door on the other side Align the hinges on the door with the hinge screw holes on the front of your dryer. Tip: The T-points on the door hinges slot into the body of the dryer to help with alignment and hold the door upright.
-
Page 33: Using Your Dryer
INSTALLATION INSTRUCTIONS 10-Cycle Electric and Gas Dryers Using your dryer WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. Drying a load of clothes Step 1: Turn on your dryer •... - Page 34 OPERATING INSTRUCTIONS Optional: After you select a drying cycle and customize the cycle, press and hold the My Cycle button for three seconds to save your settings. The My Cycle light flashes and your dryer beeps three times to confirm that your settings are saved.
-
Page 35: Unloading Your Dryer
OPERATING INSTRUCTIONS 10-Cycle Electric and Gas Dryers Unloading your dryer When the drying cycle is over, your dryer beeps six times and the Clean Filter indicator lights. Open the door and remove the items. Note: You should clean the lint filter after every load to avoid lint buildup and to make sure that your dryer is running efficiently. -
Page 36: Cleaning The Lint Filter
OPERATING INSTRUCTIONS Cleaning the lint filter WARNING: Do not operate your dryer without the lint filter in place. Note: • You should clean the lint filter after every load to shorten the drying time and to make sure that your dryer is running efficiently. •... - Page 37 OPERATING INSTRUCTIONS 10-Cycle Electric and Gas Dryers FABRIC WRINKLE TIME DEFAULT CYCLE TEMP DRYNESS TYPE PREVENT CYCLE ADJUST TIME AMOUNT • Wrinkle-free Very cottons • • More • Synthetic Casual Medium Normal 31 min. fabrics Less • Knits Damp Very •...
-
Page 38: Special Laundry Tips
OPERATING INSTRUCTIONS Special laundry tips ITEMS DRYING GUIDE • Follow the care label instructions or dry using the Bulky cycle. • Make sure that the item is thoroughly dry before using or Bedspreads and storing. comforters • During the drying cycle, you may need to reposition the item to make sure that it is completely dried. -
Page 39: Maintaining Your Dryer
USER MAINTENANCE INSTRUCTIONS 10-Cycle Electric and Gas Dryers Maintaining your dryer Cleaning the exterior • Clean with a soft, damp cloth. Do not use abrasive substances. • Protect the surface from sharp objects. • Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them in a separate storage area. -
Page 40: Troubleshooting
USER MAINTENANCE INSTRUCTIONS Troubleshooting CAUTION: Do not try to repair your dryer yourself. Doing so invalidates the warranty. PROBLEM SOLUTION Dryer does • Make sure that the Child Lock is not on. not start. • Make sure the dryer door is closed completely. •... -
Page 41: Understanding The Error Codes
USER MAINTENANCE INSTRUCTIONS 10-Cycle Electric and Gas Dryers PROBLEM SOLUTION Dryer shuts • The dryer load is too small. Add more items or a few towels and off before the restart the cycle. clothes are • The dryer load is too large. Remove some items and restart the dried. -
Page 42: Specifications
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 43 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 44 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2020 Best Buy. All rights reserved.
