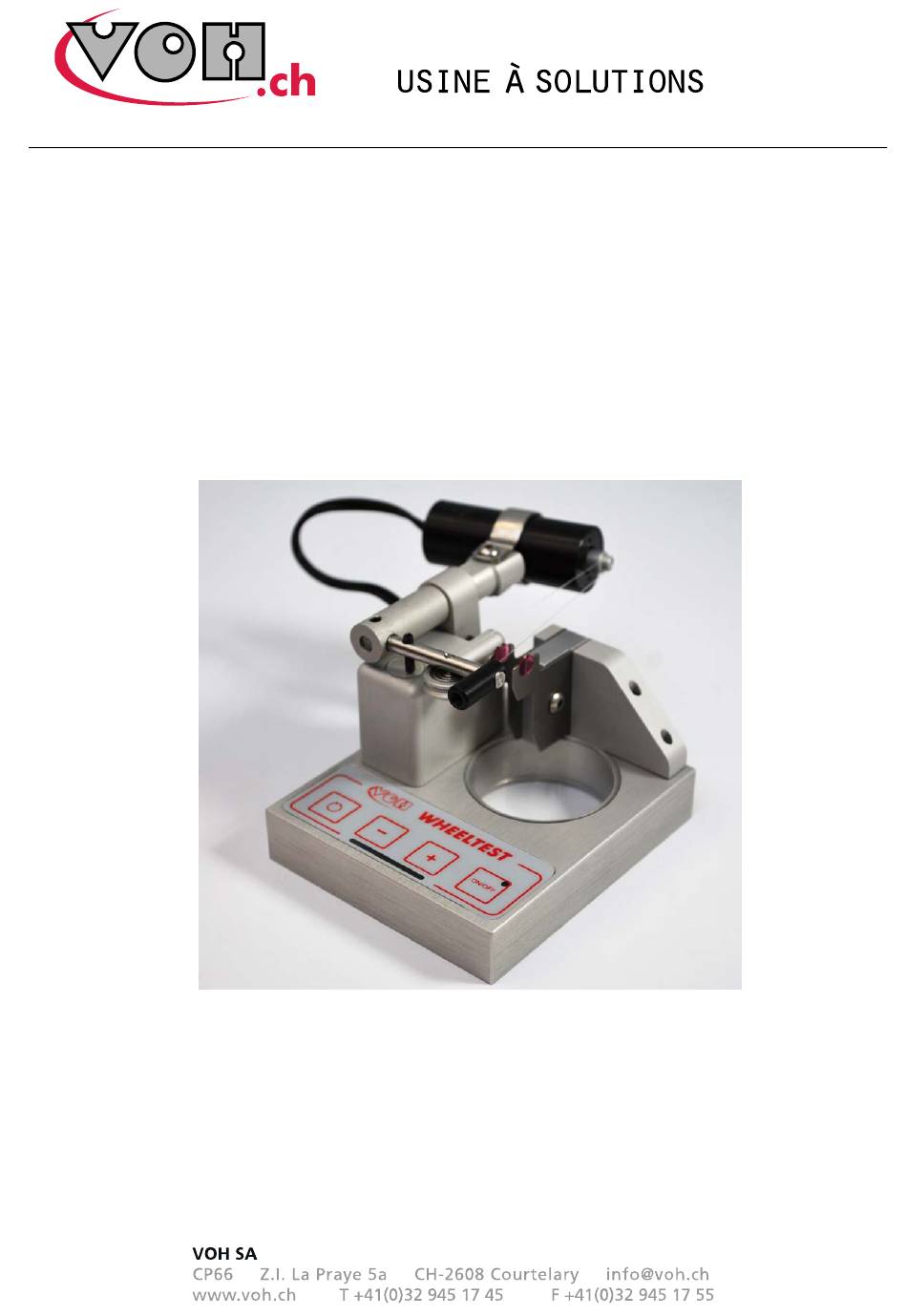

- Page 1 Wheeltest III User’s manual Translated from french...
- Page 2 Placing the specific jaws on the base ....................5 .2.2 Adjustments ............................6 Resolution of common problems ......................... 7 Exclusion of responsibility/warranty ......................7 Maintenance and care ............................ 7 Technical data ..............................7 Representation/distribution .......................... 7 G:\Documents VOH\Modes d'emploi VOH\WHEELTEST VOH\Wheeltest_3\EN\EN_Wheeltest3_guide.doc...
- Page 3 1.2 Safety information Warning Do not use the Wheeltest III if it is damaged. Before using the Wheeltest III, inspect its casing and its electrical connections. The Wheeltest III must be used on the way specified by the manufacturer ...
- Page 4 A watch wheel is placed on the specific jaws that are positioned on the base by two pins. There is a set of jaws for each part reference. Rotation is guaranteed by a belt that drives the wheel. The Wheeltest III comprises a series of control knobs for the motor.
- Page 5 3.2.1 Placing the specific jaws on the base The specific jaws are interchangeable and are positioned on the base by 2 pins. The adjustment of the specific jaws is carried out by VOH Ltd. Figure 3: Positioning pins Figure 2: Wheeltest III with a set of specific jaws...
- Page 6 Figure 6: Adjustment of the axial position of the Figure 7: Adjustment of buffer height motor Then adjust rotation speed of the wheel and drive direction Change of Speed Turn on/off direction adjustment Figure 8: control panel G:\Documents VOH\Modes d'emploi VOH\WHEELTEST VOH\Wheeltest_3\EN\EN_Wheeltest3_guide.doc...
- Page 7 Consumables (belts) are not subject to warranty. 6 Maintenance and care No special care is necessary for the Wheeltest III except classic cleaning with a dry cloth. The belt is a consumable to be replaced when the user deems necessary.
