OWNER'S MANUAL
HTS45
HTS45

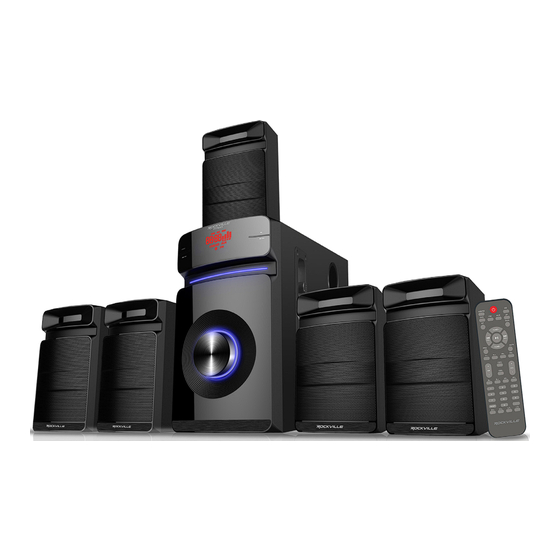

5.1 CHANNEL HOME THEATER AUDIO SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTS45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockville HTS45

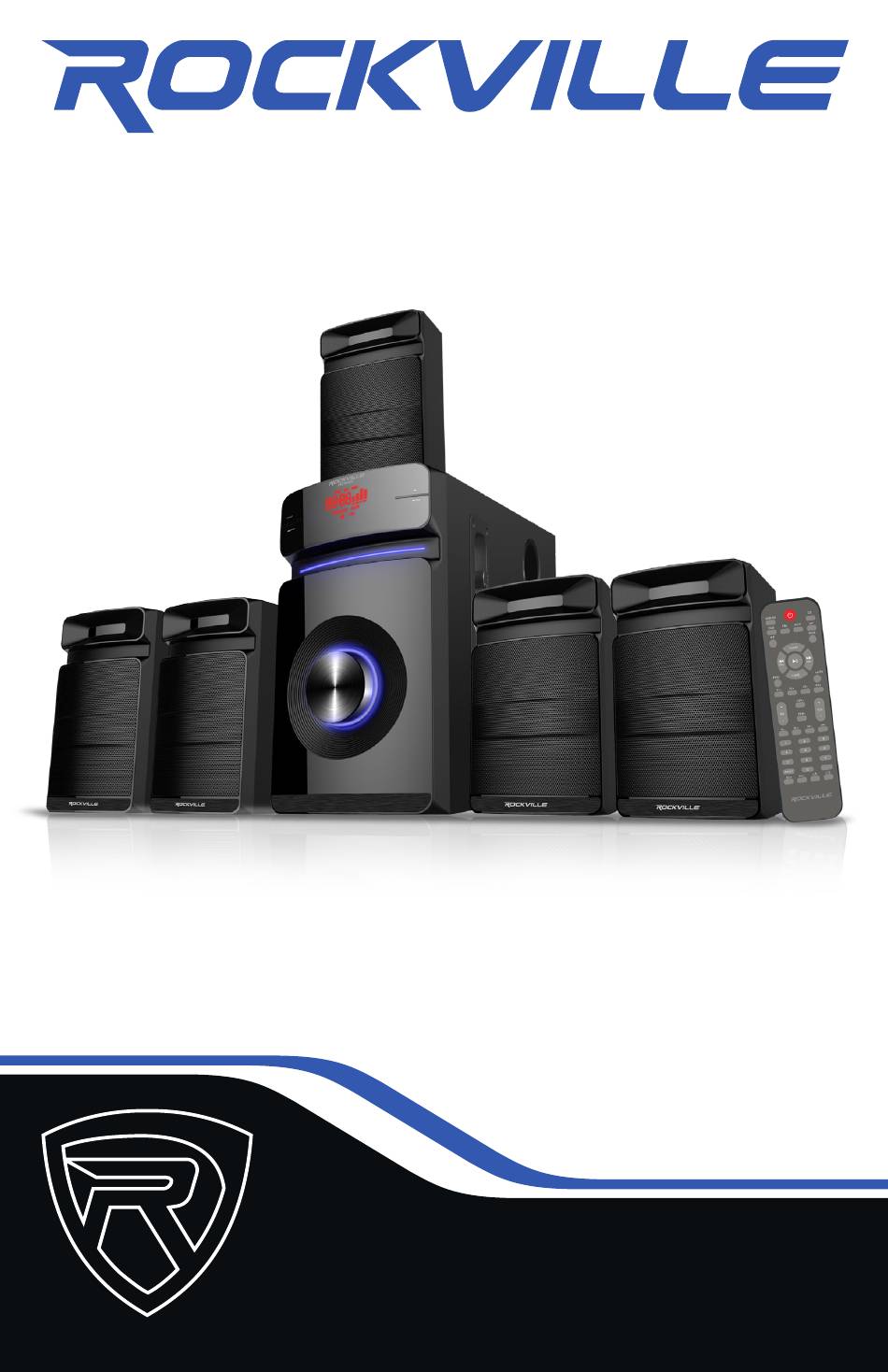

  • Page 1 OWNER’S MANUAL HTS45 HTS45 5.1 CHANNEL HOME THEATER AUDIO SYSTEM...
  • Page 3: Important Safety Instructions

    Thank you for purchasing this Rockville HTS45 5.1 Channel Home Theater System. Please read this owner’s manual carefully for proper use of your Rockville HTS45. Should you need technical assistance during or after your installation, please call our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
  • Page 4 SET UP Place speakers in the desired position (see speaker positioning diagram on page 6). Using the included speaker cables, connect the center, front, and satellite speakers to the corresponding Audio Output RCA plugs on the subwoofer unit as shown below.
  • Page 5: Component Connections

    COMPONENT CONNECTIONS 1. RCA AUX AUDIO INPUT: Use the RCA Auxiliary jacks to connect computers, cell- phones, or any other external sound source with a 3.5mm output. You will need an RCA to 3.5mm Y cable (not included). 2. DVD AUDIO INPUT: Use these RCA jacks to input the sound signal from any 5.1 channel output enabled source such as a TV, Home Theater receivers, Digital set-top boxes, game consoles, DVD players, Blu-ray players, CD players, etc.
  • Page 6: Positioning The Speakers

    POSITIONING THE SPEAKERS 1. Most people place the subwoofer in the front of the room, near the sound input source, for ease of connection. But since bass frequencies are omnidirectional the subwoofer can be placed anywhere. Try placing it near a wall or a corner for increased bass. 2.
  • Page 7 Make sure you have all the necessary screws and brackets. There should be five brackets and one bag of screws. If any of these items are missing, please contact Rockville. Using two screws, secure one bracket to the back of each speaker you wish to mount.
  • Page 8 FUNCTIONS VOLUME ECHO MIC-1 MIC-2 HTS45...
  • Page 10: Front Panel

    FUNCTIONS (continued) FRONT PANEL 1. USB and SD ports (located on the top panel of the unit). 2. Input: Press and hold for 2 seconds to exit standby mode. Press to switch between AUX, SD, USB, BT, and FM modes. /FM–...
  • Page 11: Remote Control

    REMOTE CONTROL : Power/Standby USB/SD: select USB or SD input CO: Coaxial input DVD: 5.1 input FM: FM radio mode AUX: Auxiliary input OP: Optical input BT: Bluetooth mode SAVE: Save stations to unit memory TUNE +/– : Manually tune FM stations : Play/Pause in USB/SD/BT modes CH–...
  • Page 12: Operation

    2. Press the OP button on the remote control or push the INPUT button on the unit until “OP” appears on the digital readout. 2. Use a digital optical audio cable to connect the HTS45 to the sound source. 3. Set your TV’s sound output to external speakers.
  • Page 13: Mic Input

    FEATURES • HTS45 800W 5.1 Channel Bluetooth Home Theater Audio System + Subwoofer • Plug and play system with everything you need right out of the box • 800 Watts Peak Power •...
  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Make sure the unit is plugged in and the power switch is No power in the ON position. No sound 1. Make sure you've selected the proper source. 2. Make sure all speakers are properly connected. 3. Check individual speaker volume controls as well as the master volume.
  • Page 15: Federal Communications Commission Compliance Information

    Entrance A, Inwood, NY 11096 Hereby declares that the product Rockville HTS45 complete powered home theater sys- tem complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 RockvilleAudio.com © 2020 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
