- Page 1 TM80 TM150 OWNER’S MANUAL S E R I E S S E R I E S COMPLETE POWERED HOME THEATER SPEAKER SYSTEM...

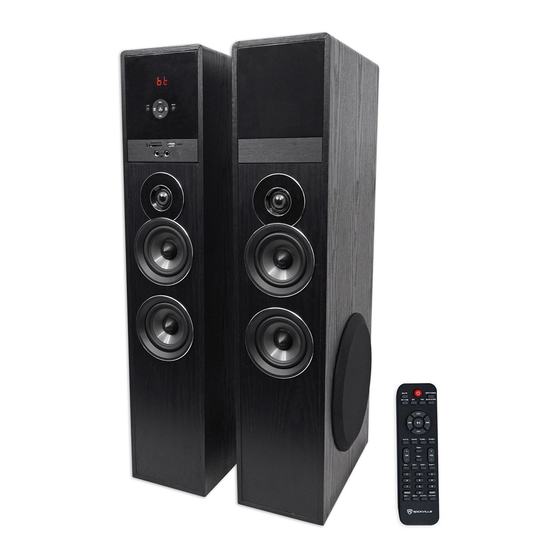

- Page 2 With the Rockville TM series home theater system, you will not need to purchase anything else. This has everything built in! Each tower speaker has a tweeter, full-range speakers, and a subwoofer built in.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE AMPLFIER PLATE. NO USER SERVICEABLE PARTS INSIDE. WE RECOMMEND TAKING THE UNIT TO A QUALIFIED SERVICE TECHNICIAN FOR ANY REPAIRS. • Do not place these speakers on an unstable surface. The speaker may fall over, causing serious injury to a child or adult and serious damage to the unit. -
Page 4: Front Panel
FRONT PANEL (MASTER UNIT) 1. Volume + 2. Previous track /channel 3. Next track /channel 4. Power/standby 5. Input select 6. Play/pause/automatic station search (FM radio) 7. Volume - 8. SD card input 9. USB input 10. Mic 1 input 11. -
Page 5: Rear Panel
REAR PANEL (MASTER UNIT) 1. L /R RCA input 2 2. L /R RCA input 1 3. 3.5mm AUX input 4. Coaxial input 5. Optical input 6. FM antenna 7. L /R RCA output 8. Power switch 9. Output to left speaker 10. -
Page 6: Remote Control Functions
REMOTE CONTROL FUNCTIONS : Power/Standby MUTE: Cancel unit sound OPT/COAX: Select optical or coaxial input SD/USB: Select SD or USB input BT: Enter Bluetooth mode FM: Enter FM radio mode AUX1/2/PC: Select RCA1, RCA2, or AUX input CH +/-: Use to navigate FM stations : Previous track/next track : Play/Pause in USB/SD/BT modes AUTO: Automatic station search... - Page 7 BLUETOOTH To connect your iPod, iPhone, MP3 player, Android phone, or any other Bluetooth capa- ble device, follow the steps listed below. 1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Press the BT button on the remote control or push the INPUT button on the unit until the digital readout shows “BT”...
- Page 8 For playback via RCA inputs follow the steps listed below. 1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Press the AUX1/2/PC button on the remote control or push the INPUT button on the unit until the digital readout shows “AU1”...
- Page 9 OPTICAL/COAXIAL (CONTINUED) 4. Set your TV’s sound output to external speakers. Please note: If you are having issues with sound output, go into your TV’s audio settings and make sure to deactivate Dolby Pro-Logic, Dolby ATMOS, etc. and select PCM format. FM RADIO For FM radio follow the steps listed below.
-
Page 10: Mic Input
MIC INPUT To use the system for karaoke, connect any microphone via either one of the 1/4˝ inputs located on the front of the unit. RCA OUTPUT Use these RCA outputs to connect an additional subwoofer or a second set of speakers. AC INPUT OUT TO LEFT SPEAKER... -
Page 11: Troubleshooting
Troubleshooting PROBLEM SOLUTION 1. Make sure the unit is plugged in and the power switch is in the No power ON position. 2. Check that the power cable is not damaged. No sound/ 1. Check that all appropriate cables are plugged in correctly. distorted sound 2. -
Page 12: Specifications
FEATURES TM80 • Complete Powered Home Theater Tower Speaker System With Dual 8˝ Subs • Peak Power: 800 watts • RMS Power: 200 watts • (2) 8˝ subwoofers • (4) Full-range drivers: 4˝ full-range drivers with polypropylene cones, rubber surrounds, and bullet dust cap •... - Page 13 FEATURES TM150 • Complete Powered Home Theater Tower Speaker System With Dual 10˝ Subs • Peak Power: 1000 watts • RMS Power: 250 watts • (2) 10˝ subwoofers • (6) Full-range drivers: 4˝ full-range drivers with polypropylene cones, rubber surrounds, and bullet dust cap •...
-
Page 15: Federal Communications Commission Compliance Information
Entrance A, Inwood, NY 11096 Hereby declares that the product Rockville TM series complete powered home theater tower speaker system complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 16 RockvilleAudio.com © 2019 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
