Rockville HP4S Owner's Manual

Mounting

max ±66°
1. Remove the bracket knobs and the bracket from the speakers.
2. Hold the bracket up to the mounting surface. These speakers can be mounted
horizontally or vertically. Use a level to ensure that the bracket is square with its
surroundings.
3. Once the bracket is level, mark the location of the three screw holes. Be sure
to use all the screw holes as this will ensure that the bracket is securely attached
to the mounting surface.
4. Remove the bracket and drill holes were your marks are.
5. Gently pull the speaker wire through the large circular hole in the middle of the
bracket. Now place the bracket against the mounting surface so that the holes
all line up.
6. Use the included hardware to attach the bracket to the mounting surface.
7. Mount the speaker to the bracket and tighten the moutning knobs. Do not
tighten completely.
8. Check to make sure the speaker is in phase and functioning correctly. Angle
the speaker to desired position.
9. Hand tighten the bracket knobs. Do not use power tools as they may over
tighten the knobs and strip the threads of the insert.
10. Double check that the installation is safe and secure.
RockvilleAudio.com
© 2019 ROCKVILLE // Features and specifications are subject to change and or improvement without notice
OWNER'S MANUAL
HP4S/HP4S-8
HP4S BK/HP4S-8 BK

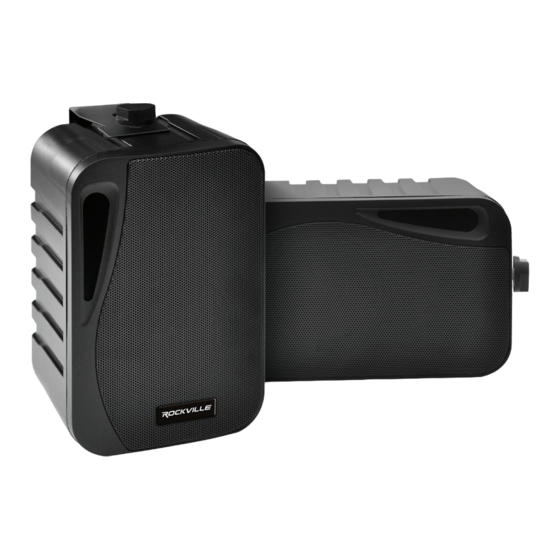

4˝ 360 Watt Outdoor/Indoor Home Theater
Speakers w/Swivel Brackets
