Summary of Contents for Jansen Medicars R40.00.00

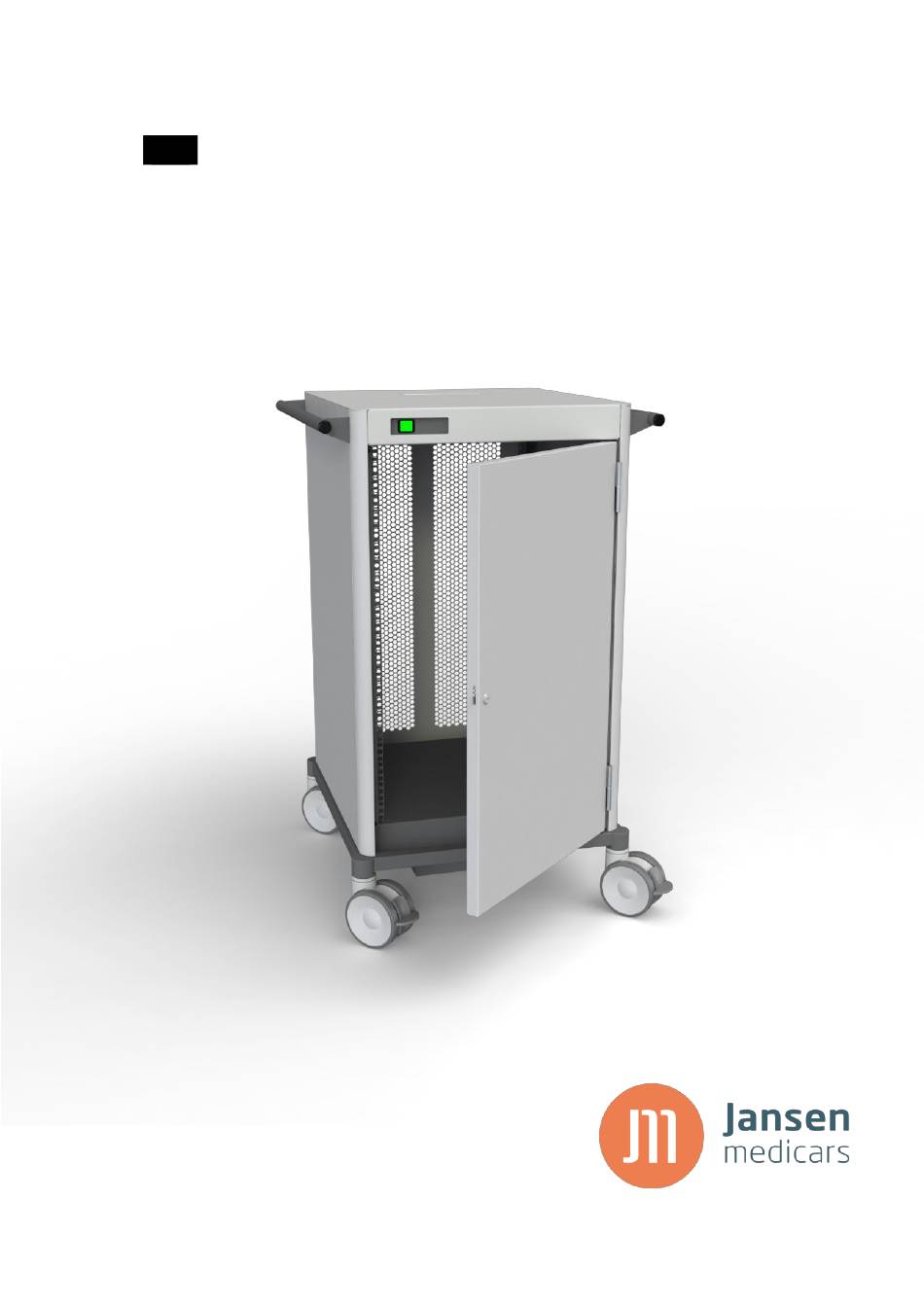

- Page 1 Hospital grade 19” U-rack cart Directions for use Version 1.0 © 2019 Jansen Medicars...
- Page 2 Jansen Medicars © 2019 Jansen Medicars Archimedesbaan 3 Tel. +31 30 2613500 3439ME Nieuwgein URL www.medicars.com Netherlands No rights can be derived from this publication. Nothing may be duplicated from this publication without written permission from Jansen Medicars.
-
Page 3: Table Of Contents
1 Content CONTENT ................1 INTRODUCTION ..............2 ................2 OOKMARK GENERAL SAFETY RULES ............3 THE CART EXPLAINED ............. 9 ................12 PTIONS INSTALLATION ..............13 ................13 HECKS ..........13 AKING THE CART READY FOR USE MAINTENANCE AND INSPECTION ......... 15 Pagina 1... -
Page 4: Introduction
Do not work on the cart if you do not possess the necessary knowledge, or if you are not authorised to do so. Jansen Medicars cannot be held responsible for damage, consequential damages and injuries caused by incorrect use/treatment or by negligent maintenance. -
Page 5: General Safety Rules
3 General safety rules This chapter contains important safety rules for working with the Hospital grade 19” U-rack cart. Important! Read these safety rules in its entirety before you start using, installing, cleaning, maintain or moving the cart. Take the following into consideration: DO NOT REMOVE TRADE, WARNING OR SAFETY LABELS/STICKERS. - Page 6 Adjust your speed to the immediate circumstances. The cart should never travel faster than 2km/hour (1.24 mph) so that control is maintained during unexpected situations. Moving at a normal walking pace (4 to 5km/hour or 2,5 to 3 mph) is too fast. Jansen Medicars Pagina 4 V2 2016...
- Page 7 Do not drive the cart over inclines and obstacles such as cables and thresholds (elevator entrance). If this is necessary, do it slowly and with a minimum of two persons. Be aware: a heavily loaded cart always has a certain brake path.
- Page 8 DO NOT PLUG CORD INTO OUTLET IF WET. DO NOT OPERATE POWER SYSTEM IF WET. DO NOT ALLOW THE POWER CORD, ISOLATION TRANSFORMER OR POWER STRIP TO OVERHEAT. Jansen Medicars Pagina 6 V2 2016...
- Page 9 DO NOT OPEN ANY PART OF THE POWER SYSTEM. Unauthorized personnel opening the power system may cause injury or death. DO NOT drive, drag or place objects over the power cord. Do not stand or walk on the power cord. EQUIPMENT not suitable for use in the presence of a FLAMMABLE ANESTHETIC MIXTURE WITH AIR or WITH OXYGEN OR NITROUS OXIDE.
- Page 10 Technical maintenance must always be carried out by qualified personnel. The cart must be checked at least twice a year by authorized technical personnel. Important points are: check for wear and tear, check screws and welding Jansen Medicars Pagina 8 V2 2016...
-
Page 11: The Cart Explained
4 The cart explained A cart is assembled to the customer's specifications. The starting point is the basic cart, as shown below. This basic cart contains a 18U 19” rack. Mounting sections for the devices are both at the front and rear side. - Page 12 Standard, the cart is equipped with a 1600VA medical isolation transformer. This transformer is attached to the bottom fame of the cart. The central power switch on the from controls the primary side of the transformer. Jansen Medicars Pagina 10 V2 2016...
- Page 13 Replace fuses only with the type specified on the transformer fuse label. For 230VAC this is 8AT 250V. A standard power cable with a C13 plug can be connected to the transformer. If a power cable is connected, make sure the strain relief is properly attached.
-
Page 14: Options
Many accessories are available, like monitor arms, camera holder, gas cylinder holders, cable hooks, etc. This image is an example of a possible configuration. For more information about the options, please contact Jansen Medicars. Jansen Medicars Pagina 12... -
Page 15: Installation
5 Installation It is very important for durable and safe use that the cart is made ready for use and maintained in the correct way. The actions described in this chapter must be carried out before the cart can be used. 1. - Page 16 At the secondary side of the transformer, the total leakage current is mainly defined you the connected devices. Make sure the total leakage current is <5mA. Jansen Medicars Pagina 14 V2 2016...
-
Page 17: Maintenance And Inspection
(cart and equipment) is heavy. Unnecessary risks can occur through incorrect use and poor maintenance. To exclude risks as much as possible, Jansen Medicars advises that the cart should be inspected a minimum of twice a year for defects and loose bolts (castors, trays, monitor arms, etc.). - Page 19 Remarks...
- Page 20 Archimedesbaan 3 3439ME Nieuwegein Netherlands *D00.11.02* Tel. +31 30 2613500 www.medicars.com *D00.11.02*...
