Summary of Contents for Dyconn Coronado TB001-A03CHR

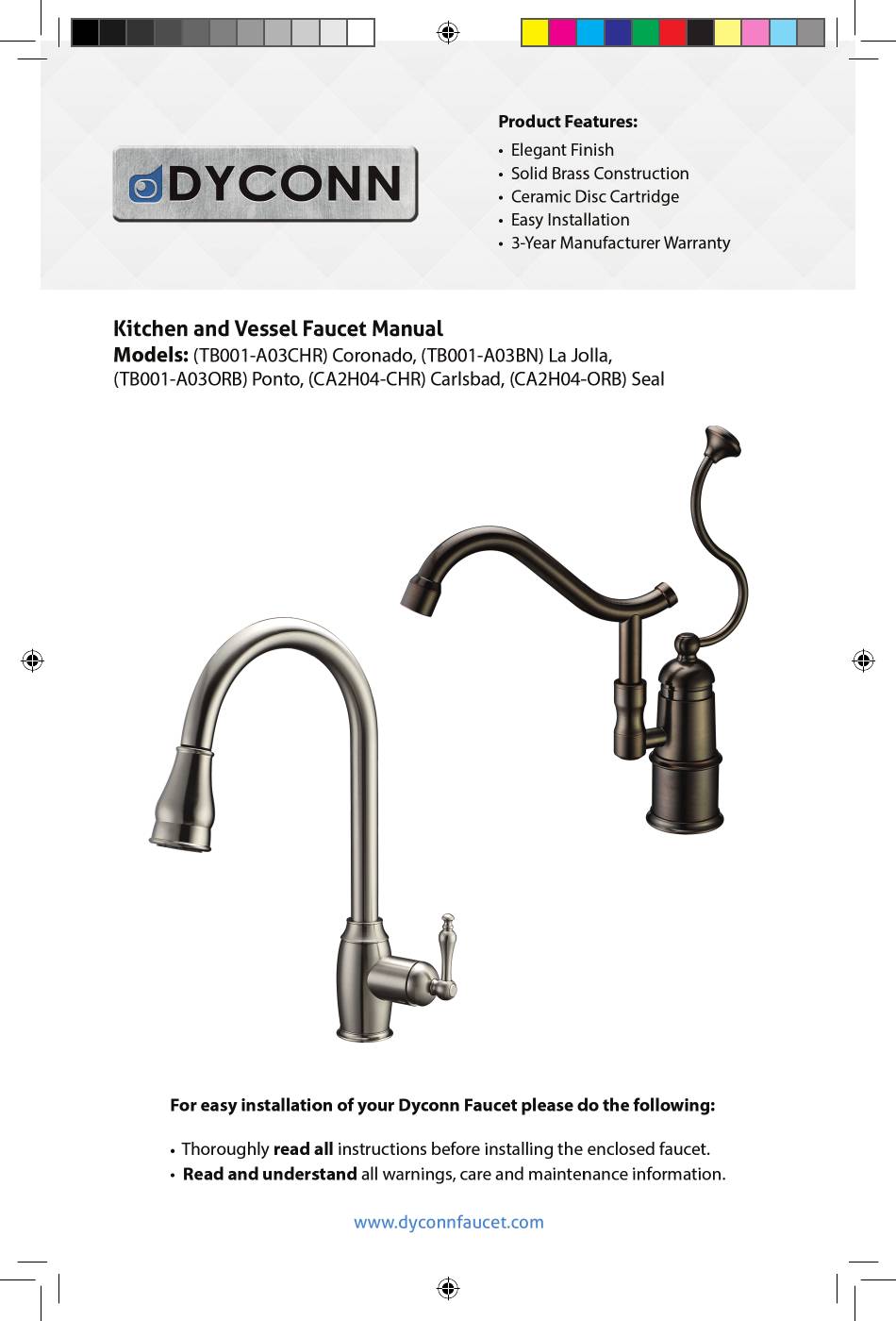

- Page 1 New Kitchen Manual.indd 1 8/8/14 3:49 PM...
- Page 2 New Kitchen Manual.indd 2 8/8/14 3:49 PM...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Product Specifications & Information ..........4 Complete Product Expanded View ............4 Models: TB001-A03CHR, TB001-A03BN, TB001-A03ORB ....4 Models: CA2H04-CHR, CA2H04-ORB ..........5 Kitchen Faucet Installation Steps ...........6 Models: TB001-A03CHR, TB001-A03BN, TB001-A03ORB Vessel Faucet Installation Steps .............9 Models: CA2H04-CHR, CA2H04-ORB Manufacturer Limited Warranty ............ - Page 4 Product Specifications & Information Product Description & Helpful Tips Complete Product Expanded View Model: TB001-A03CHR, TB001-A03BN, TB001-A03ORB www.dyconnfaucet.com New Kitchen Manual.indd 4 8/8/14 3:49 PM...
-
Page 5: Product Specifications & Information
Product Specifications & Information Complete Product Expanded View Model: CA2H04-CHR, CA2H04-ORB 1.Aerator cover 2.Aerator 3.Gasket 4.Spout Assembly 5.Trim Ring 6.Plastic Washer 7.Plastic Washer 8.O-ring 9.Plastic Washer 10.Plastic Washer 11.Connector 12.O-ring 13.Locknut 14.Gasket 15.Mounting Shank 16.O-ring 17.Body-1 18.Body-2 19.Cartridge Seat 20.Cartridge 21.Cartridge Nut 22.Trim Cap 23.Handle... -
Page 6: Kitchen Faucet Installation Steps
Kitchen Faucet Installation Steps Kitchen Faucet Installation Installation Steps for Models: TB001-A03CHR, TB001-A03BN, TB001- A03ORB 1. Remove the rubber washer, metal washer and mounting nut from the faucet shank. 2. Install the faucet shank through the deck hole. Next, re-attach the rubber washer and metal washer onto faucet shank, followed by the thorough tightening of the mounting nut onto the shank. - Page 7 Kitchen Faucet Installation Steps Kitchen Faucet Installation Installation Steps for Models: TB001-A03CHR, TB001-A03BN, TB001- A03ORB 3 Inches 3. To install the weight, pull out the hose to a desired length. From underneath the deck, attach the weight onto the pull-out hose, allowing a clearance of 3-inches from the faucet inlet ports.
- Page 8 Kitchen Faucet Installation Steps Kitchen Faucet Installation Installation Steps for Models: TB001-A03CHR, TB001-A03BN, TB001- A03ORB 5. Apply Teflon tape on the threading of each water valve. Connect both hot and cold water line hoses onto each water valve and securely tighten each mounting nut.
-
Page 9: Vessel Faucet Installation Steps
Vessel Faucet Installation Steps Vessel Faucet Installation Installation Steps for Models: CA2H04-CHR, CA2H04-ORB 1. Remove the washer and mounting nut from the faucet. 2. Screw and tighten both hot and cold water line hoses to the faucet. www.dyconnfaucet.com New Kitchen Manual.indd 9 8/8/14 3:49 PM... - Page 10 Vessel Faucet Installation Steps Vessel Faucet Installation Installation Steps for Models: CA2H04-CHR, CA2H04-ORB 3. Install the faucet through the deck hole and screw and tighten the mounting nut onto faucet shank. 4. Apply Teflon tape on the threading of each water valve. Connect both hot and cold water line hoses onto each water valve and securely tighten each mounting nut.
- Page 11 Vessel Faucet Installation Steps Vessel Faucet Installation Installation Steps for Models: CA2H04-CHR, CA2H04-ORB 5. After installing the faucet, remove the aerator assembly and open the hot and cold water supply lines. Check for leaks. Turn on the faucet handle for one minute to flush debris from the faucet.
-
Page 12: Manufacturer Limited Warranty
In any case, Dyconn Faucet is not liable for any amount over and above the purchase price paid for the Product by the original owner/end-user. - Page 13 New Kitchen Manual.indd 13 8/8/14 3:49 PM...
- Page 14 New Kitchen Manual.indd 14 8/8/14 3:49 PM...
