- Page 1 DazeBox (V5.1) Installation, use and maintenance manual ENG - June 2020 - Rev. 1 ...
-
Page 2: Table Of Contents
Summary 1 . Introduction 3 1.1. Warning on information properties 3 1.2. Declaration of conformity 3 1.3. Safety information 3 1.4. Warranty 4 2. Description 5 2.1. Description of the machine ... -
Page 3: Introduction
persons or property. 1.2. Declaration of conformity DazeTechnology srl declares that the DazeBox device complies with the requirements for the release of the ... -
Page 4: Warranty
of intended use) for the period established in agreement with the DazeTechnology srl Sales Office and ... -
Page 5: Description

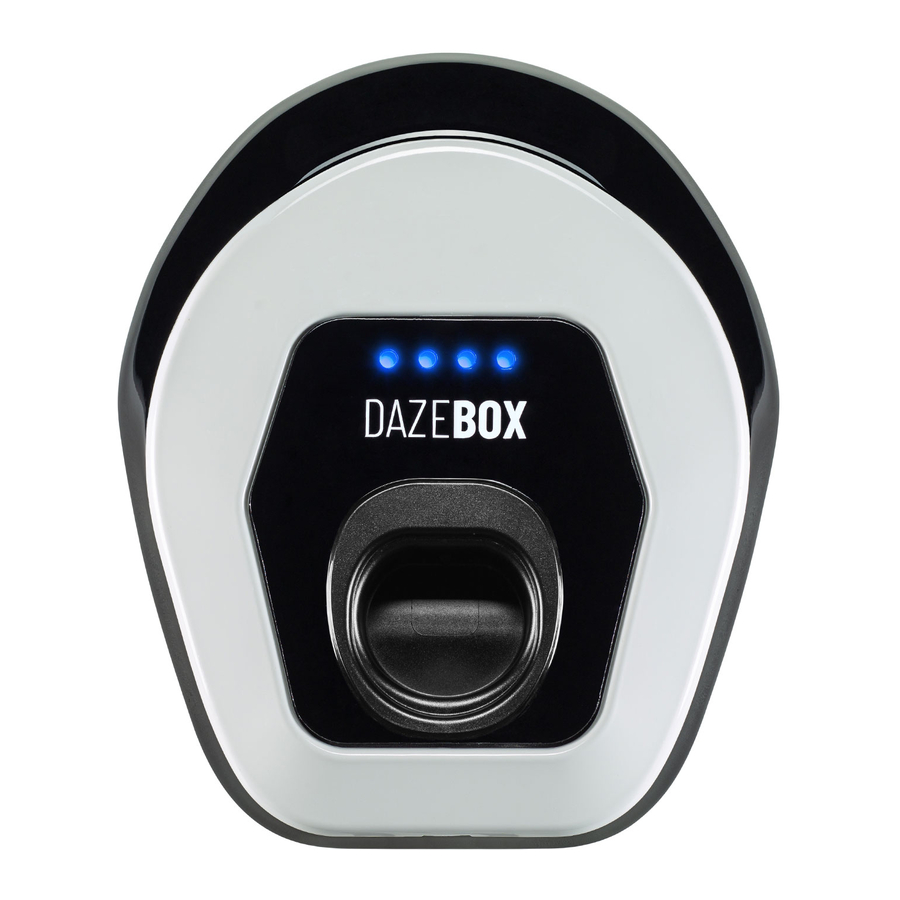

2. Description 2.1. Description of the machine DazeBox is a device for recharging electric vehicles or plug-in hybrids. The charging is carried out in mode 3, in compliance with the IEC / EN 61851-1 standard, which consists in ... - Page 6 Figure 1. DazeBox charging station and its external components. Figure 2. Dimensions of the DazeBox charging station. ENG - June 2020 - Rev. 1 ...
- Page 7 Operating temperature range at 32 A: from -25 ° C to +45° C (without direct exposure to sunlight). Protection degree: IP54 There are three types of DazeBox for three different recharging powers, in accordance with customer ...
-
Page 8: Use
3. Use 3.1. Intended use DazeBox, for indoor and outdoor applications, is suitable for recharging in commercial or private parking of Plug-in electric and hybrid vehicles. The charging station is designed to be installed on a wall or column. ... -
Page 9: Installation
Do not remove safety symbols, danger warnings, cable labels or tags. Warning! If it is raining or snowing and DazeBox is located outdoors, do not open the device. Wait for the charging ... -
Page 10: Preliminary Checks
vehicle and the usual parking direction: especially for Dazebox equipped with a 3 meter long charging cable, ... - Page 11 For Dazebox with 5-meter cable and cable holder refer to figure 5. Figure 5 . D epiction of mounting on the wall with relative dimensions of the DazeBox with 5 meter cable and cable holder. ENG - June 2020 - Rev. 1 ...
-
Page 12: Electrical Connection
(figure 6). Screw the plate to the wall with the screws suitable for the dowels. Figure 6. H oles for the screws with which the DazeBox is fixed to the wall. 4.6. Electrical connection ... - Page 13 The DazeBox device must be permanently connected to the electrical system through its own ▪ differential switch. No other electrical circuits must be connected to this differential switch. ...
- Page 14 cable. Once the shielded bipolar cable has been brought to the DazeBox, pass it through the specific PG shown in ...
- Page 15 in figure 7, select the charging power available at the meter to which the DazeBox has been connected. The ...
- Page 16 Dip switch Power Corrente max Potenza max management PM ON 13,043 PM ON 15,217 PM ON 17,391 PM ON 19,565 PM ON 21,739 PM ON 23,913 PM ON 26,087 PM ON 30,435 Table 6.2. T able for selecting the maximum power available in the house. ...
-
Page 17: Commissioning
● 15-20 seconds in blue and the general status LEDs light up green. ● Perform the initial checks required by local directives and laws in force. Close the DazeBox connection panel cover. ● ● Fit the housing cover. Before starting up the system for the first time, check the effectiveness of the relative safety measure(s) ... -
Page 18: Differential Protection Test
the use of electric current. 5.2. Assistance In case of need for assistance, contact the DazeTechnology Srl Service Department or (after the expiry of ... -
Page 19: Visual Signs And Alarms
6. Visual signals and alarms The LED frame notifies the user of the status of the DazeBox. The colors and statuses are shown in table ... - Page 20 After a correct execution of the deactivation procedure just indicated, there are no particular risks and the machine can be disposed of and set aside or dismantled. ...
-
Page 21: Contact
Daze Technology srl Registered office: Via per Curnasco, 24127, Bergamo, Italy Headquarters: Via Aldo Moro 2c, 24030, Almenno San Bartolomeo (BG), Italy Mail: head@dazetechnology.com Tel: +39 035 1983 1355 Website: www.dazetechnology.com ...
