806 SERIES
Catalina
Treviso
Decorative
Decorative
Lever
Lever
Levier Décoratif
Levier Décoratif
Catalina
Treviso
Palanca
Palanca
Decorativa Estilo
Decorativa Estilo
Catalina
Treviso
Mangueras No Incluidas
A
Roman Tub Faucets
Marielle
Avalon
Decorative
Decorative
Lever
Lever
Levier Décoratif
Levier Décoratif
Marielle
Avalon
Palanca
Palanca
Decorativa Estilo
Decorativa Estilo
Marielle
Avalon
25195-1100
COMPANY
Advertisement
Related Manuals for Price Pfister 806 Series
Summary of Contents for Price Pfister 806 Series

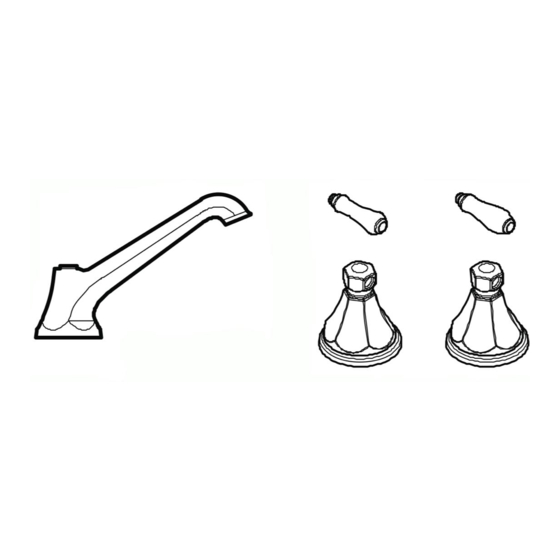

- Page 1 806 SERIES Roman Tub Faucets Decorative Ashfi eld Ashfi eld Catalina Treviso Marielle Avalon Spout Lever Decorative Wave Decorative Decorative Decorative Decorative Lever Handles Lever Lever Lever Lever Poignées en Foime Manettes Manettes Décoratif Levier Décoratif Levier Décoratif Levier Décoratif Levier Décoratif...
