Matrox Monarch EDGE Device Set Up

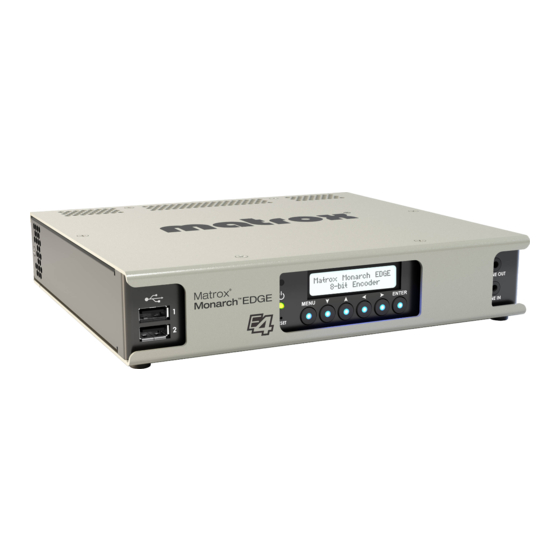

Matrox Monarch EDGE Device Setup

Step 1 -- Connecting and Powering up the Monarch EDGE

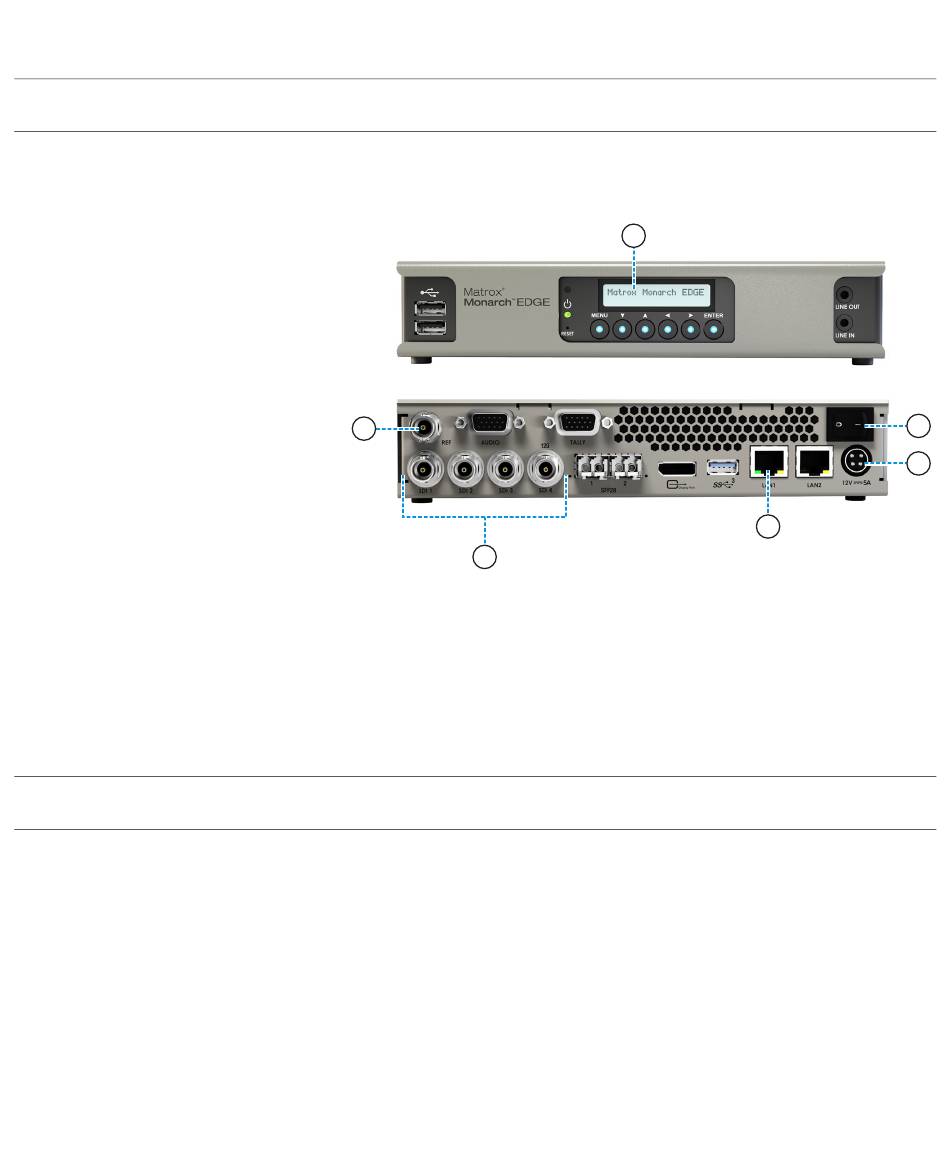

The following illustration and the steps below it describe a typical SDI-based connection scenario.
Note SFP28 connectors are shown for illustration purposes only. They are not included with your device.
Connect the 12V DC power
1
supply to the Monarch EDGE.
Connect LAN 1 to a DHCP-
2
enabled network.
Connect SDI cables to the
3
appropriate connectors. Use SDI 4
for 12G video.
4 Power on the Monarch EDGE.
The LCD screen will display basic
5
device information, such as the IP
address and device serial number.
The REF connector can output a
6
genlock signal to synchronize SDI
sources.
(Optional) You can set the Monarch EDGE to a static IP address from the LCD screen menu:
7
Press Menu > Device Config > Network Settings > LAN 1 > Static IP .
a
Use the arrow buttons to enter the static IP address (DNS server must also be entered in IP address format).
b
Press Enter to finish.
c
Matrox Monarch EDGE is connected to the network and ready to be updated.

Step 2 -- Discovering Monarch EDGE and Updating Firmware

After you have connected and powered up your Monarch EDGE, you may need to update the device firmware.
Before you update
• Make sure you have at least 1 GB of free disk space available.
• Use only one instance of the firmware updater on your network at a time.
• Make sure Microsoft .NET Framework version 4.5.x is installed on your system.
• Make sure you have a DHCP-enabled network, and that your server maintains the IP address of a device
when it reappears on the network after a reboot. If not, assign static IP addresses to your devices.
• Make sure the Control Hub version on your computer matches the firmware version of the Monarch EDGE.
• Close any programs that may be running (such as Control Hub).
6
3
5
2
4
1
