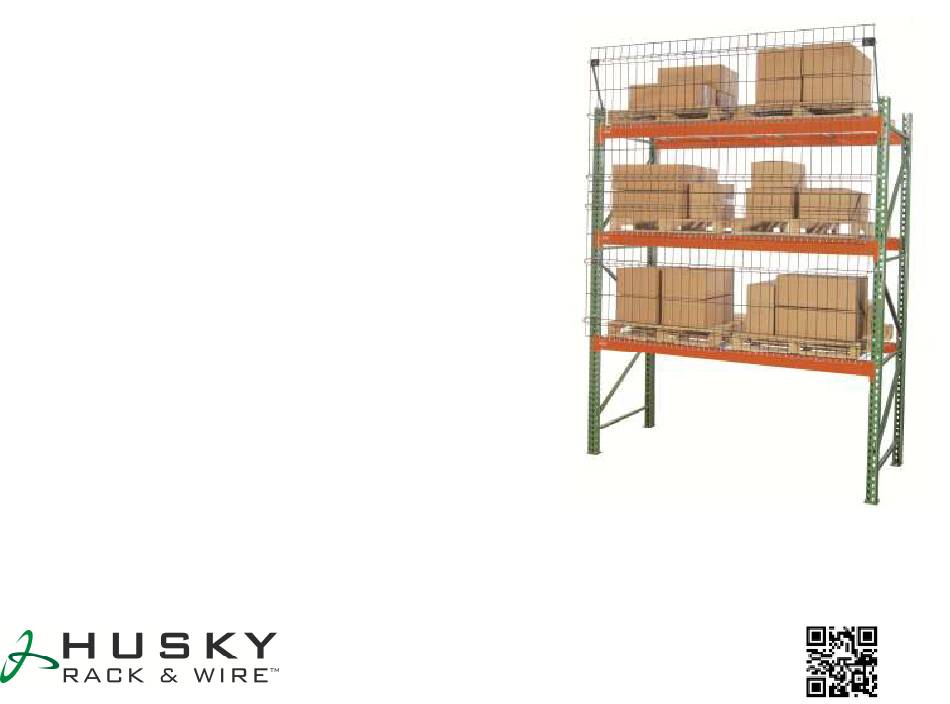

- Page 1 AISLE SHIELD INSTALLATION INSTRUCTIONS 6146 DENVER INDUSTRIAL PARK RD DENVER NC 28037 1-800-438-5629 www.huskyrackandwire.com...
- Page 2 INSTALLATION OF OFFSET MOUNT AISLE SHIELD STEP 1: EYE BOLT ASSEMBLY STEP 1: EYE BOLT ASSEMBLY STEP 1: EYE BOLT ASSEMBLY STEP 1: EYE BOLT ASSEMBLY HARDWARE REQUIRED: FOR 4’ AND 5’ TALL PANELS SIX (6) EYE BOLTS ARE REQUIRED PER PANEL.
- Page 3 INSTALLATION OF OFFSET MOUNT AISLE SHIELD STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK AS SHOWN IN THE PICTURE, INSERT ALL EYE •...
- Page 4 INSTALLATION OF FLUSH MOUNT AISLE SHIELD STEP 1: ATTACH FLAT BRACKETS TO THE PANEL STEP 1: ATTACH FLAT BRACKETS TO THE PANEL STEP 1: ATTACH FLAT BRACKETS TO THE PANEL STEP 1: ATTACH FLAT BRACKETS TO THE PANEL MATERIAL REQUIRED: •...
- Page 5 INSTALLATION OF FLUSH MOUNT AISLE SHIELD STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK STEP 2: ATTACH PANEL TO THE RACK ATTACH THE 3/8” CARRIAGE BOLT TO THE 1”...
- Page 6 STEP 1: ATTACH ANGLE BRACKET AND FLAT BAR ANGLE BRACKET FLAT BAR ATTACH ANGLE BRACKETS TO THE AISLE SHIELD ATTACH FLAT BARS TO THE ANGLE BRACKETS ON PANEL AT THE TOP REINFORCING FLUTES ON EACH EACH SIDE USING 3/8” BOLT AND NUT AS SHOWN SIDE USING ¼”...
- Page 7 NOTE: FOR FLUSH MOUNT RACK GUARD, THE • FLAT BAR IS ATTACHED TO THE POST THAT IS AWAY FROM THE AISLE SHIELD PANEL. FOR OFFSET MOUNT AISLE SHIELD, THE FLAT BAR IS ATTACHED TO THE NEAREST POST TO THE AISLE SHIELD PANEL.
