Apollo PEX Instruction Sheet page 2

PEX
INSTRUCTION SHEET
PEX One Hand Pinch Clamp Fastening Tool

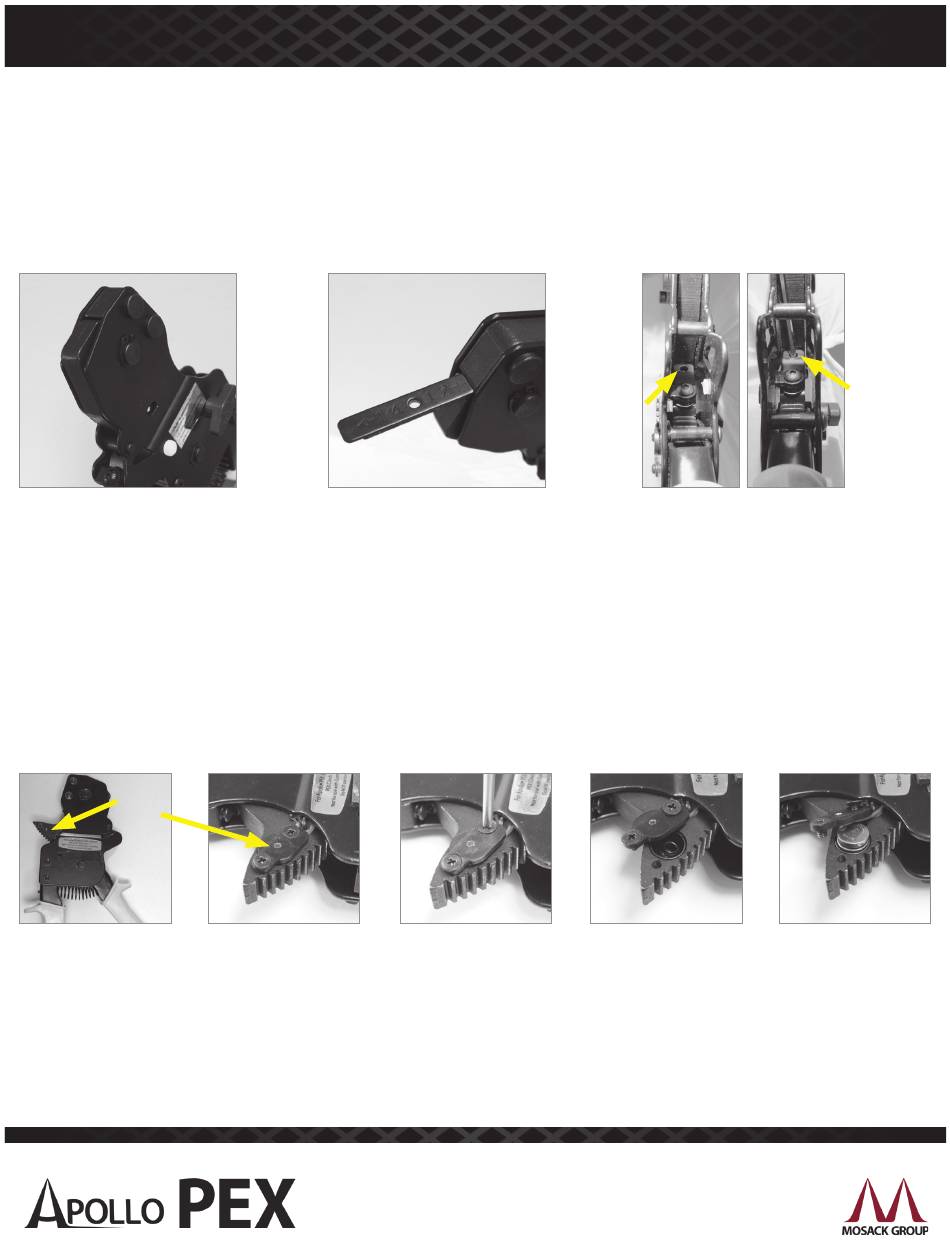

Calibration
1. Ratchet the Pinch Tool to the
closed position until the LED
light comes on.
How to change the LED light batteries:
Battery
Compartment
1. Locate the
LED light battery
compartment.
Apollo PEX tools are pre-calibrated for up to 10,000 uses. After repeated use of this tool, it
may require calibration. A calibration tool is provided with the fastening tool.
2. Use the Calibration Tool to gauge
the jaw gap. The jaw gap should
be between 1.2 mm and 1.4 mm.
If the 1.4 mm side of the gauge
slides into the gap, then the jaw
space is too large. If the 1.2 mm
side of the gauge cannot slide
into the gap, then the jaw space
is too narrow.
2. The battery
compartment
has a plastic
cover attached
with two screws.
3. Remove the
screws and
cover.
is-69PTBJ0010C_03/20/19
Hex Screw
Hole
3. To adjust the jaw gap, locate the
hex screw hole inside the tool. (No
need to take apart the tool to
access the calibration hole.)
Insert the enclosed Allen wrench
into the hole. Turning the wrench
counter-clockwise will cause the
gap to increase. Turning the
wrench clockwise will cause the
jaw gap to decrease.
4. Remove the old
batteries.
Matthews, NC 28105
1.888.229.2874
www.apolloflow.com
69PTBJ0010C
Allen wrench
inside hole
5. Place the new
batteries with the
positive side
facing up.
Replace the
cover and tighten
the screws.
