INSTRUCTION SHEET 69PTKG1096 Quick Pinch Clamp Tool 1. Cut PEX tubing square, leaving a clean, even 2. Slip PEX pinch clamp over tubing and insert 3. Place PEX pinch clamp nub between tool edge. Remove any burrs. fitting. Place pinch clamp 1/8” below edge jaws and ratchet the clamp until the PEX of tubing.
Page 2

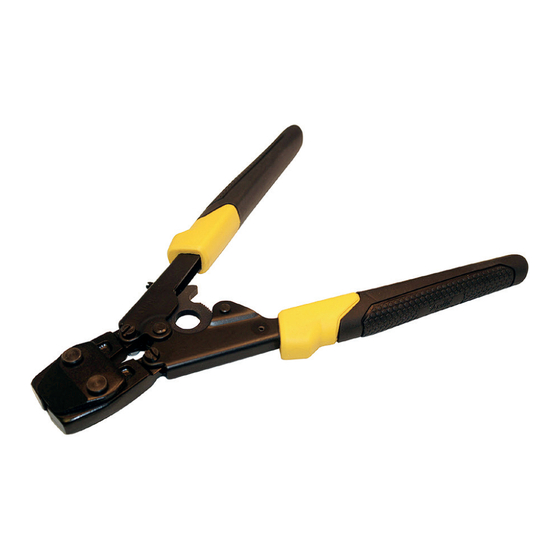

PEX One Hand Pinch Clamp Fastening Tool Calibration Apollo PEX tools are pre-calibrated for up to 10,000 uses. After repeated use of this tool, it may require calibration. A calibration gauge and bar is provided with the tool. 2. Use the Calibration Tool to gauge the jaw gap.
