Apollo PEX Instruction Sheet

PEX
INSTRUCTION SHEET
PEX

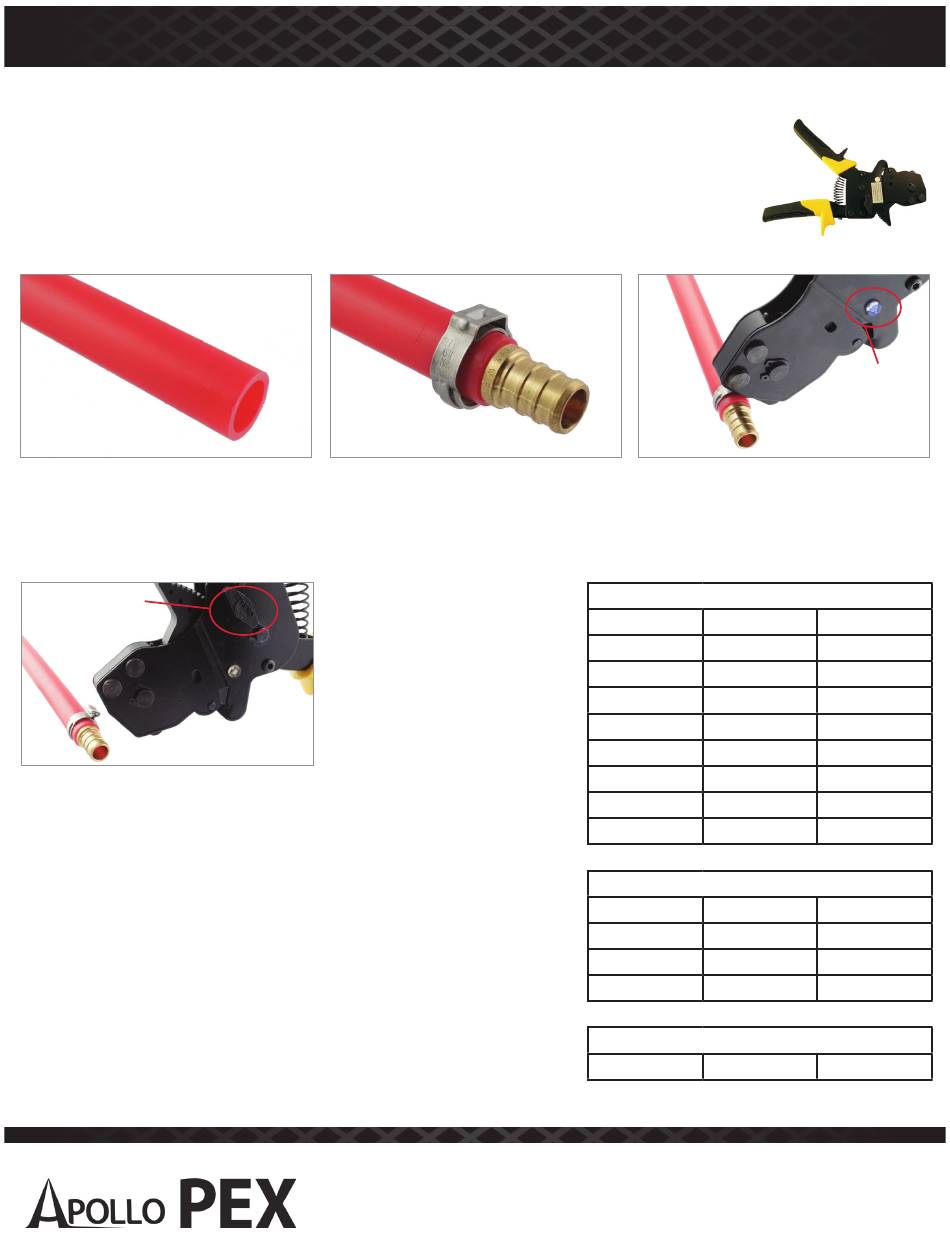

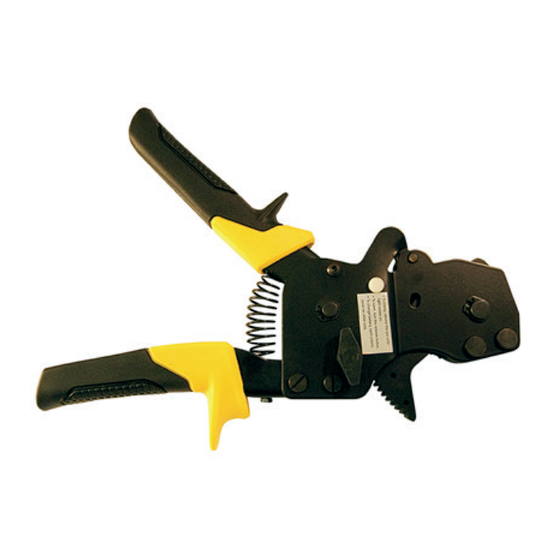

One Hand Pinch Clamp Fastening Tool
1. Cut PEX tubing square, leaving a clean, even
edge. Remove any burrs.
Release Lever
4. To release the Pinch Tool, rotate the release
lever on the side. It is very important to
complete the pinch process before releasing
the tool.
The LED light may not turn on after more than 7 ratchets when installing some 1 in.
pinch clamps. Don't overclamp! Check with specification of pinch clamp manufacturer.
For use with Apollo, Watts , Murray
®
Do not use with Zurn Qickclamp
®
clamps.
2. Slip PEX pinch clamp over tubing and insert
fitting. Place pinch clamp 1/8" below edge
of tubing.
, and Oetiker PEX pinch clamps.
® ®
. Do not use the fastening tool to remove pinch
™
3. Place pinch clamp nub between tool jaws
and ratchet the clamp (approximately seven
times) until the LEDlight comes on. This will
assure that the pinch clamp is fully engaged.
Apollo PEX Pinch Clamps
PXPC3810PK 3/8"
PXPC1210PK 1/2"
PXPC1225PK 1/2"
PXPC12100JR 1/2"
PXPC3410PK
3/4"
PXPC3425PK 3/4"
PXPC34100JR 3/4"
PXPC15PK 1"
PXPC110PK 1"
Apollo PEX Pro Pinch Clamps
PXPRO1210PK
1/2"
PXPRO12100JR 1/2"
PXPRO3410PK 3/4"
PXPRO34100JR 3/4"
LED Battery (Can be purchased at any local retailer)
CR927
Lithium Cell (3V)
69PTBJ0010C
LED Light On
10 Pack
10 Pack
25 Pack
100 Pack Jar
10 Pack
25 Pack
100 Pack Jar
5 Pack
10 Pack
10 Pack
100 Pack Jar
10 Pack
100 Pack Jar
