Xtreme Inverter
1. Introduction
This inverter is a compact inverter designed to power your home appliances or precious
electronics. Its compact size features easy installation and high movability. Besides, its high
surge capability also can handle motor-type loads such as vacuums, small freezers, or drills.
Compared with traditional inverters in the market, this inverter provides two operation modes:
UPS mode and Inverter mode. At UPS mode, the inverter becomes an UPS which can provide
pure power source to PC-related equipment or sensitive devices. At Inverter mode, the inverter
can provide continuous power to general home appliances.
2. Product Overview

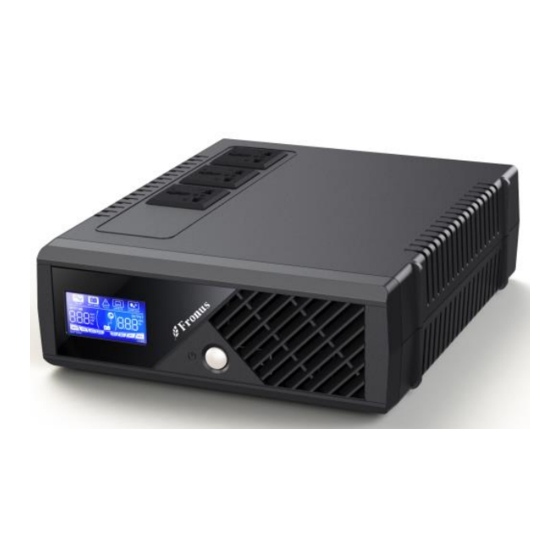

Front View:
Back View & Top View:
Power Switch
LCD Display
AC input
Input breaker
External battery connectors
Charge current selector
Output receptacles
Advertisement
Table of Contents
Related Manuals for Fronus Xtreme Series
Summary of Contents for Fronus Xtreme Series

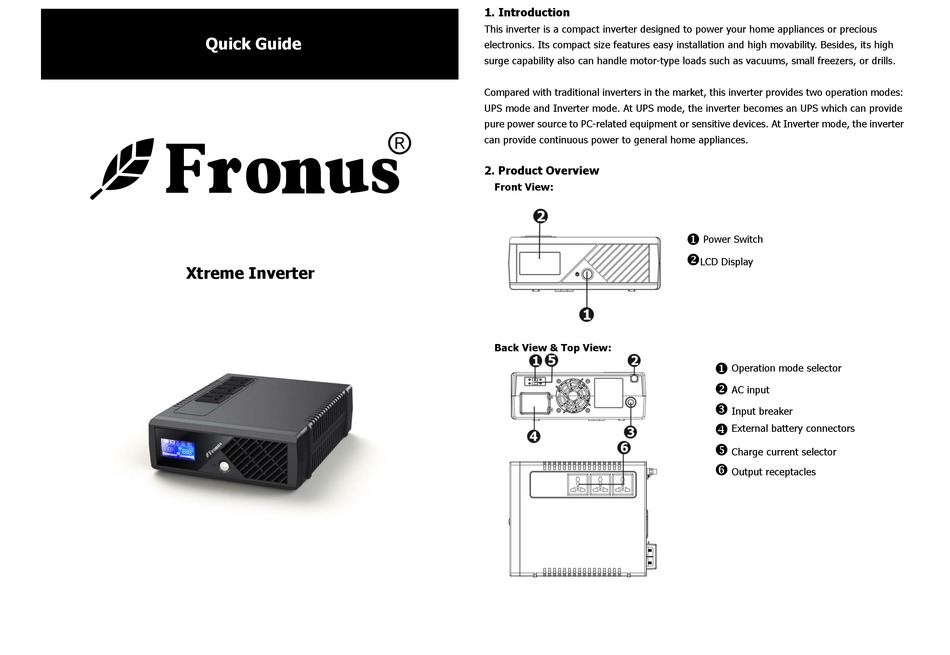

- Page 1 1. Introduction This inverter is a compact inverter designed to power your home appliances or precious Quick Guide electronics. Its compact size features easy installation and high movability. Besides, its high surge capability also can handle motor-type loads such as vacuums, small freezers, or drills. Compared with traditional inverters in the market, this inverter provides two operation modes: UPS mode and Inverter mode.
- Page 2 3. Important Safety Warning (SAVE THESE INSTRUCTIONS) CAUTION! Do not disassemble the inverter. Contact with the qualified service center when Before using the inverter, please read all instructions and cautionary markings service or repair is required. on the unit, this manual and the batteries. WARNING! Provide ventilation to outdoors from the battery compartment.
- Page 3 5. Installation 2) Multiple batteries in series connection(Refer to Fig. 3): All batteries must be NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is equal in voltage and amp hour capacity. The sum of their voltages must be equal to the damaged.
- Page 4 6. Operation Operation Mode Selector Power On/Off a). “UPS”: setting for conventional electrical appliance. Once the inverter has been properly installed, press the power switch to turn on the unit. The If you select this mode, the unit's input utility range will be 170~280Vac as normal home UPS. unit will work automatically in line mode or inverter mode according to input utility power's If the utility is higher or lower than this range, the unit will transfer to inverter mode status.
