Caliber 13576 Assembly Instructions Manual

Caution:
• Read all instructions before assembling or using Sled Wheels. Follow the steps in order.
•
Only use Sled Wheels as intended, following all instructions contained herein for assembly and adjustment.
•
Do not exceed 12 miles per hour when driving a snowmobile with Sled Wheels.
•
The handle is a lever used to raise the skis by pushing down on it; do not lift the handle while Sled Wheels are
engaged on ski. Lift the ski loop instead, if necessary.
•
Relieve the load on the latch before releasing it by pushing the handle and ski to the ground.
•
Always use the safety pin to lock the latch in place.
•
Remove Sled Wheels from the ski when not in use.
Tools needed: Torx T-55 wrench, 5/32" Hex wrench (supplied), #2 Phillips screwdriver
Assembly time: about 20 minutes

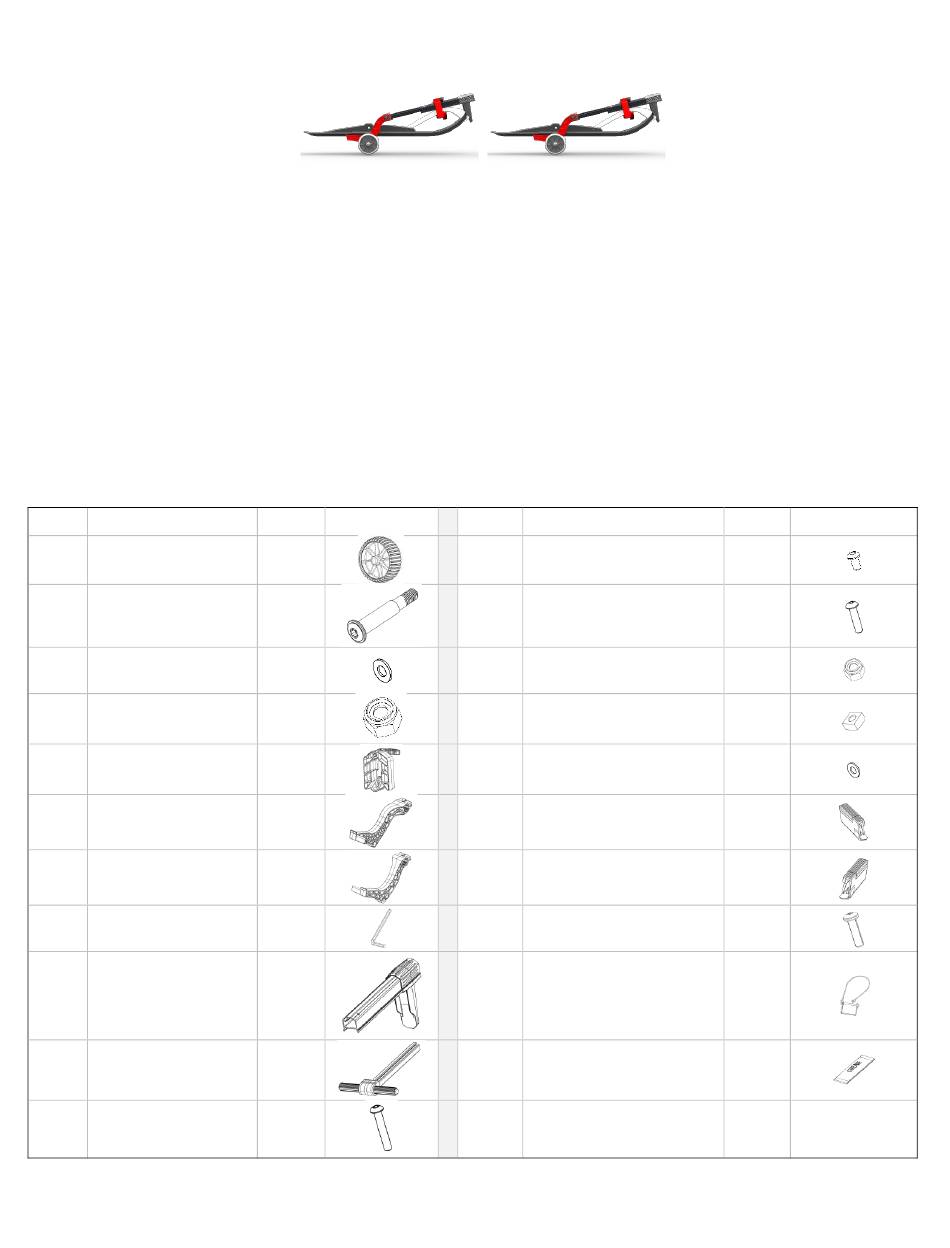

Parts list:
Item Description
1 Wheel
2 Axle bolt
Washer, ½"
3
Nut, Locking,
4
Hex, ½-13
Saddle/Latch
5
assembly
6 Arm, Left
7 Arm, Right
8 Hex Wrench, 5/32
Telescoping
9
Handle
10 T-Handle
BHCS, Hex, 1/4-
11
20 x 1.5"
- Page 1 -
Caliber Sled Wheels Assembly
Instructions for PN 13576 and 13579
QTY
4
4
4
4
2
2
2
1
2
2
2
Assembled on May 19, 2020
Item Description
BHCS, Hex, 1/4-20 x
12
0.5"
BHCS, Hex, 1/4-20 x
13
1.0"
Nut, Locking, Hex,
14
1/4-20
15 Nut, Square, 1/4-20
Washer, ¼"
16
Extender, Finger,
17
Right
18 Extender, Finger, Left
Screw, Thread
19
Forming, #8-16
Safety Pin w/ lanyard
20
and Caution Card
21 Grease, 1cc
Table 1
QTY
2
8
8
4
12
1
1
4
2
1
CI05067, rev E
