0470

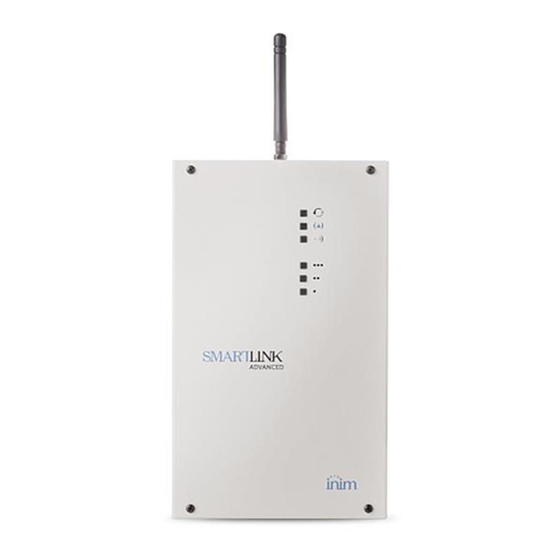

SmartLink-G, SmartLink-GP
GSM Dialler
Programming
Manual
PATENT PENDING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartLink-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INIM Electronics SmartLink-G

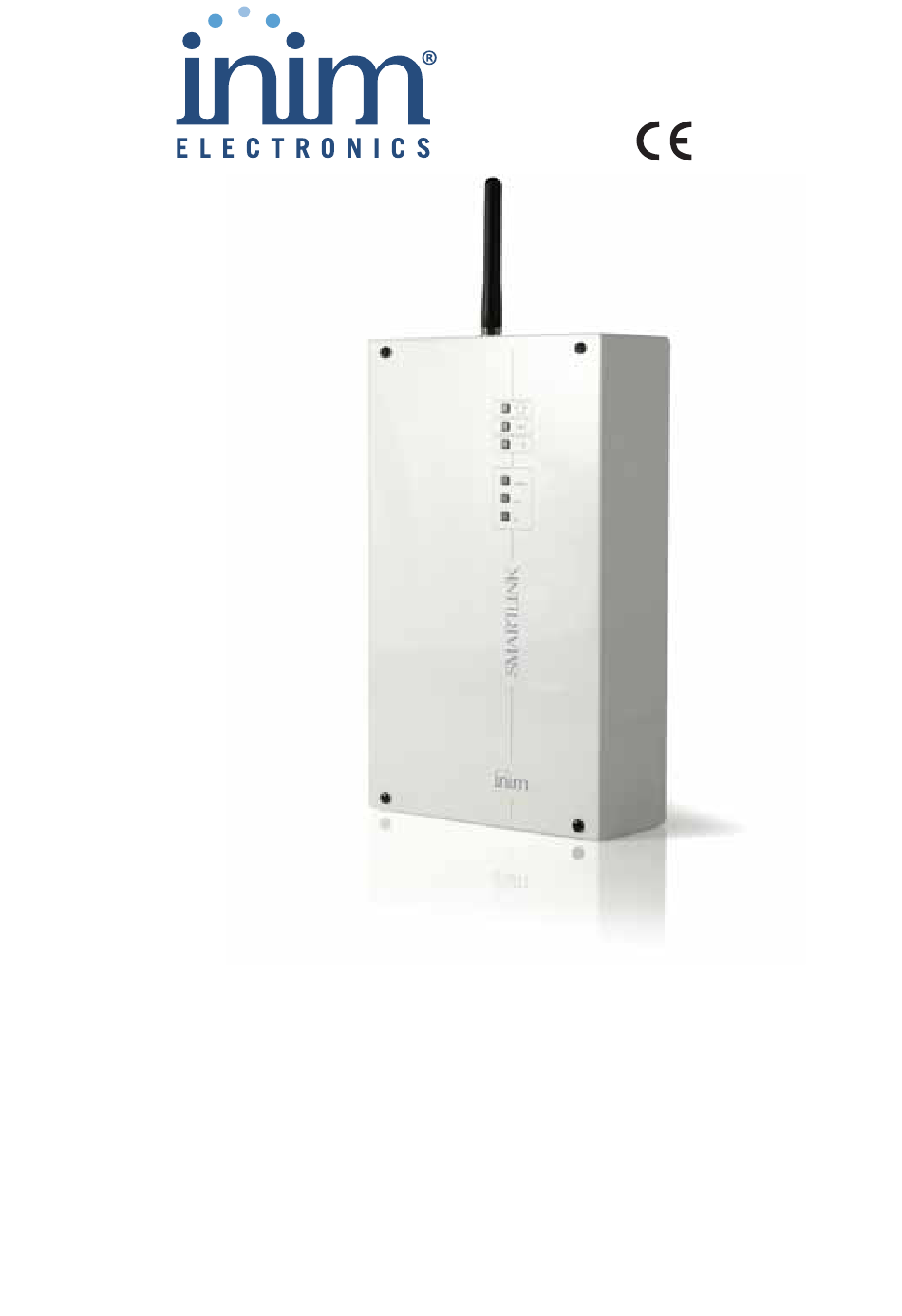

  • Page 1 0470 SmartLink-G, SmartLink-GP GSM Dialler Programming Manual PATENT PENDING...
  • Page 2 Programming manual Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. Directive 1999/5/CE (R&TTE) compliance. Hereby INIM Electronics s.r.l. declares that the...
  • Page 3: Table Of Contents

    Programming manual Table of contents Chapter 1 Overview ........5 Chapter 2 General information.......6 In-box documentation 6 Manual details 6 Addressees 6 Software information 6 Intellectual property rights 6 Key 6 Chapter 3 Programming the SmartLink-GP ..8 Introduction 8 Installing the SmartLeague software 8 SmartLeague software 9 Recommended programming flow 12 Settting up contact data 13...
  • Page 4 Programming manual Appendix C Default settings of the Smartlink-GP60 Appendix D Inhibit events for output control ..61 • Notes.........62...
  • Page 5: Overview

    The Smartlink-G model does not provide these features. This manual describes the Smartlink-GP features and programming process. SmartLink-G users can skip the sections which refer to the advanced features. Refer to Appendix B for a detailed list of the Smartlink-GP advanced features and flexibility-optimized software.
  • Page 6: General Information

    No part of this document may be copied or reproduced unless expressly authorized in writing by INIM Electronics, in particular the parts regarding the device specified in the Installation Manual paragraph 2.8 Device identifier INIM Electronics s.r.l. shall not be responsible for damage arising from improper application or use.
  • Page 7 Programming manual Left, right, behind, above, below: indications using the operator's position in front of the mounted device as the reference point. Pulse output: same as "monostable output" Dialler (phone, SMS, digital): same as "communicator" Qualified personnel: those persons whose training, expertise and knowledge of the respective laws and bylaws regarding service conditions and the prevention of accidents, are able to identify and avoid all possible situations of danger.
  • Page 8: Programming The Smartlink-Gp

    Programming manual Chapter 3 Programming the SmartLink-GP Introduction The SmartLink-GP can be programmed to manage: • Intrusion control • SMS dialler • Contact ID Dialler • Remote appliance control • Voice dialler (optional feature) Note: If the SmartLink-GP is used as a reserve line generator, no programming is required.
  • Page 9: Smartleague Software

    Programming manual Note: You should select the suggested folder. Select 'Continue': file installation initializes, the progress bar will indicate completion. Note: Always complete installation, do not select Cancel during the installation phase. Once installation has been completed, the SmartLeague icon will appear on your desktop (if requested by the user) and in the program list: 3.2.2 Check for the availability of a new version...
  • Page 10 Programming manual 3.3.1 General information SmartLeague is the configuring software of the entire INIM electronics product spectrum. You can configure numerous devices/systems on your office service computer, regardless of the type of device/system. You can configure a device on your service computer, then write the data to the device EEPROM when you get to the customer's premises.
  • Page 11 Programming manual Note: To change the Web address of the page and reconnection interval, select Settings, Application data, Miscellaneous . 3.3.2 Setting up the computer serial output Using the Settings, Application data, Serial Ports menus, check that the selected settings match the serial cable you intend using for the computer to SmartLink-GP connection.
  • Page 12: Recommended Programming Flow

    Programming manual 3.3.5 Status enquiry Connect the computer to the RS232 serial port of the device. Select Control panel, Status enquiry: a window appears showing the IMEI code, SIM data, installed version and battery, GSM network and input statuses. Select Send SMS, to send an SMS Test text from the SmartLink. 3.3.6 Viewing the Events log Connect the computer to the RS232 serial port of the device.
  • Page 13: Settting Up Contact Data

    Programming manual • Activate/Deactivate outputs • Generate constraint Program periodic events Settting up contact data 3.5.1 Settting up outgoing call numbers Figure 1 - Phonebook The SmartLink-GP sends outgoing Contact ID reports, voice message calls and event-generated SMS text messages (direct or diverted) to the 10 phone numbers in the phonebook.
  • Page 14 Programming manual Parameter Description Note Phone number slot Description Description which identifies the event-associated phone number. Phone number including national number and, if necessary, international phone code. Diverted Diverts SMS text messages For example, this messages from enabled phone numbers option will allow you to to the phone number (Divert view which SMS text...
  • Page 15 Programming manual Parameter Description Note Message Message text The underline in the message box indicates the maximum length of the message. 80 characters for messages 1 to 5; 40 characters for messages 6 to 10. 3.5.3 Setting up the voice dialler messages (requires SmartLogos60 voice board) Figure 3 - Voice Message table SmartLink-GP manages eight voice messages to communicate recognized...
  • Page 16 Programming manual Recording voice messages You can record the voice messages by connecting an ordinary touch-tone phone to connector J6 on SmartLogos60 board. Refer to the Installation Manual - paragraph 7.9 Connecting the SmartLogos60 (accessory item). The recording procedure is as follows: Programming the SmartLink-GP...
  • Page 17 Programming manual 3.5.4 Setting up Caller ID codes Figure 4 - Codes table The SmartLeague application uses the installer, user and customer ID codes for SMS or DTMF caller identification (Caller ID) and for SmartLink-GP identification during Contact ID report transmissions to central stations. Parameter Description Note...
  • Page 18: Setting Up The Smartlink Parameters

    Programming manual Setting up the SmartLink parameters This table contains the general parameters of the SmartLink-GP. Parameter Description Note Enable If selected, intrusion the SmartLink-GP will protection operate as an intrusion parameters control panel. The inputs and outputs and associated events will be used for intrusion control management.
  • Page 19 Programming manual Parameter Description Note Enable 'PSTN If selected, it will enable the (land line) Land line down event and down' warning visual signaling on the trouble LED. Enable 'No If selected, it will enable the GSM Service' No GSM Service event and warning visual signaling on the trouble LED.
  • Page 20 Programming manual Parameter Description Note Call all If selected, the device will Contact ID call alternately the two or numbers more numbers associated with an event (to transmit Contact ID reports) until all numbers successfully receive the communication. If not selected, the device will call until one number only successfully receives the...
  • Page 21 Programming manual Parameter Description Note Remove no. Number of digits to be Example: phone digits removed from the prefix of number 0039 02 every phone number dialed 111111, with Remove on the GSM network. no. digits=4 result 02 111111 Add area code Area code consisting of Example: to be applied numbers, '*' and '#' to be...
  • Page 22 Programming manual Parameter Description Note GSM network If selected, all calls Under these priority generated by the voice and circumstances, the ContactID dialler or diverted land line (if available) to reserve line generator will will act as the GSM be diverted to the GSM network reserve line.
  • Page 23 Programming manual Parameter Description Note Simplified the SmartLink-GP will restore If this option is management an event associated output enabled, it will not be of bistable automatically (restore to necessary to program outputs initial status ON or OFF) restoral of outputs when the toggle event clears.
  • Page 24: Programming The Inputs And Outputs - In&Out

    Programming manual Programming the Inputs and Outputs — IN&OUT Figure 5 - Inputs/Outputs table The IN&OUT terminal board provides 5 terminals (5 to 9), each of which can be used as an input or as an output or both. The Use as drop-down menu will allow you to select the operating mode of the terminal.
  • Page 25 Programming manual Input default settings The SmartLink-GP input default settings determine the following conditions: The default settings allow management of the normally closed (or open) contacts and the terminated line (EOL or DEOL), typical of intrusion control panels. See paragraph 3.8 Programming the SmartLink-GP as an Intrusion control panel.
  • Page 26 Programming manual 3.7.3 Inputs/Outputs The IN&OUT terminals can operate as inputs or outputs. For example, during testing, you can command an output then check its status (as an input) and verify the result (i.e. command received or command not received). For example you can: Using DTMF tones, activate output 2 —...
  • Page 27 Programming manual Description Note For pulse outputs only — determines the pulse length. To be used when the output is connected to an external buzzer. In this case, activation generates an audible signal (beep) which persists for the entire ON status (if the output is a pulse output —...
  • Page 28 Programming manual Description Note Enabled when SmartLink-GP is used as an See paragraph 3.8 Intrusion control panel. Programming the SmartLink-GP as an Intrusion control panel. Enabled when SmartLink-GP is used as an See paragraph 3.8 Intrusion control panel. Programming the SmartLink-GP as an Intrusion control panel.
  • Page 29: Programming The Smartlink-Gp As An Intrusion Control Panel

    Programming manual Description Note The button used to calibrate an input and Send the parameters to reduce the effect of loss of component SmartLink-GP before switching off. This is the characteristics. Proceed as follows: only way to make the Connect a calibration resistor (10K, calibration definite! 12K or 15K as required, between IN&OUT terminal concerned and...
  • Page 30 Programming manual SmartLink-GP can operate as an intrusion control panel by simply programming the inputs and outputs accordingly. For example: Sounder In this example the keyswitch arms/disarms the intrusion control panel. During armed status, any status changes on the entrance and/or store room inputs —...
  • Page 31: Associating Incoming And Outgoing Calls With Actions

    Programming manual Description Note The line termination type determines the logic of the intrusion control panel input statuses: If 24h is not selected, only Short-circuit For example, this option and Tamper will be monitored during panel is useful for duress and disarmed status.
  • Page 32 Programming manual only when a feedback ring is required (see paragraph 3.7.3 Inputs/Outputs). In other cases, the call will proceed normally. If Caller ID is disabled, the SmartLink-GP will be unable to identify the caller, therefore, will manage the call as a normal call. Attention: SmartLink-GP can identify these numbers during incoming calls or SMS texts or outgoing calls, on the...
  • Page 33 Programming manual Parameter Description Example Black list - If selected, calls to the For example, you can Outgoing number concerned will be bar outgoing calls to barred. Wildcard can be used 'pay numbers' (e.g. for the first five numbers of "1661212", "899*", the list.
  • Page 34: Programming Event Generated Actions

    Programming manual Parameter Description Example Enable SMS If selected, SmartLink-GP will For example, to allow without user accept SMS text commands the central station code - Out (to activate/deactivate one or operator to bar more IN&OUT outputs) from entrance to the the number concerned premises.
  • Page 35 Programming manual • Send SMS text message • Send Contact ID report • Send voice message • Activate/Deactivate outputs • Constraint and commands The SmartLink-GP manages four status-change events per IN&OUT input (i.e. 20 events) and other pre-set events generated by SmartLink-GP. Note: Among such events are trouble restoral events such as: Low battery restored.
  • Page 36 Programming manual 3.10.1 Delete event programming The event programming can be deleted, for example, if programming errors occur. To perform this operation, select, bottom left, Delete, click-on one or more groups then select Delete: all the selected boxes will be deleted. 3.10.2 Send event-triggered voice message (SmartLogos60 required) Figure 9 - Events table - Voice messages...
  • Page 37 Programming manual Parameter Description Note Phone Check boxes corresponding to See the Call all voice numbers the phone numbers for outgoing numbers option to calls set up in the Phonebook. choose whether the The phone number description message must reach appears when you mouse over only one of the dialed the respective number on the...
  • Page 38 Programming manual 3.10.4 Send an event-triggered Contact ID report Figure 11 - Events table - Contact ID Each event can trigger and send a Contact ID report to a specific phone number. For example, an input zone alarm event to the central station. Parameter Description Note...
  • Page 39 Programming manual Note: The code which allows the central station to identify the system must be entered in the Codes window (refer to paragraph 3.5.4 Setting up Caller ID codes). Setting Contact ID at default Select Default Contact ID bottom left: SmartLink-GP will apply Contact ID default configuration to all events.
  • Page 40 Programming manual 3.10.5 Activate an output in response to an event Figure 12 - Events table - Outputs Each event can activate/deactivate a pulse or bistable output. To allow this, the outputs must be set up beforehand as per the instructions in paragraph 3.7 Programming the Inputs and Outputs —...
  • Page 41 Programming manual Parameter Description Note Check boxes corresponding to Deactivation of a pulse the Inputs/Outputs configured in output ends any the Outputs table. If selected, ongoing pulse signal, they will deactivate the otherwise, it has no respective output. The output effect.
  • Page 42 Programming manual Parameter Description Note GSM network If selected, all outgoing calls (voice If this option is constraint messages and Contact ID reports) selected, the generated by the event will be sent device will be on the GSM network, even when the unable to make land line (PSTN) is working.
  • Page 43: 3.11 Programming Periodic Events

    Programming manual 3.11 Programming periodic events Figure 14 - Programmable events table You can program recurring events and pre-set events. The Events list provides three programmable events: a periodic event (e.g. Send 'All's well' Contact ID report) and two events with pre-set dates (e.g. Send SMS text or voice message 'Maintenance' and/or SIM expiry reminders).
  • Page 44: Remote Control Of The Smartlink-Gp Via Sms Text Messages

    Programming manual Parameter Description Note Expiry event SmartLink-GP will trigger the For example, to send SIM expiry event in SMS text 'SIM accordance with the set date expiry' reminder to and time. the user. NOTE Only for Italian GSM operators: Each time you top up your SIM card credit (using a pre-paid...
  • Page 45 Programming manual number functions (see paragraph 3.9 Associating incoming and outgoing calls with actions). 3.12.2 Sending several commands in one SMS text message Several commands can be included in the same message (maximum 70 characters). A space will separate one command from the other. Example <User Code>...
  • Page 46 Programming manual 3.12.5 Activating an Output <User Code> <OutputDescription_x> ON <User Code> <OutputDescription_y> OFF Example “0001 CourtesyLights ON” Attention: correct format (uppercase/lowercase/ space) for the output description. If the activated output is a monostable output, the 'ON' command will initialize a normal monostable cycle. If the output has been programmed, in the Inputs/Outputs table, to provide a feedback reply, SmartLink-GP will send an SMS text or ring as required.
  • Page 47: Programming The Device Via Sms Messages

    Programming manual Example of SmartLink-GP answer: INIM SmartLink-GP Rev. x.xx: IN x-x-x-x-x ; PSTN aa; GSM aa; PWR aa; SYS aa; <GSM operator> REMAINING CREDIT ee.ee Euro Parameter Description Note Rev. x.xx Installed firmware version IN x-x-x-x-x The input slot (1,2,3,4,5) will Example: IN 2 1 1 4 show the respective status indicates Input...
  • Page 48 Programming manual • set generic parameters • insert/change a number in the phonebook Programming can be online, with the SmartLink On, via SMS messages, or offline, with the SmartLink Off using a mobile phone to program the SIM card. The maximum number of SMS messages you can use depends on the SIM card.
  • Page 49 Programming manual Note: The SMS messages can be sent in any order. If you wish to restore the factory default settings, you must first delete the SMS messages from the SIM card and then short-circuit the pins (refer to paragraph Default settings of the Smartlink-GP).
  • Page 50 Programming manual Parameter Description 0=output 1=output with LED feature Feedback 0=None 1=SMS 2=Rings 3=SMS+ring Note: Refer to paragraph 3.7 Programming the Inputs and Outputs — IN&OUT for the parameter descriptions. 3.13.4 Programming an event SL EV <EventNum> <VoiceNum>,<SMSNum>, <VoiceMsg>,<SMSmsg>,<OUT_ON>,<OUT_OFF>, <PSTNConstraint>,<GSMConstraint>,<ClearCallQueue> Example “SL EV33 0000000001,0000000010,00010100,2,00100,00010,0,0,0”...
  • Page 51 Programming manual Parameter Description PSTNConstraint 0= the event signals will be forwarded through the channel currently in use 1= switches event signals to the PSTN network GSMConstraint 0= the event signals will be forwarded through the channel currently in use 1= switches the event signals to the GSM network ClearCallQueue 0= the event will not effect the calls in the queue...
  • Page 52: Remote Control Of Smartlink-Gp Via Dtmf Tones

    Programming manual Parameter Description Tonecheck Monitors line tone RemoveDigits Number of digits AddAreaCode Prefix to add InstallerCode Installer’s code EnablePSTNanswerphone Enables PSTN answerphone EnableGSManswerphone Enables GSM answerphone DoubleCall Enables Double Call answer NumberofRings Number of Rings Note: For security reasons, the respective SMS message will be deleted automatically from the SIM card after acquisition.
  • Page 53 Programming manual • Activate output • Clear call queue If the Enable GSM answerphone option has been selected, SmartLink-GP will answer incoming DTMF tones on the GSM network. If the Enable PSTN answerphone option has been selected, SmartLink-GP will answer incoming DTMF tones on the land line (PSTN).
  • Page 54 Programming manual 3.14.2 Arm or disarm the system (#1) Enabled only when the Intrusion control feature has been duly programmed. Note: The panel will send a 4 to 8 second feedback ring as confirmation of the performed arm/disarm operation. Programming the SmartLink-GP...
  • Page 55 Programming manual 3.14.3 Input status enquiry (#4) After initializing the menu, type in “#4”: the input reading will return 1 to 4 beeps depending on the input status: Programming the SmartLink-GP...
  • Page 56 Programming manual 3.14.4 Activating outputs (#5) After initializing the menu, type in “#5”: Note: The output will not change status when you press the number key, but when you press # to confirm the operation. If an output has already been associated with one of the events included in Appendix D , it cannot be used as a command outputInhibit events for output control If you attempt to command the output, the device will emit...
  • Page 57: Appendix A Example Wiring Diagram Intrusion Con- Trol

    Programming manual Appendix A Example wiring diagram intrusion control Example wiring diagram intrusion control...
  • Page 58 Programming manual Caption • All resistors @ 15K • Normally-open keyswitch contact • Siren activated by "positive removed" • Device must be Earthed (see terminal 12) Input programming: IO1-IO2 Type: Delayed Balance: DEOL Events 1, 2, 4, 5, 6, and 8 switch output 4 ON Events 3 and 7 switch output 4 OFF Balance: EOL Events 9, 11 and 12 switch output 4 ON...
  • Page 59: Appendix B Features Not Managed By The Smart-Link-G Model

    Programming manual Appendix B Features not managed by the SmartLink-G model Features and settings not provided by the SmartLink-G model The device performs voice and/or digital Land line (PSTN) dialler and land-line (PSTN) answerphone interface functions. Tone check Checks for the dialing tone before dialing a...
  • Page 60 Programming manual Appendix C Default settings of the Smartlink-GP SmartLink-GP default settings: • Credit limit: € 5; • Status message header: “INIM S_LINK”; • All the IN&OUT terminals are bistabile, normally- open outputs. • All events will be saved to the Events log. The following events generate output actions: Enabled Parameters: •...
  • Page 61 Programming manual Appendix D Inhibit events for output control (via DTMF, SMS or recognized caller) If an output in the Events table has been associated with one of the following events, it can be activated/deactivated only by another event and not by DTMF tones, SMS text or recognized caller.
  • Page 62 Programming manual Notes Notes...
  • Page 64 INIM Electronics s.r.l. via Fosso Antico, Centobuchi 63033 Monteprandone, AP - Italy Tel. +39 0735 70 50 07 Fax. +39 0735 70 49 12 email: info@inim.biz www.inim.biz ISO9001:2000 REGISTERED COMPANY DCMPINE0SLINK-R210-20121016...
