INIM Electronics SmartLink-P Installation And Programming Manual

Pstn dialler
Hide thumbs
Table of Contents

Advertisement

Quick Links

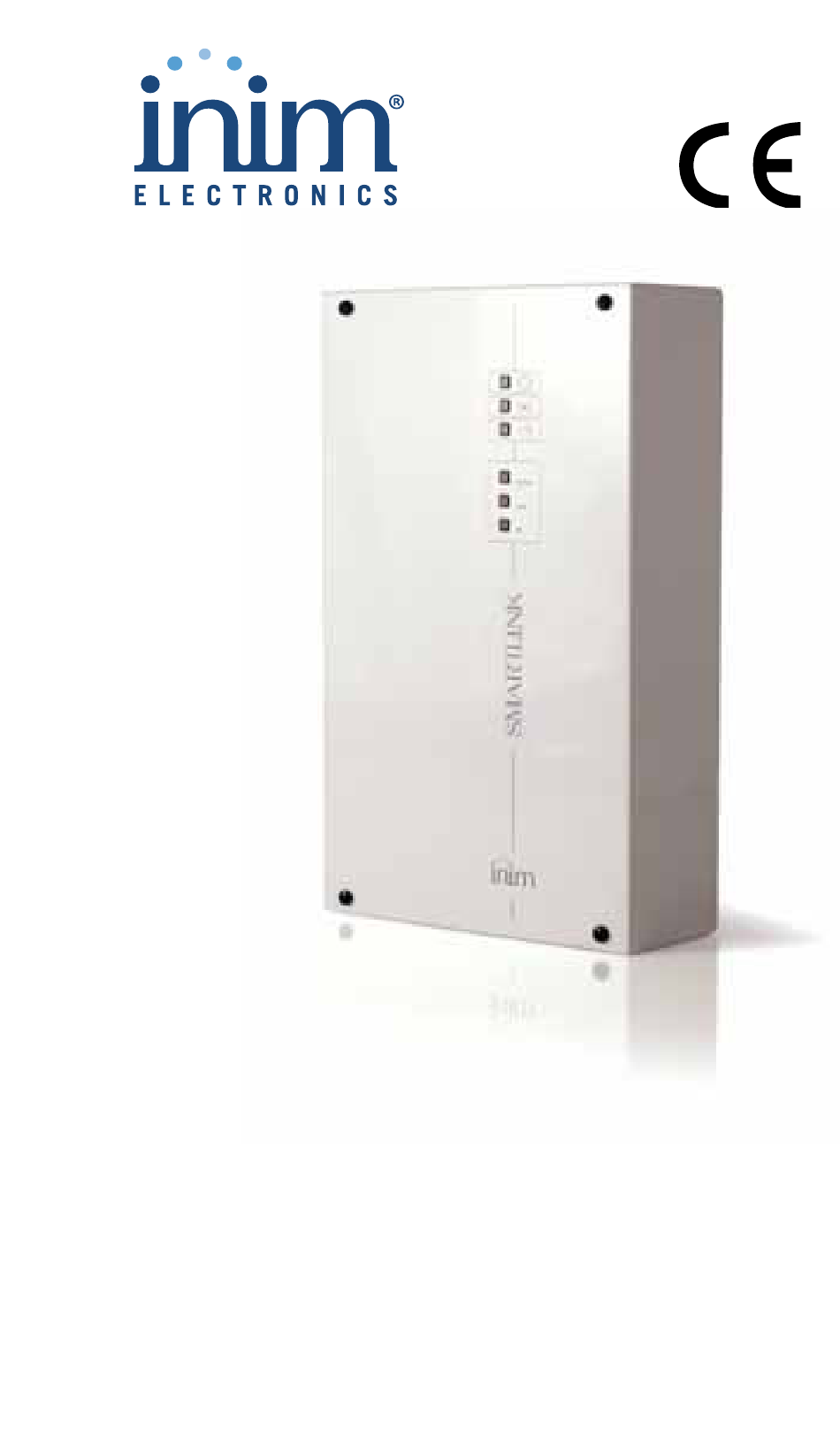

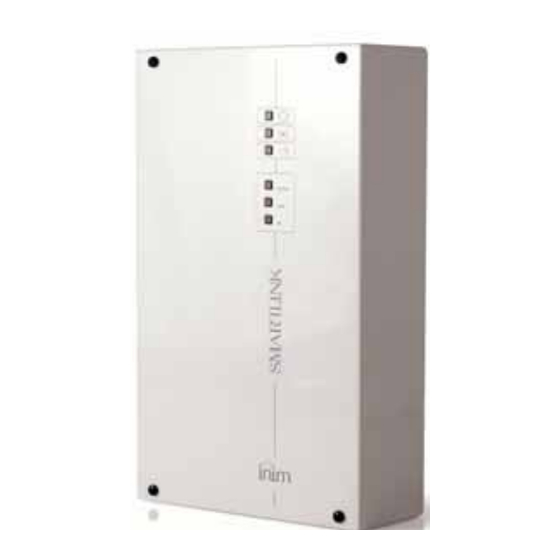

SmartLink-P
PSTN dialler
Installation and
programming
manual
PATENT PENDING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartLink-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INIM Electronics SmartLink-P

Summary of Contents for INIM Electronics SmartLink-P

  • Page 1 SmartLink-P PSTN dialler Installation and programming manual PATENT PENDING...
  • Page 2 Installation and programming manual Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved Directive 1999/5/CE (R&TTE) compliance. Hereby INIM Electronics s.r.l. declares that SmartLink-P is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/CE.

  • Page 3: Table Of Contents

    Installation and programming manual Table of contents Chapter 1 Introduction ........5 Chapter 2 General information ......6 Manual details 6 Addressees 6 Software information 6 Intellectual property rights 6 Conventions 6 Manufacturer's name and address 7 Device identifier 8 Warranty 8 Safety laws 8 Chapter 3...
  • Page 4 Installation and programming manual Programming the SmartLink-P as an intru- sion control panel 36 Programming event generated actions 37 8.10 Programming periodic events 44 8.11 Remote control of SmartLink-P via DTMF tones 45 Appendix A Wiring diagram of an intrusion-control pan- el ...........47...

  • Page 5: Introduction

    Installation and programming manual Chapter 1 Introduction The SmartLink-P is a landline-phone dialer (PSTN). It is capable of sending alarm reports (Contact ID protocol) over the landline to Alarm Receiving Centres and customized voice-messages to contact numbers. This device greatly enhances the security of control panels which are not equipped with built-in dialers.

  • Page 6: General Information

    No part of this document may be copied or reproduced unless expressly authorized in writing by INIM Electronics s.r.l., in particular the parts regarding the device specified in 2.7 Device identifier. INIM Electronics s.r.l. shall not be responsible for any damage arising from improper application or use. Conventions 2.5.1 Glossary and terminology...

  • Page 7: Manufacturer's Name And Address

    The danger warnings indicate that total or partial disregard of the procedure could injure the operator or persons in the vicinity. Manufacturer's name and address INIM Electronics s.r.l. Via Fosso Antico, Centobuchi 63033 Monteprandone (AP) - Italy Tel: +39 0735 70 50 07 Tel: +39 0735 70 49 12 info@inim.biz - www.inim.biz...

  • Page 8: Device Identifier

    • Vandalism • Fair wear and tear INIM Electronics s.r.l. shall, at its option, repair or replace any defective products. Improper use, that is, use for purposes other than those mentioned in this manual will void the warranty. For the full details and conditions regarding the warranty, refer to the purchase order.
  • Page 9 If located in their housings, the electronic circuits of INIM Electronics s.r.l. products are highly immune to electrostatic discharge. Do not expose the circuits to damage by removing the modules unnecessarily from their housings.

  • Page 10: Device Management

    The 1.2 A/h battery is not included. Ensure you have the battery on hand before starting. Inside the box: • SmartLink-P PCB mounted on one metal and three plastic supports • The meta box contains: - 10 resistors @ 15kohm...
  • Page 11 Installation and programming manual Figure 2 - SmartLogos60 and Switching power supply/battery charger (IPS12015DT) Device management...

  • Page 12: Technical Description

    Installation and programming manual Chapter 4 Technical description FSLINK 2.01 01/12/2009 QC Passed Figure 3 - SmartLink-P: motherboard and backplate Description of parts Terminal board LED indicators RS232 serial port connector Buzzer Battery connectors Firmware version label Tamper microswitch SmartLogos 60 voice board connector...

  • Page 13: Technical Specifications

    Installation and programming manual Note: INIM s.r.l. reserves the right to change, replace, in part or entirely, the components not strictly relating to the user and therefore, do not involve the installation process described in Chapter 7 - Installation. Technical specifications Power supply 13.8Vdc ±10% PCB operating current draw...

  • Page 14: Internal Components

    Installation and programming manual Chapter 5 Internal components Terminal board Figure 4 - Terminal board Identifier Description Note +PWR Positive -PWR Negative +AUX Ancillary power 12Vdc 400mA Ground: reference for signals on terminals; Negative power Input/Output terminals 13.8Vdc 150mA current draw for each terminal...

  • Page 15: Led

    A custom power supply to terminals 1 and 2 is available on request. Order code: INIM IPS12015DT. Devices with same electrical specifications can also be used. The SmartLink-P board provides three status LEDs, with the following meanings. Figure 5 - LED...

  • Page 16: Device Features

    • Terminals 5-8 (IO1-IO4) — inputs or outputs for external device connections, such as: front door, audible/visual signaling devices, etc. • Terminal 9 (IO5) — Keyswitch for arm/disarm operations (device not included) A typical configuration of the SmartLink-P functioning as an intrusion-control panel can be found inAppendix A. Device features...

  • Page 17: Digital Dialer (Contact Id)

    Installation and programming manual Digital dialer (Contact ID) The Contact ID dialer feature sends Contact ID reports to alarm receiving centres. Voice dialer The Voice dialer function sends pre-recorded voice messages. The voice dialer function requires installation of the SmartLogos60 voice board (accessory item).

  • Page 18: Installation

    Installation and programming manual Chapter 7 Installation Installation instructions Pull the connection cables through the cable entry, ensure that they do not obstruct operations. Using the wall-mount screws, attach the backplate to the wall. Danger: Care must be taken not to drill in the vicinity of electrical wiring, heating ducts and plumbing.

  • Page 19: Connections

    14 and connect the land line (PSTN) to terminals 15 and 16. During normal operating conditions, terminals 13 and 14 are connected internally to the land line terminals (15 and 16). When the SmartLink-P is about to make a call, it disconnects the devices connected to terminals 13 and 14 and dials the number on the land line (PSTN).
  • Page 20 5.1 Terminal board. 7.2.8 Connecting the RS232 PC serial link Connect the RS232 cable to the respective connector on the SmartLink-P board (table on page 12, ‘[C]’). The cable should be connected to the apparatus as shown in the wiring...

  • Page 21: Settings

    Installation CD containing the software for the respective SmartLink-P firmware. Check the software version in the menu: ?, Help. New versions of the SmartLeague software can be downloaded from the INIM electronics Web address at www.inim.biz. After installing the SmartLeague software, contact the Web address to find out about new versions.

  • Page 22: Smartleague Software

    The parameter settings can be saved to the SmartLeague database and used for service purposes or as a 'standard configuration' for other SmartLink-P devices. During service sessions, you will be able to view and change the SmartLink-P parameter settings. 8.3.1 General information SmartLeague is the programming software of the entire INIM electronics product spectrum.
  • Page 23 Settings, Application data, Miscellaneous . 8.3.2 Setting up the computer serial output Using the Settings, Application data, Serial Ports menu, check that the selected settings match the serial cable you intend using for the computer to SmartLink-P connection. Settings...
  • Page 24 Installation and programming manual 8.3.3 Configuring a new system Create a new solution (select File, New) or open a solution previously used for a similar system (select File, Open) and save it in the name of the new customer with a new account code. Customizing the parameter settings.

  • Page 25: Recommended Programming Flow

    Set up referencing data 8.5.1 Set up the contact numbers Figure 7 - Phonebook The SmartLink-P uses the 10 numbers in the phonebook for the outgoing voice-message calls and Contact ID reports. Note: International numbers must be entered in the following format: +xxyyyyyyyyy (e.g.
  • Page 26 8.5.2 Setting up the voice dialer messages (SmartLogos60 board required) Figure 8 - Voice Message table SmartLink-P manages eight voice messages to communicate recognized events (trouble, input status change, periodic events, etc.) to the numbers in the Phonebook. Note: More than one voice message can be included in a single call.
  • Page 27 Installation and programming manual Note: Voice -message playback over-the-phone starts either after detection of a voice answer from the call recipient or, if the No voice check option is enabled, immediately after the number has been dialed. Recording voice messages You can record the voice messages by connecting an ordinary touch-tone phone to connector J6 on SmartLogos60 board.
  • Page 28 User code This is the user access code See paragraph 8.11 Remote which the user must enter control of SmartLink-P via when sending DTMF DTMF tones. command calls to the SmartLink-P. Customer code This is the code which...

  • Page 29: Setting Up The Smartlink Parameters

    Installation and programming manual Setting up the SmartLink parameters This table contains all the parameters of the SmartLink-P. Parameter Description Note Enable If selected, intrusion the SmartLink-P will operate as protection an intrusion control panel. The parameters inputs and outputs and associated events will be used for intrusion control management.
  • Page 30 (PSTN). machine or modem, you must also enable the Enable double call option. Enable double Useful if the SmartLink-P shares Only if Enable PSTN call the line with other telephone answerphone appliances which pick-up after a option has been programmed number of rings.
  • Page 31 Installation and programming manual Parameter Description Note Confirm call If enabled, the SmartLink-P will consider the voice call successful when the recipient presses "*" on the telephone keypad. Bypass voice If enabled, the SmartLink-P will check start the voice message 5 seconds after dialing the respective contact number.

  • Page 32: Programming The Inputs And Outputs - In&Out

    The Use as drop-down menu will allow you to select the operating mode of the terminal. If you activate an output using DTMF tones over-the-phone (refer to paragraph 8.11 Remote control of SmartLink-P via DTMF tones) , it will be possible to check successful activation by means of the Input/Output feature (refer to paragraph 8.7.3 Inputs/Outputs).
  • Page 33 Installation and programming manual 8.7.2 Outputs The Open-Collector, pulse or bistable outputs can also be programmed to activate the external LEDs or buzzer. In this case, they will operate with specific characteristics. The outputs can be activated by: • events generated by status changes on other outputs or by internal events (for example: land-line down or low battery) •...
  • Page 34 — until standby want the LED to be solid. status is restored). Input – Type Enabled only when the SmartLink-P See paragraph 8.8 is used as an Intrusion control Programming the panel.
  • Page 35 Installation and programming manual Parameter Description Note Resistance You can view the value of the resistance that the SmartLink-P reads on a specific terminal by clicking on the sensible area of the terminal concerned. Calibration The button used to calibrate an...

  • Page 36: Programming The Smartlink-P As An Intrusion Control Panel

    Enable the SmartLink-P intrusion control panel option from the Parameters, Intrusion control parameters table: in this way, input 5 will be set up automatically to manage the keyswitch (normally open). Configure the other four terminals as 'inputs to monitor' and 'outputs to activate'.

  • Page 37: Programming Event Generated Actions

    Programming event generated actions Figure 13 - Events table The Events list is the heart of the SmartLink-P system. The events represent everything the system is capable of recognizing, from external conditions (e.g. input signals) and internal conditions (e.g. low battery).
  • Page 38 20 events) and other pre-set events generated by SmartLink-P (e.g. low battery). If several events occur at almost the same time, SmartLink-P will create a Call queue and will deal with the calls in chronological order. For example, if an alarm is triggered by input (channel) IO1 which is...
  • Page 39 Installation and programming manual 8.9.2 Send event-triggered voice message (SmartLogos60 required) Figure 14 - Events table - Voice messages You can send one or more voice messages to a specific contact number, for example, to warn the recipient that intrusion is occurring is underway. To allow this, the voice messages must be set up as per the instructions in paragraph 8.5.2 Setting up the voice dialer messages (SmartLogos60 board required).
  • Page 40 Installation and programming manual 8.9.3 Send an event-triggered Contact ID report Figure 15 - Events table - Contact ID Each event can trigger and send a Contact ID report to a specific phone number. For example, an input zone alarm event to the Alarm Receiving Centre.. Parameter Description Note...
  • Page 41 Installation and programming manual Setting Contact ID at default Select Default Contact ID bottom left: SmartLink-P will apply Contact ID default configuration to all events. The event default codes are DCS (Digital Communication Standard) international reporting protocol, for example: Protocol...
  • Page 42 Installation and programming manual 8.9.4 Activate an output in response to an event Figure 16 - Events table - Outputs Each event can activate/deactivate a pulse or bistable output. To allow this, the outputs must be set up beforehand as per the instructions in paragraph 8.7 Programming the Inputs and Outputs —...
  • Page 43 If selected, the visual/audible ongoing For example, if you call call signal will be hidden when the want to hide event occurs: SmartLink-P calls to • LED On the Alarm receiving • Start call event Centre during a • End call event robbery.

  • Page 44: Programming Periodic Events

    Maintenance SmartLink-P will trigger the For example, to send a event Maintenance event in 'Maintenance' reminder accordance with the set date and voice message to the time.

  • Page 45: Remote Control Of Smartlink-P Via Dtmf Tones

    See paragraph 8.6 Setting up the SmartLink parameters. If you are making an status enquiry call to SmartLink-P, or you are receiving for example a 'flood alarm' voice call from SmartLink-P, you will automatically access DTMF mode which, in the case of the 'flood alarm' call, will allow you to turn off the water supply at the mains.
  • Page 46 Installation and programming manual 8.11.2 Arm or disarm the system (#1) Press ‘1’ and wait for a feedback beep. If SmartLink has not been programmed as an intrusion control panel, it will emit a negative feedback signal at step 5. of the DTMF sequence. Press ‘1’...

  • Page 47: Wiring Diagram Of An Intrusion-Control Panel

    Installation and programming manual Appendix A Wiring diagram of an intrusion-control panel Wiring diagram of an intrusion-control panel...
  • Page 48 Installation and programming manual Caption • All resistors @ 15K • Normally-open keyswitch contact • Sounder/Flasher activated by "positive removed" • Device must be Earthed (see terminal 12) Input programming: IO1-IO2 Type: Delayed Balance: DEOL Events 1, 2, 4, 5, 6, and 8 switch output 4 ON Events 3 and 7 switch output 4 OFF Balance: EOL Events 9, 11 and 12 switch output 4 ON...

  • Page 49: Appendix B Default Settings

    Installation and programming manual Appendix B Default settings SmartLink-P default settings Settings: • The first 4 terminals (IO1, IO2, IO3, IO4) are input channels. - IO1 and IO2 are programmed to call the first 5 contact numbers in the phonebook, if they close to ground.

  • Page 50: Appendix C Order Codes

    Installation and programming manual Appendix C Order codes Following are the order codes of INIM Electronics s.r.l. products: Code Description DCMIINI0SLINKP Installation and Programming manual IPS12015DT Switching power supply/battery charger (accessory item) Link232F9F9 RS232 link LinkUSB232CONV RS232-USB adaptor SmartLeague Programming software, Windows ambient...

  • Page 51: Notes

    Installation and programming manual Notes: Notes:...
  • Page 52 INIM Electronics s.r.l. via Fosso Antico, Centobuchi 63033 Monteprandone, AP - Italy Tel. +39 0735 70 50 07 Fax. +39 0735 70 49 12 email: info@inim.biz www.inim.biz AZIENDA CERTIFICATA ISO9001:2000 DCMIINE0SLINKP-R100-20091222...
