Summary of Contents for INIM Electronics SmartLink-G

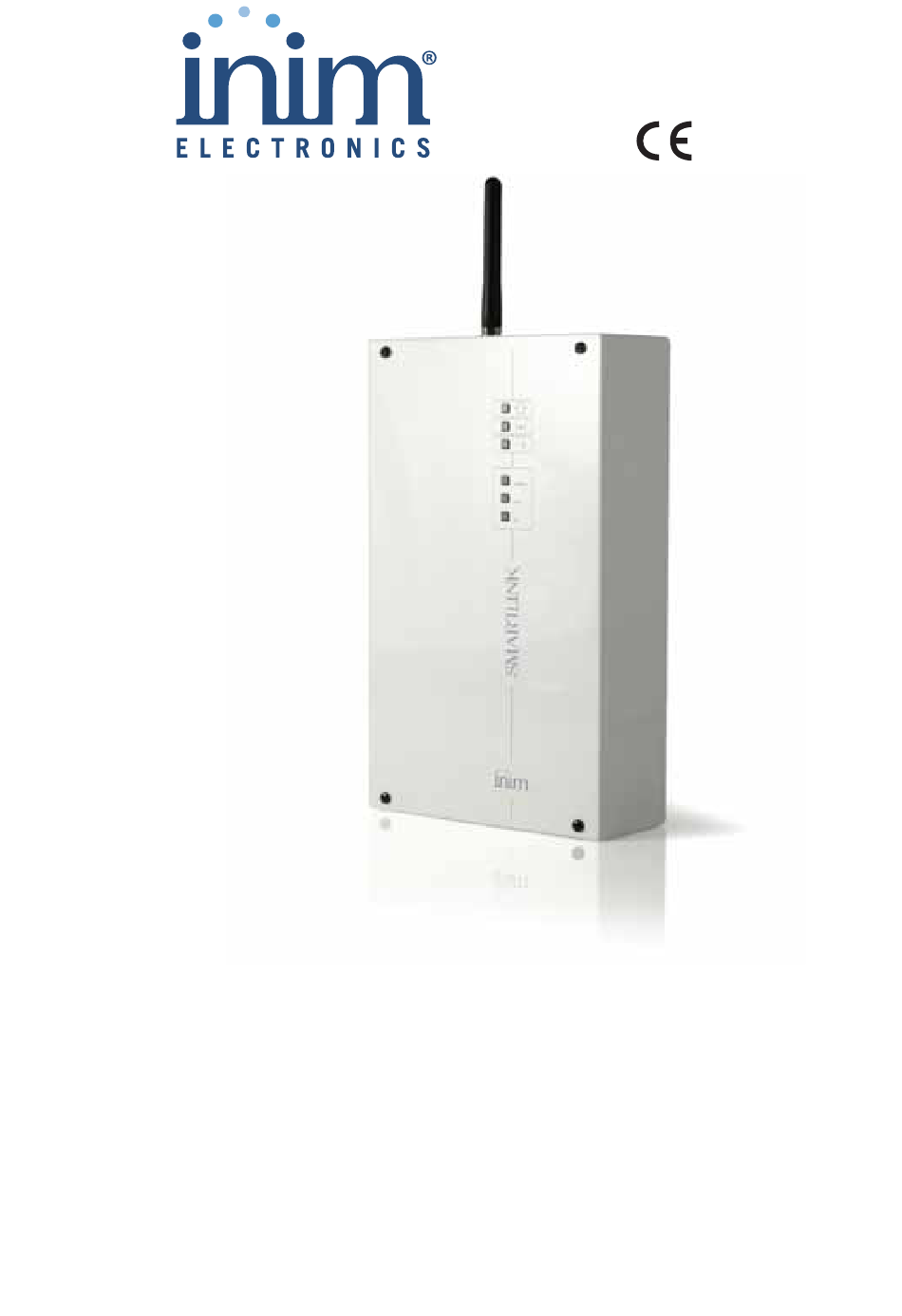

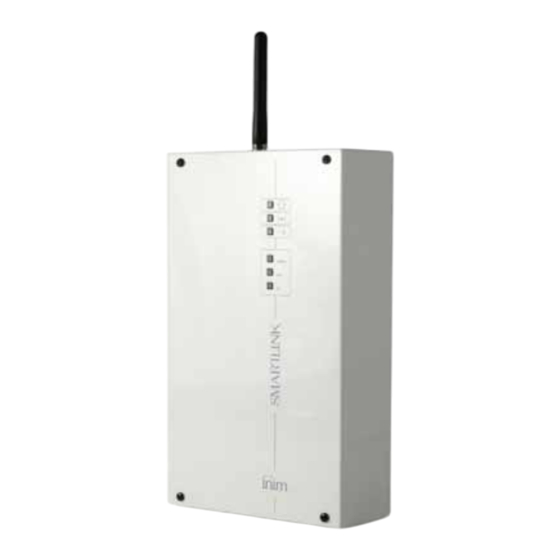

- Page 1 0470 SmartLink-G, SmartLink-GP GSM Dialler Installation Manual PATENT PENDING...
- Page 2 Installation manual Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. Directive 1999/5/CE (R&TTE) compliance. Hereby INIM Electronics s.r.l. declares that the...
-
Page 3: Table Of Contents
Installation manual Table of contents Chapter 1 Introduction .........5 Application and use 6 Other applications 7 Chapter 2 General information.......9 Documentation supplied 9 Manual 9 Addresses 9 Software information 9 Intellectual property rights 9 Key 10 Manufacturer's name and address 10 Device identifier 11 Warranty 11 2.10... - Page 4 Installation manual Connecting telephone devices 28 Earth connection 28 Connecting the tamper microswitch 28 Connecting the IN&OUT terminals 28 Connecting the SmartLogos60 (accessory item) 29 7.10 Inserting the SIM card 29 7.11 Connecting the DC power 29 7.12 Connecting an ancillary power supply 30 7.13 Connecting the RS232 PC serial link 30 7.14...
-
Page 5: Introduction
The Smartlink-G model does not manage these features. This manual describes the Smartlink-GP features and programming process. SmartLink-G users can skip the sections which refer to the advanced features. Refer to Appendix A for a detailed list of the extra features provided by Smartlink-GP and respective programming process. -
Page 6: Application And Use
Installation Manual Application and use The SmartLink-GP device described in this manual is a reserve telephone line generator. GSM network Figure 1 - Reserve telephone line In the event of land line trouble (PSTN line down) the Smartlink-GP will switch all calls to the GSM network (simulated-line mode). This operating mode will not affect any of the connected devices. -
Page 7: Other Applications
Installation Manual The Smartlink-GP provides a series of optional features, some of which require accessory boards: • Intrusion control • Operations manager (e.g. sends calls, output commands) generated by internal events (e.g. low battery) or external events (e.g. input status changes, received calls, received SMS text messages) •... - Page 8 Installation Manual GSM network GSM network Detector Figure 3 - Intrusion panel feature - digital telephone dialler (Contact ID) - land line (PSTN) and GSM network network Voice message Figure 4 - Operations manager in response to external events - SMS dialler- Voice dialler (optional feature) Introduction...
-
Page 9: General Information
No part of this document may be copied or reproduced unless expressly authorized in writing by INIM Electronics, in particular the parts regarding the device specified in 2.8 Device identifier. INIM Electronics s.r.l. shall not be responsible for damage arising from improper application or use. -
Page 10: Key
The danger warnings indicate that total or partial disregard of the procedure could injure the operator or persons in the vicinity. Manufacturer's name and address INIM Electronics s.r.l. Via Fosso Antico, Centobuchi 63033 Monteprandone (AP) - Italy Tel: +39 0735 70 50 07 Fax: +39 0735 70 49 12 info@inim.biz - www.inim.biz... -
Page 11: Device Identifier
Year of manufacture: 2012 Warranty INIM Electronics s.r.l. warrants the original purchaser that for a period of 24 months from the date of production, the product shall be free of defects in materials and workmanship. The warranty applies only to defects in parts and workmanship relating to normal use. - Page 12 If located in their housings, the electronic circuits of INIM Electronics products are highly immune to electrostatic discharge. Do not expose the circuits to damage by removing the modules unnecessarily from their housings.
-
Page 13: Device Management
Installation Manual Chapter 3 Device management Shipping Once the device has been properly packed and put into cartons, care must be taken to avoid accidental damage during transport. The cartons should be placed in such a way as to avoid knocks and falls, and special care must be taken to protect the devices from extreme heat and/or cold. - Page 14 Installation Manual Figure 6 - SmartLink-GP PCB with antenna The following accessory items must be ordered separately (see Appendix B for the order codes): • SmartLogos60 voice board (see Figure 16 - Connecting the SmartLogos60). • DC power supply • SmartLink-REM-ANT remote indoor antenna Figure 7 - SmartLogos60 voice board, power supply, SmartLink-REM-ANT remote indoor antenna (the components in the figure are not in real size)
-
Page 15: Technical Description
Installation Manual Chapter 4 Technical description Figure 8 - SmartLink-GP PCB Main components Terminal board LEDs RS232 serial port connector Buzzer Antenna connector Microchip with firmware version label Tamper microswitch SmartLogos 60 voice board connector SIM card holder Chapter 5 - Internal devices provides an in-detail description of the main components. -
Page 16: Technical Specifications
Installation Manual Note: INIM s.r.l. reserves the right to change, replace, in part or entirely, the components not strictly relating to use and which, do not involve the installation process described in Chapter 7 - Installing the SmartLink-GP. Technical specifications DC power 13.8 Vdc ±10% PCB operating current draw... -
Page 17: Internal Devices
Installation Manual Chapter 5 Internal devices Terminal board Figure 9 - Terminal board Identifier Description Notes +PWR Positive power terminal -PWR Negative power terminal +AUX Ancillary 12Vdc 400mA Ground: reference for signals on terminals; DC power negative Input/Output 13.8Vdc terminals 150mA sink each terminal Internal devices... - Page 18 Installation Manual Identifier Description Notes OPEN Tamper microswitch 13.8Vdc [G] terminals — see 100mA Figure 8 - SmartLink-GP PCB. To be connected to the mains earth. To be connected to up to 4 telephone devices which access devices connected the telephone line in parallel (e.g.
- Page 19 Installation Manual 5.1.2 IN&OUT Input/Output terminals Terminals 5 to 9 can be configured as input terminals or output terminals or both. Note: For details regarding the configuration of the terminals, refer to the Programming manual. Terminals used as inputs Three threshold values can be applied thus each input can be associated with four statuses.
-
Page 20: Status Leds
Installation Manual During the transition from one status to another, it is possible to activate one of the following actions: • send an SMS text message • call a Central Station • send a recorded message • activate an alarm sounder •... - Page 21 Installation Manual Colour Indicates Status Yellow Smartlink - On: SmartLink is armed arming status - 1750 mS ON and 250mS OFF: SmartLink is armed and is dealing Communication with a call status - 1750 mS OFF and 250mS ON: SmartLink is disarmed and is dealing with a call - Off: SmartLink is disarmed no ongoing calls.
-
Page 22: Device Features
Installation Manual Chapter 6 Device features Note: See also “Other applications” at page 7. Note: For the programming procedures, refer to the Programming menu. Besides functioning as a reserve-line generator, this device also provides the following features: • Intrusion control - via land-line (PSTN) and GSM —... -
Page 23: Intrusion Control
Installation Manual Intrusion control Figure 11 - Terminal board The intrusion control feature uses the IN&OUT terminals, as follows: • Terminals 5-8 (IO1-IO4) — inputs or outputs for external device connections, such as: front door, siren, etc. • Terminal 9 (IO5) — Keyswitch for arm/disarm operations (not supplied). Appendix A in the Programming manual, provides a typical wiring diagram of the SmartLink-GP intrusion panel feature. -
Page 24: Remote Control Via Dtmf
Installation Manual Remote control via DTMF This function manages commands entered at remote DTMF telephone keypads. Accepted commands: • Input status enquiry • Activate outputs • End call • Clear call queue • Arm and disarm the intrusion panel feature Caller ID This feature allows GSM network calls to: •... -
Page 25: Installing The Smartlink-Gp
Installation Manual Chapter 7 Installing the SmartLink-GP Wall mounting Figure 12 - Wall mounting • Pull the wires through the wire entry on the backplate, be sure not to obstruct the components. • Using the anchor screws, attach the backplate to the wall. Danger: Care must be taken not to drill in the vicinity of electrical wiring, heating ducts and plumbing. -
Page 26: Mounting The Antenna
Installation Manual Mounting the antenna Figure 13 - Mounting the antenna • Remove the antenna from the plastic bag. • Remove the nut and washer from the antenna. • Pass the antenna connector wire through the wire entry on the top of the back box and fit the antenna into its location, as indicated in the figure. -
Page 27: Mounting The Remote Antenna
Installation Manual Mounting the remote antenna Figure 15 - Mounting the remote antenna — SmartLink-REM- If you are mounting the SmartLink in a placement with insufficient GSM signal strength, you can substitute the in-box attenna with a SmartLink- REM-ANT remote attenna (see Appendix B ). This item must be ordered separately. -
Page 28: Connecting The Land Line (Pstn)
Installation Manual Connecting the land line (PSTN) Connect the land line (PSTN) to terminals 15 and 16. Connecting telephone devices Connect the telephones devices which will access the reserve line to terminals 13 and 14 (up to four telephone devices can be connected). Danger: Up to 100Vdc may be applied to terminals 13 and 14 during the ring phase. -
Page 29: Connecting The Smartlogos60 (Accessory Item)
Installation Manual Connecting the SmartLogos60 (accessory item) Figure 16 - Connecting the SmartLogos60 Insert the SmartLogos60 connector into the respective connector on the PCB. 7.10 Inserting the SIM card Figure 17 - SIM card Insert the SIM card into its holder after deactivating its PIN code. Attention: Any numbers and/or SMS text messages previously saved to the SIM card may be deleted when it is... -
Page 30: Connecting An Ancillary Power Supply
Installation Manual Attention: To guarantee proper operation, connect a 12V-1.2Ah battery to the Red wire (1) and the Black wire (2), as indicated in the following figure. Be sure the polarity is correct. Figure 18 - Connecting the battery 7.12 Connecting an ancillary power supply The device provides a protected 12V power -supply source (terminal 3). - Page 31 Installation Manual The cable should be connected to the device as shown: SmartLink-GP end PC end DB9F connector DB9F connector SmartLink-GP end PC end DB9F connector DB25F connector Note: The RS232 link is a custom accessory item. Order code: LINK232F9F9. If your PC does not have a RS232 port but has a USB, use an RS232-USB adaptor.
-
Page 32: Dc Power
Installation Manual 7.14 DC power Once the installation has been completed, power up the device. 7.15 Closing the casing Using the screws (supplied), secure the frontplate in place. Be sure that the battery is not in the way of the screws. 7.16 Initializing phase On first power up, the device will perform self-diagnosis. -
Page 33: Appendix A Features Not Managed By The Smart-Link-G Model
Installation Manual Appendix A Features not managed by the SmartLink-G model Features and programming not provided by the SmartLink-G model Performs voice and/or digital dialler and Land line (PSTN) interface land-line (PSTN) answerphone functions. Telephone tone check Checks for the dialling tone before dialling a number. -
Page 34: Appendix B Order Code
Installation Manual Appendix B Order code Following are the order codes of INIM Electronics s.r.l. products: Code Description DCMIINE0SLINK Installation manual DCMPINE0SLINK Programming manual IPS12015DT Ancillary switching power supply/battery charger Link232F9F9 RS232 link LinkUSB232CONV RS232-USB link with adaptor SmartLeague Programming software, Windows ambient... - Page 36 INIM Electronics s.r.l. via Fosso Antico, Centobuchi 63033 Monteprandone, AP - Italy Tel. +39 0735 70 50 07 Fax. +39 0735 70 49 12 email: info@inim.biz www.inim.biz ISO9001:2000 REGISTERED COMPANY DCMIINE0SLINK-R210-20121016...
