(Gas Tank Not Included)
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
This appliance is NOT for frying turkey.
Please keep this instruction manual for future reference
Customer Service: 1 – 888 – 922 – 2336, 8:00am to 5:00pm, Central Standard Time,
Customer Service: 1 – 888 – 837 – 1380, 8:00am to 5:00pm, Pacific Standard Time,
TF2091401-OG ENG

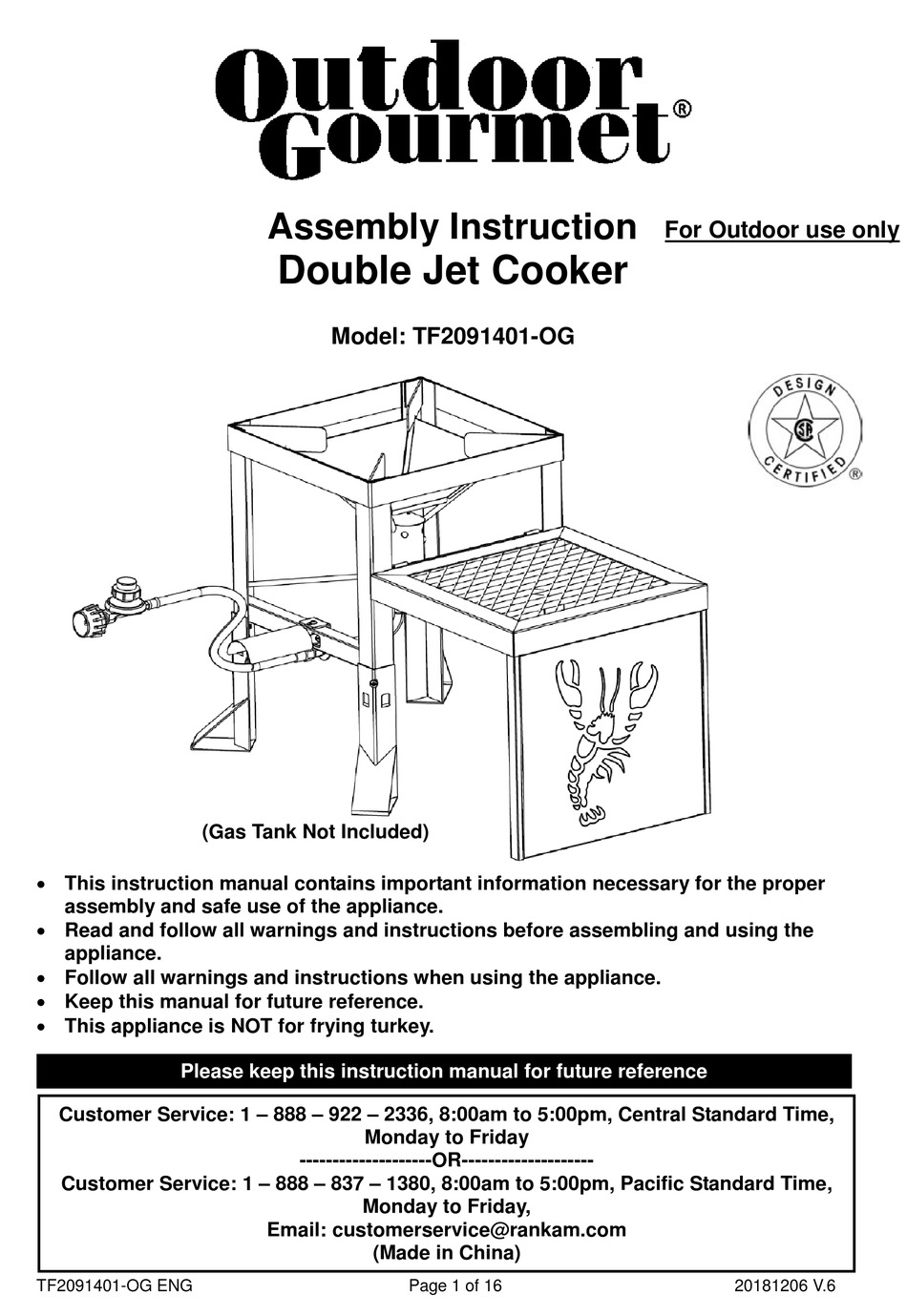

Assembly Instruction

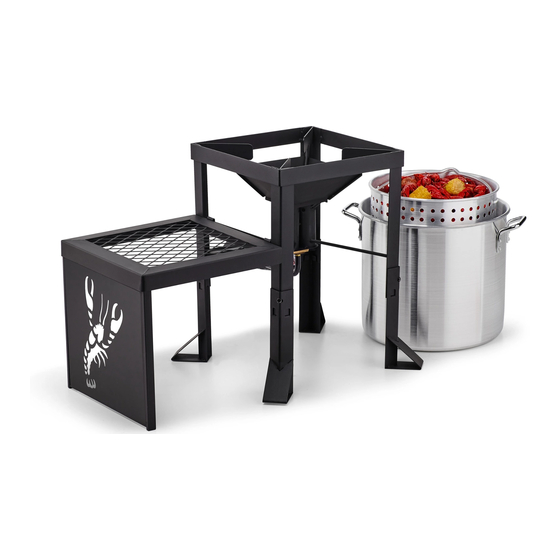

Double Jet Cooker
Model: TF2091401-OG
Monday to Friday
--------------------OR--------------------
Monday to Friday,
Email: customerservice@rankam.com
(Made in China)
Page 1 of 16
For Outdoor use only
20181206 V.6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Outdoor Gourmet TF2091401-OG
Summary of Contents for Outdoor Gourmet TF2091401-OG
- Page 1 Assembly Instruction For Outdoor use only Double Jet Cooker Model: TF2091401-OG (Gas Tank Not Included) This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance.
- Page 2 Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. TF2091401-OG ENG Page 2 of 16 20181206 V.6...
-
Page 3: Prop 65 Warning
Warning: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. TF2091401-OG ENG Page 3 of 16 20181206 V.6... - Page 4 When cooking, the appliance must be on a level, stable NONCOMBUSTIBLE SURFACE in an area clear of combustible material. An asphalt surface (blacktop) is not acceptable for this purpose. TF2091401-OG ENG Page 4 of 16 20181206 V.6...
- Page 5 10°C). If it does not function properly, obtain a replacement thermometer specified by us before using the appliance. The minimum environmental temperature of this appliance is -21°F (-29°C). Do not use this appliance under above rated temperature. TF2091401-OG ENG Page 5 of 16 20181206 V.6...
- Page 6 A frosted regulator indicates gas overfill. Immediately close LP tank valve and call LP gas dealer for assistance. Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice. TF2091401-OG ENG Page 6 of 16 20181206 V.6...
- Page 7 5. Hold regulator, insert nipple (B) into LP tank valve. Hand tighten coupling nut, holding regulator in a straight line (C) with LP tank valve so as not to cross thread the connection. TF2091401-OG ENG Page 7 of 16 20181206 V.6...
- Page 8 Order new parts by giving the serial number, number and name of items needed to the Customer Service Center at 1-888-837-1380. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank test by turning hand wheel clockwise. TF2091401-OG ENG Page 8 of 16 20181206 V.6...
- Page 9 5 minutes, try again. If the burner does not ignite with valve open OR if burner flame is goes out after lighting, gas will continue to flow out of the burner and could accidentally ignite with risk of injury. TF2091401-OG ENG Page 9 of 16 20181206 V.6...
- Page 10 Check burner flames regularly according to reference diagram. Clean all cooking surfaces of vessels, aluminum pots and pan with warm, soapy water and a nylon cleaning pad to avoid oxidation, corrosion and rusting. TF2091401-OG ENG Page 10 of 16 20181206 V.6...
- Page 11 Replace corroded or damaged burners that would emit excess gas. Cooking surfaces, pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. Product Diagram TF2091401-OG ENG Page 11 of 16 20181206 V.6...
- Page 12 Rain Cover 1 pc Thermometer 1 pc Side Table 1 pc Lighter Arm 1 pc Hardware List Item No. Item Name Diagram M6 x 30 Bolt M6 x 10 Bolt M6 Flange Nut TF2091401-OG ENG Page 12 of 16 20181206 V.6...
- Page 13 Nut (C) per following illustration. Step 2. Attach the Regulator and Burner Assembly (5) to the main stand by using 2 pcs of Bolt (B) and 1 pc of Nut (C) per following illustration. TF2091401-OG ENG Page 13 of 16 20181206 V.6...
- Page 14 Step 3. Attach the Hose Heat Shield (4) to the main stand by using 1 pc of Bolt (B) and Nut (C) per following illustration. Step 4. Attach the Side Table (8) to the main stand for following illustration. TF2091401-OG ENG Page 14 of 16 20181206 V.6...
- Page 15 The water should be filled into the vessel until the thermometer submerged at least 2.75”. Reposition thermometer as needed for cooking. Continue to use thermometer until burner is turned off. TF2091401-OG ENG Page 15 of 16 20181206 V.6...
-
Page 16: Limited Warranty
1 – 888 – 837 – 1380, 8:00am to 5:00pm, Pacific Standard Time, Monday to Friday RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong TF2091401-OG ENG Page 16 of 16 20181206 V.6...
