2: Setup; Dsmc² Camera Setup - Gates DEEP WEAPON Upgrade Setup, Use And Care Manual

For using with red dsmc2 cameras

Table of Contents

2: Setup

The instructions that follow are exceptions to the those found in the DEEP DRAGON

SU&C Guide.

DSMC² Camera Setup

After stripping down the camera (per DEEP DRAGON SU&C Guide):

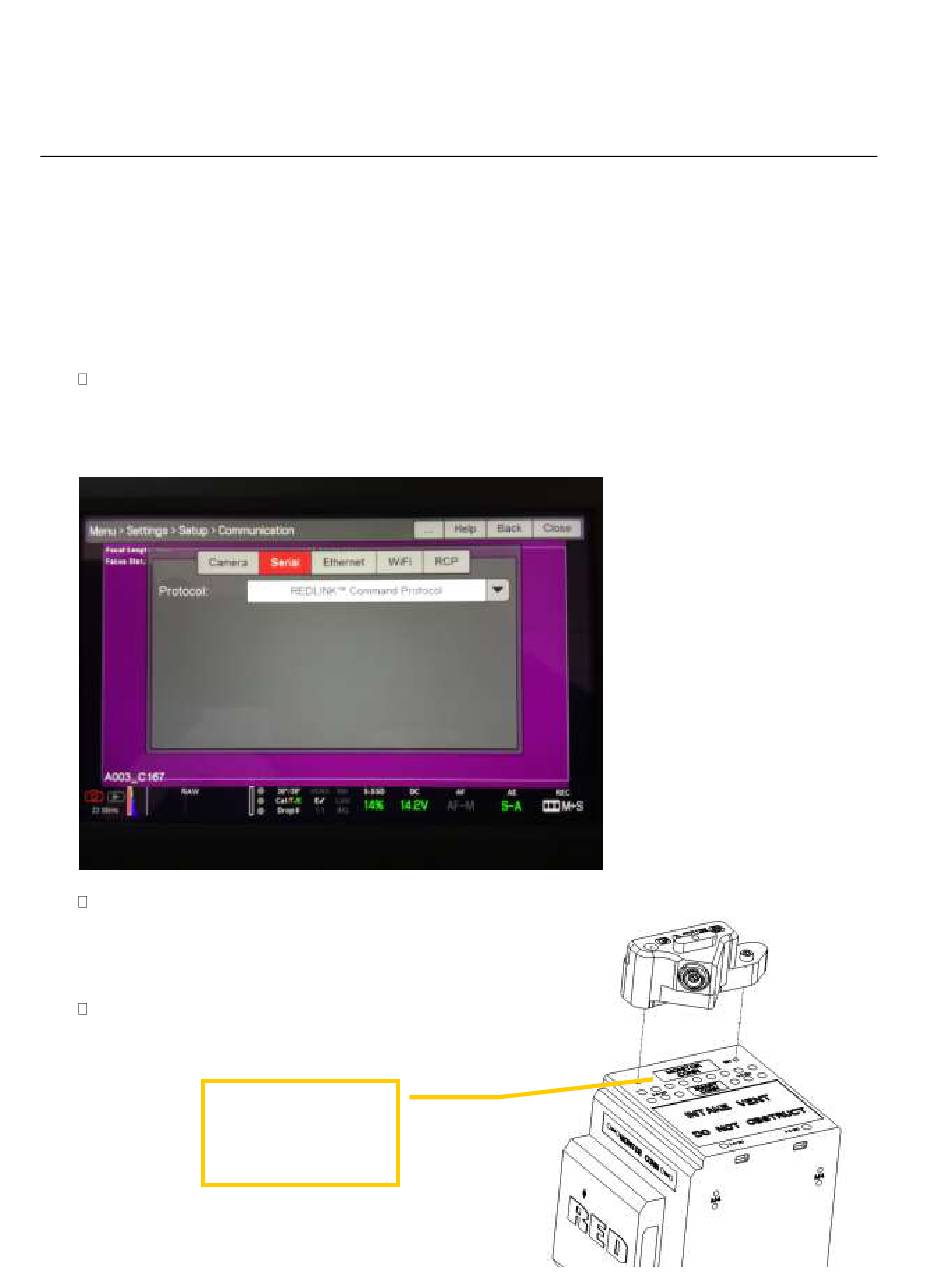

Change camera settings to enable tethered communication to the REDMOTE. Go

to Menu=>Settings=>Setup=>Communication and set Serial Protocol to REDLINK

Command Protocol. This step is in addition to the settings provided in the DEEP

DRAGON SU&C Guide.

Install the Audio Extension Cable (optional). This extension will allow you to plug

DEEP DRAGON audio cables into the DSMC² camera.

Attach the LCD adapter.

Attach the WEAPON

LCD Adapter and

secure with T20 Torx

wrench.
