Triax TMU 5 3 C Series Manual page 4

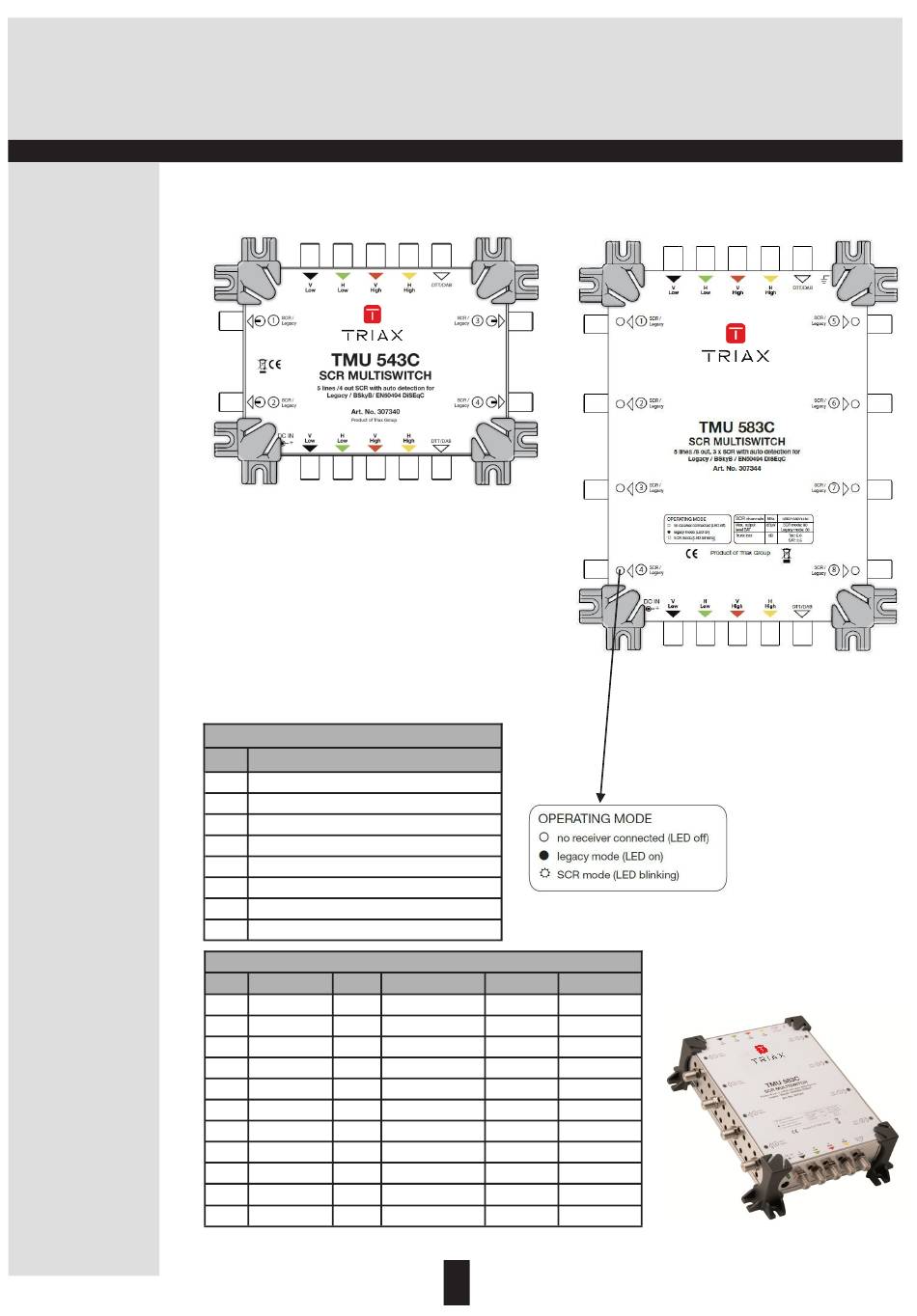

Connecting the hardware—TMU 5x3 C
307340,
TMU 543 C
and
307344,
TMU 583 C
Connectors
1 2 3 4 5
SO1
SO2
DC 6 7 8 9 10
Satellite receiver outputs
Ref. Type
SO1 Subscriber/satellite receiver output 1
SO2 Subscriber/satellite receiver output 2
SO3 Subscriber/satellite receiver output 3
SO4 Subscriber/satellite receiver output 4
SO5 Subscriber/satellite receiver output 5
SO6 Subscriber/satellite receiver output 6
SO7 Subscriber/satellite receiver output 7
SO8 Subscriber/satellite receiver output 8
Trunk SAT-IF/TER and DC connectors
Ref. Polarity Band
1 Vertical Low
2 Horisontal Low
3 Vertical High
4 Horisontal High
5 Passive
N/A
6 Vertical Low
7 Horisontal Low
8 Vertical High
9 Horisontal High
10 Passive
N/A
DC 18VDC
N/A
SO3
SO4
Signal Trunk
SAT pos A cascade
SAT pos A cascade
SAT pos A cascade
SAT pos A cascade
TERRESTRIAL cascade
SAT pos A cascade
SAT pos A cascade
SAT pos A cascade
SAT pos A cascade
TERRESTRIAL cascade
DC for LNB cascade
4
1 2 3 4 5
SO1
SO2
SO3
SO4
DC 6 7 8 9 10
Type
Input
Input
Input
Input
Input
Output
Output
Output
Output
Output
Input
TMU 5/9/17x3 C
SO5
SO6
SO7
SO8
