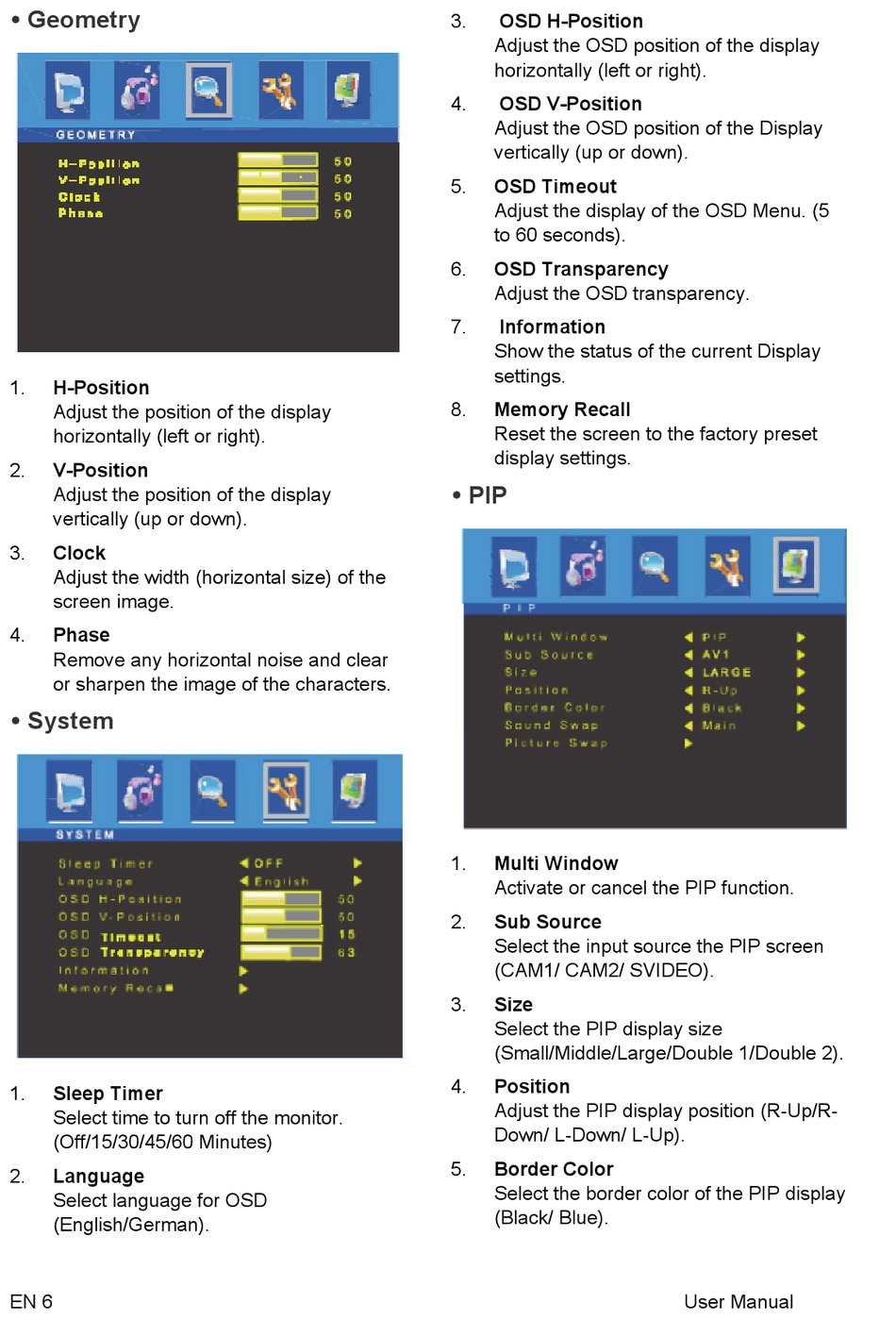

Interlogix UVM-2600 User Manual page 8

 Geometry
1. H-Position
Adjust the position of the display
horizontally (left or right).
2. V-Position
Adjust the position of the display
vertically (up or down).
3. Clock
Adjust the width (horizontal size) of the
screen image.
4. Phase
Remove any horizontal noise and clear
or sharpen the image of the characters.
 System
1. Sleep Timer
Select time to turn off the monitor.
(Off/15/30/45/60 Minutes)
2. Language
Select language for OSD
(English/German).
EN 6
3. OSD H-Position
Adjust the OSD position of the display
horizontally (left or right).
4. OSD V-Position
Adjust the OSD position of the Display
vertically (up or down).
5. OSD Timeout
Adjust the display of the OSD Menu. (5
to 60 seconds).
6. OSD Transparency
Adjust the OSD transparency.
7. Information
Show the status of the current Display
settings.
8. Memory Recall
Reset the screen to the factory preset
display settings.
 PIP
1. Multi Window
Activate or cancel the PIP function.
2. Sub Source
Select the input source the PIP screen
(CAM1/ CAM2/ SVIDEO).
3. Size
Select the PIP display size
(Small/Middle/Large/Double 1/Double 2).
4. Position
Adjust the PIP display position (R-Up/R-
Down/ L-Down/ L-Up).
5. Border Color
Select the border color of the PIP display
(Black/ Blue).
