Removing stuck card(s) from the ExpressCard1000 Encoder
Procedure time: 15 minutes
Included Items:
1. Straight Pick (9 ¾ in. long) –p\n: 96900813
2. 90° Pick (9 ¾ in. long) – p\n: 96900814
3. Hemostat Pliers (8 in. long) - 96900816
1. Disconnect the power and data cables.
2. Open the Top Cover of the ExpressCard1000 by inserting and turning the key, gently
grasping the top handles of the Cover, and lifting upward. The Cover will lift up and fold
in half, exposing the Printer beneath.

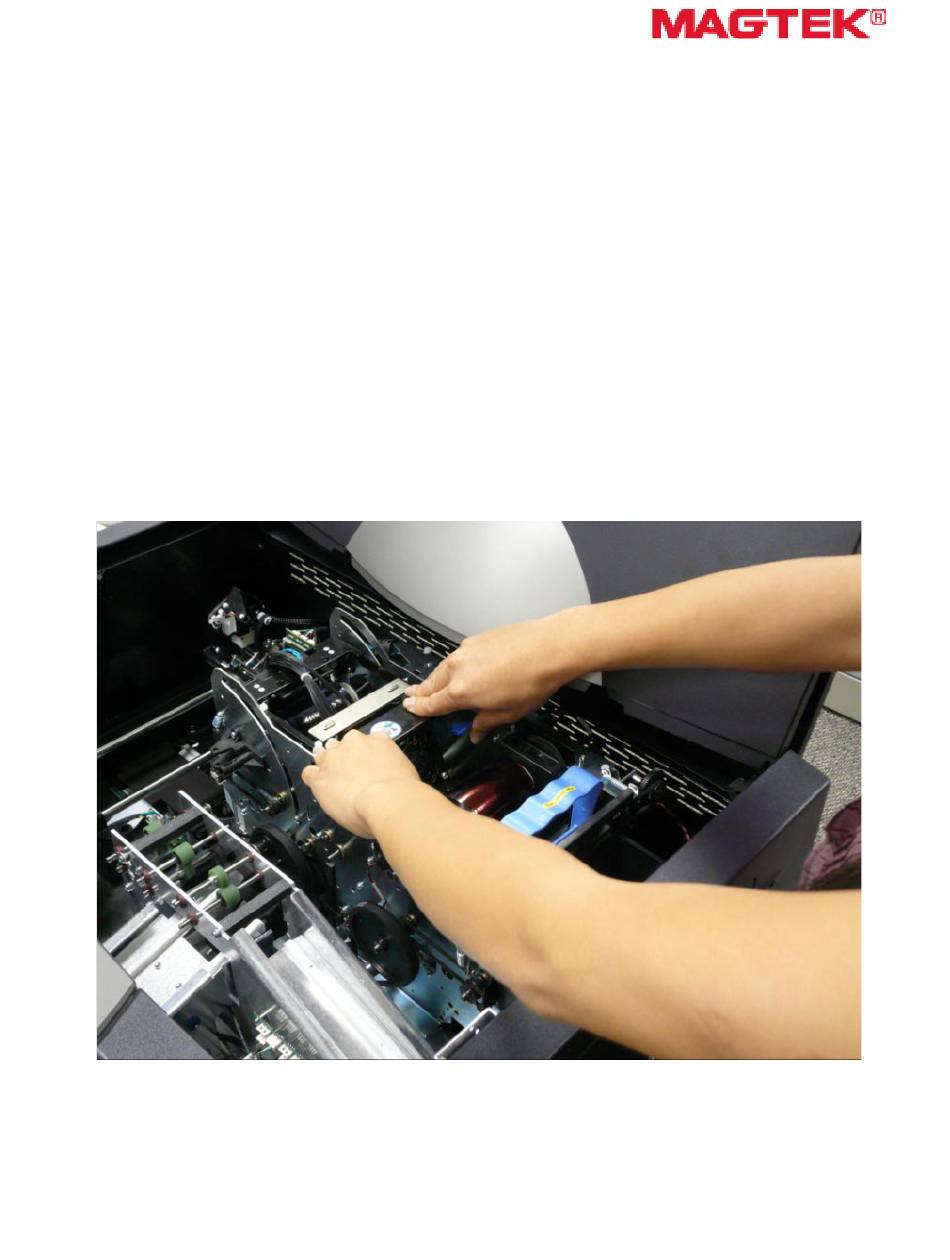

3. Open the Print head assembly by gently pulling up on the assembly's release tabs and
lifting upward. This will allow the assembly to swing completely open.
4. Remove the ribbon take-up spool from its corresponding hubs (Hint: The spool closest to
the card hoppers) and set aside as shown in figure 2.
Rev: 2.01
Figure 1
1
P/N: 99875454
Advertisement
Table of Contents
Related Manuals for Magtek ExpressCard1000
Summary of Contents for Magtek ExpressCard1000
- Page 1 3. Hemostat Pliers (8 in. long) - 96900816 1. Disconnect the power and data cables. 2. Open the Top Cover of the ExpressCard1000 by inserting and turning the key, gently grasping the top handles of the Cover, and lifting upward. The Cover will lift up and fold in half, exposing the Printer beneath.
- Page 2 Figure 2 5. Rotate the printer flipper\ turntable downward to about a 45° angle. Rev: 2.01 P/N: 99875454...
- Page 3 6. With the turntable at a 45° angle you be able to see the bezel of I380 encoder and the stuck card(s) through an opening on the I380. See figure 3. Figure 3 Rev: 2.01 P/N: 99875454...
- Page 4 Insert the straight pick between the encoder head wires and the I380 body as shown in figure 4. Carefully position the pick in such a way that keeps the head wires away from the opening where the card is visible. Note: If the encoder wires are damaged in any way the encoder will need to be replaced.
- Page 5 8. When the 90° pick is firmly against the card surface pull forward slowly and the card(s) will move toward the exit of the bezel. The pick may need to reposition several times before enough card surface is exposed. Once enough card surface protrudes from the I380 bezel, grab the card using the Hemostat pliers and pull the card from the I380.
- Page 6 12. Once the machine displays “Ready” print a sample card to test the functionality of the printer and encoder. 13. If you encounter any problem during this procedure contact the Magtek Help desk at (888) 624-8350 or via email at: support@magtek.com...
