REBUILD INSTRUCTIONS FOR BLOOD PUMP WITH
1. PURPOSE:
To outline the process of removing and reinstalling the tachometer assembly in order to access the
motor brushes on a 2008
2. TOOLS REQUIRED:
• T-20 Torx Screw Driver
• T-25 Torx Screw Driver
3. PROCEDURE:
Caution: Care must be taken when handling circuit boards to prevent damage by ESD
(Electrostatic Discharge). Use appropriate ESD precautions when handling electronic
components.
Blood Pump Preparation
1.
Remove the module from the machine; unplug the module ribbon cable(s) from the LP955
and the ESD ground wire from the module face plate.
2.
Lay the module face down on an ESD protective surface.

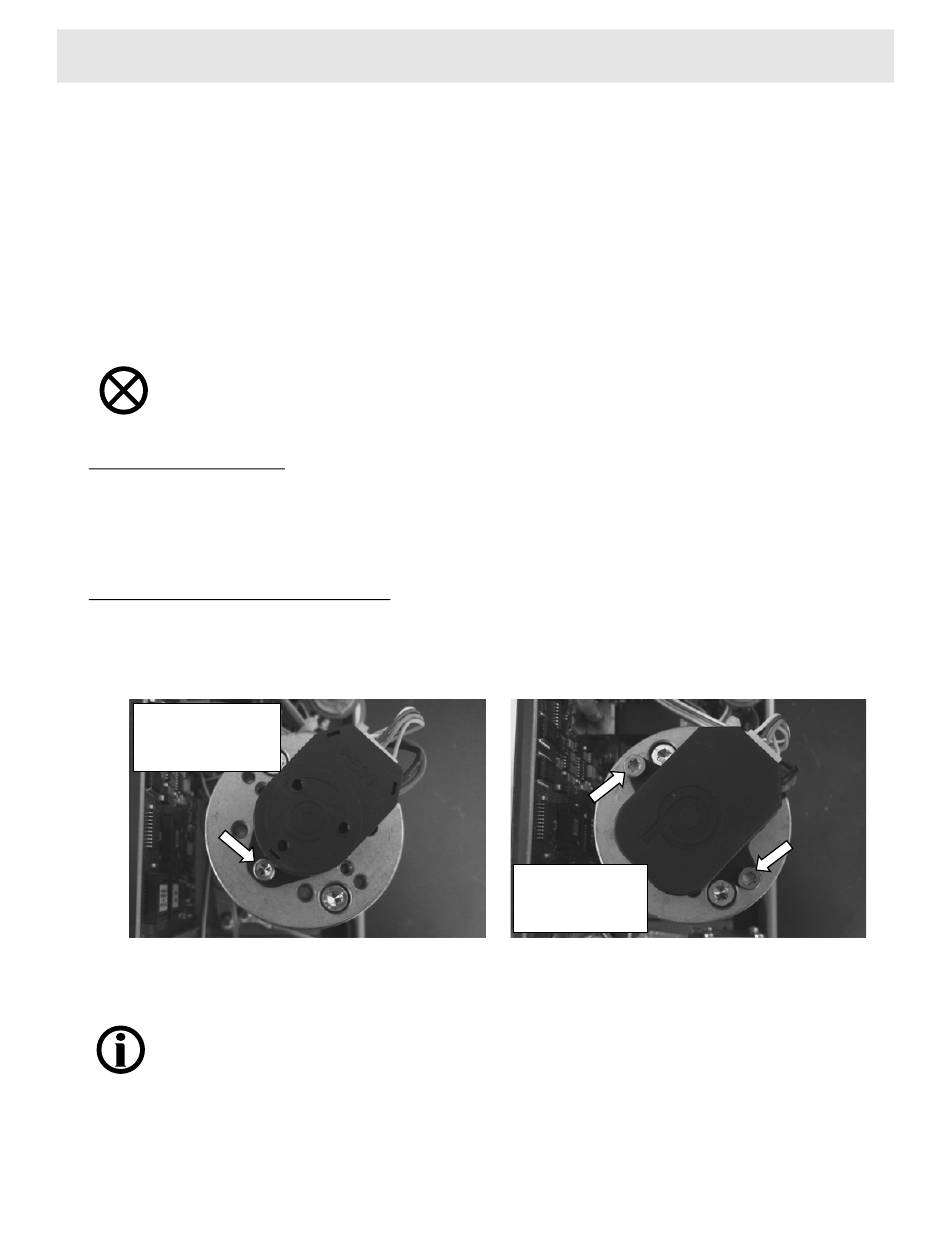

Removable Tachometer Identification
In order to rebuild a 2008
Figure 1 shows how to make the distinction between the two types. If the tachometer is not
removable, the blood pump motor cannot be rebuilt.
A Hood with only
one screw is not a
removable type.
Non-Removable Tachometer
(Brushes Not Replaceable)
Note: A non-removable tachometer blood pump can be converted by replacing the
motor/gearbox assembly with P/N M49706.
REMOVABLE TACHOMETER
®
Series Arterial Blood Pump with a removable tachometer.
®
Series Arterial Blood Pump, the tachometer has to be the removable type.
Figure 1
P/N 490351 Rev. A
• #2 Phillips Screw Driver
• Marking Pen
A Hood with
two screws is a
removable type
Removable Tachometer
(Brushes Replaceable)
Page 1 of 6
