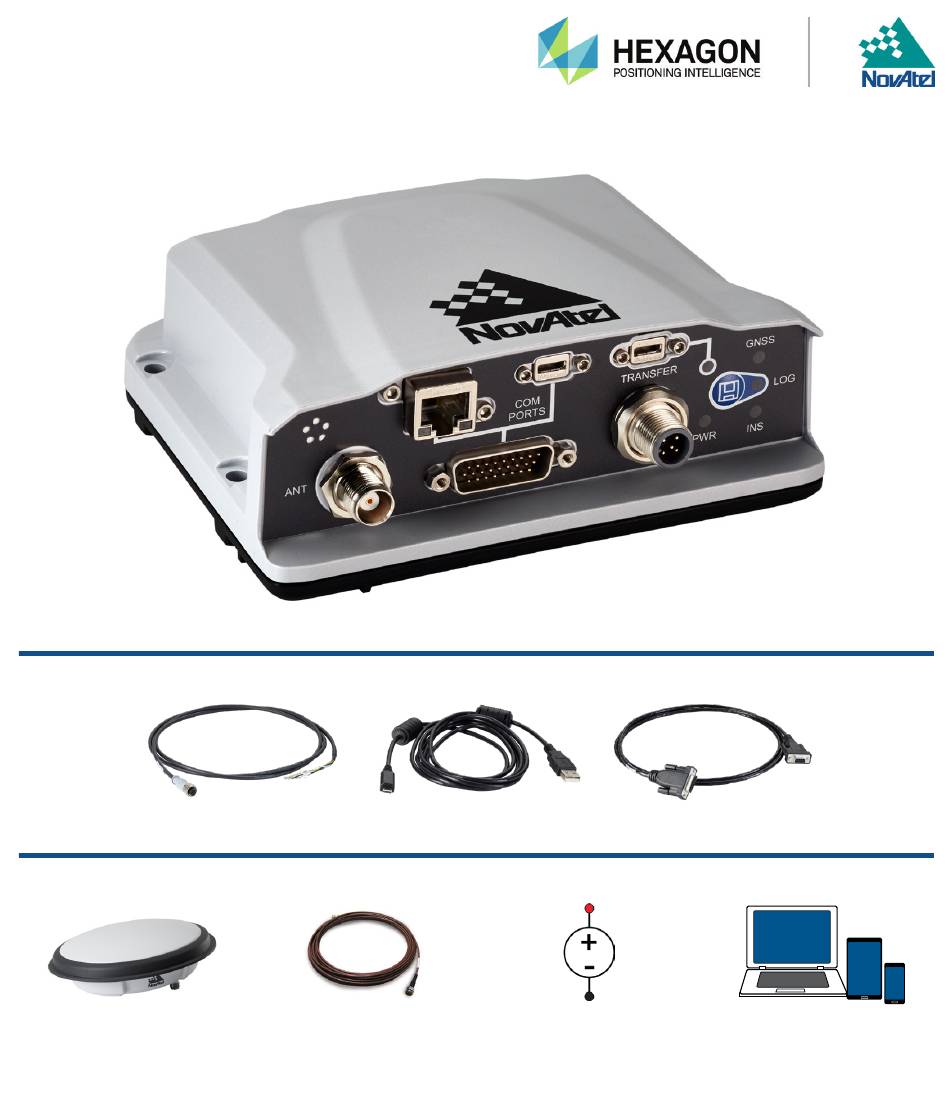

- Page 1 PwrPak7 Family ® Quick Start Guide Box Contents Power Cable USB Cable COM1 Serial Cable Other Equipment Needed GNSS Antenna 50Ω Coaxial 9-36 VDC Computer, Tablet or Antenna Cable Power Supply Smart Phone Capable of 15 W...
- Page 2 Connect and Power the PwrPak7 6A fuse GNSS TRANSFER PORTS 1. Securely mount the GNSS antenna with a clear view of the sky. 2. Connect the GNSS antenna to the PwrPak7. 3. Connect the PwrPak7 to a 9-36 VDC power supply. 4.
- Page 3 Communications – Web UI (Option 1) 1. Connect your computer, phone or tablet to the PwrPak7 Wi-Fi hotspot. (e.g. PwrPak7-NMPM191500004P) 2. Enter the PwrPak7 Wi-Fi Password. 3. Open a web browser and enter 192.168.19.1. 4. Tap the Position button to display the receiver’s latitude, longitude and height.
- Page 4 PwrPak7. 3. Launch NovAtel Connect. 4. Double-click one of the USB tiles. The Position tile displays the receiver’s latitude, longitude and height. Additional Information For more information and support, refer to docs.novatel.com/OEM7. GM-14915152 Rev 7 October 2019...
