Bently Nevada 3500 Galvanic Isolator Interface Manual page 31

Hide thumbs
Table of Contents

Advertisement

4.5.1.3

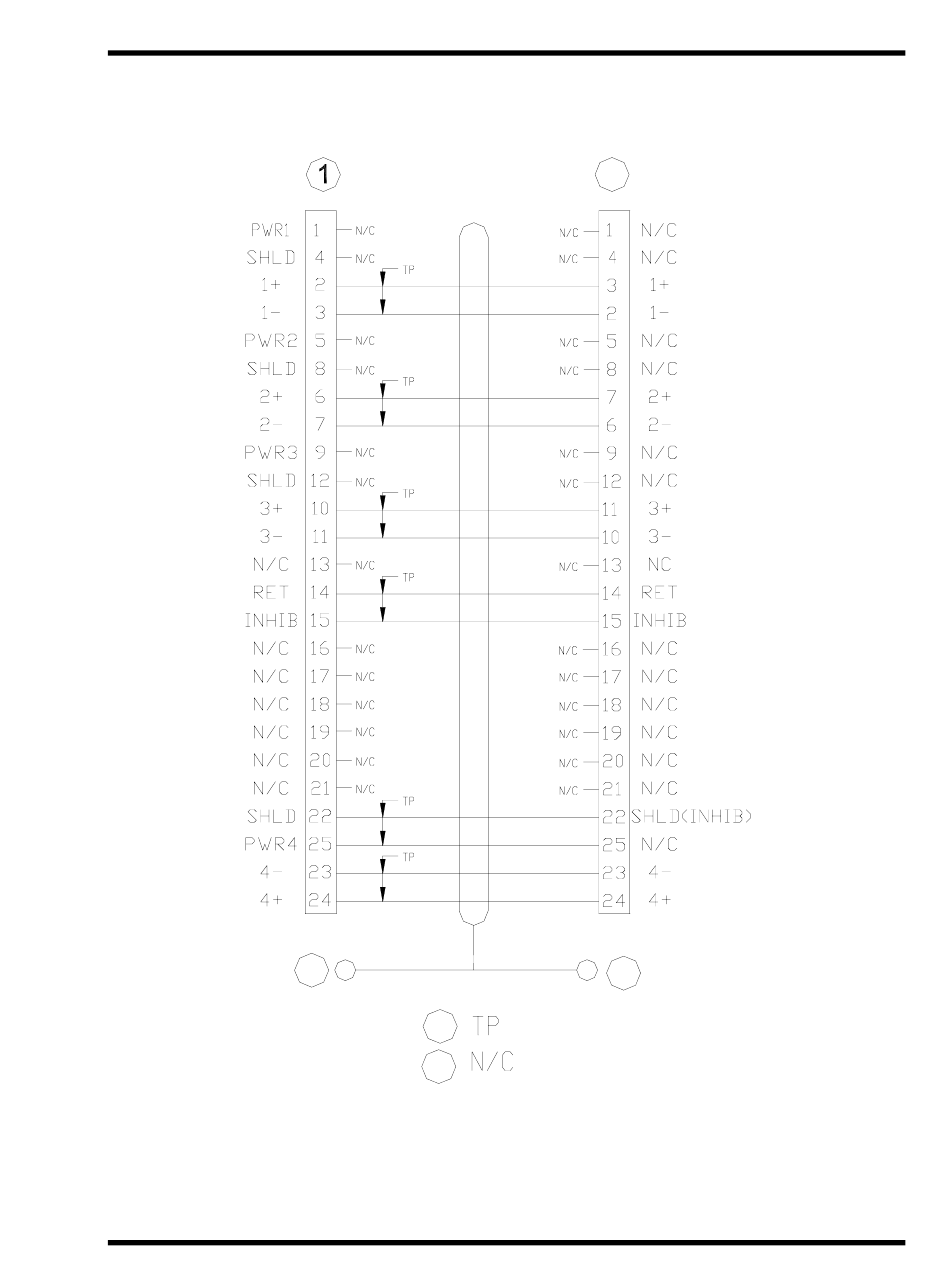

Cable Number 141710-AXXXX-BXX, 3500 Galvanic Interface
(Aeroderivative) Cable
3
4
5
1)
Connector J1 (3500)
2)
Connector J2 (Backplane)
3)
Connect Shield to Backshell
4)
TP= Twisted Pair
5)
N/C= No Connect
Section 4 — Wiring the Hardware
2
3
27
