3500 Galvanic Isolator Interface Manual

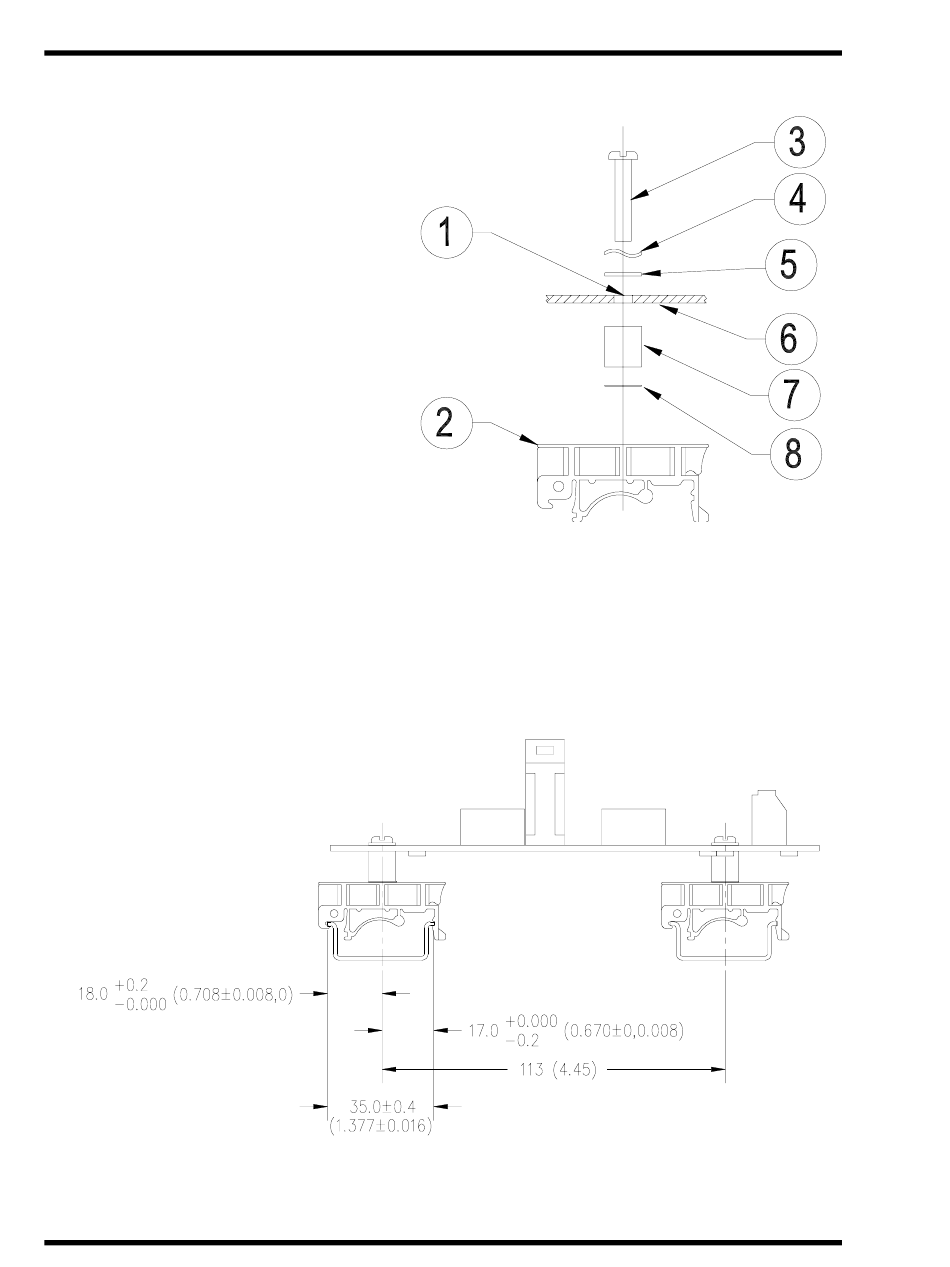

1. Attach the DIN-rail mounting feet onto two lengths of "G" or T-section DIN
rails.
1)
2)
3)
4)
5)
6)
7)
8)
2. Position the screws and washers through the backplane mounting holes
marked "A" as shown.
3. Attach the backplane to the mounting feet with the fixing screws as shown.
12
Mounting
Hole "A"
DIN Rail
Mounting
Foot
M4 x 20mm
Screw
Locking
Washer
Plain
Washer
Backplane
M4 x 10mm
Spacer
M4 Interference Fit Washer
Dimensions: Millimetre (inch)
