MRU-300
Radio signal repeater
Firmware version 1.00
mru-300_en 06/20
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the micra MRU-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel micra MRU-300

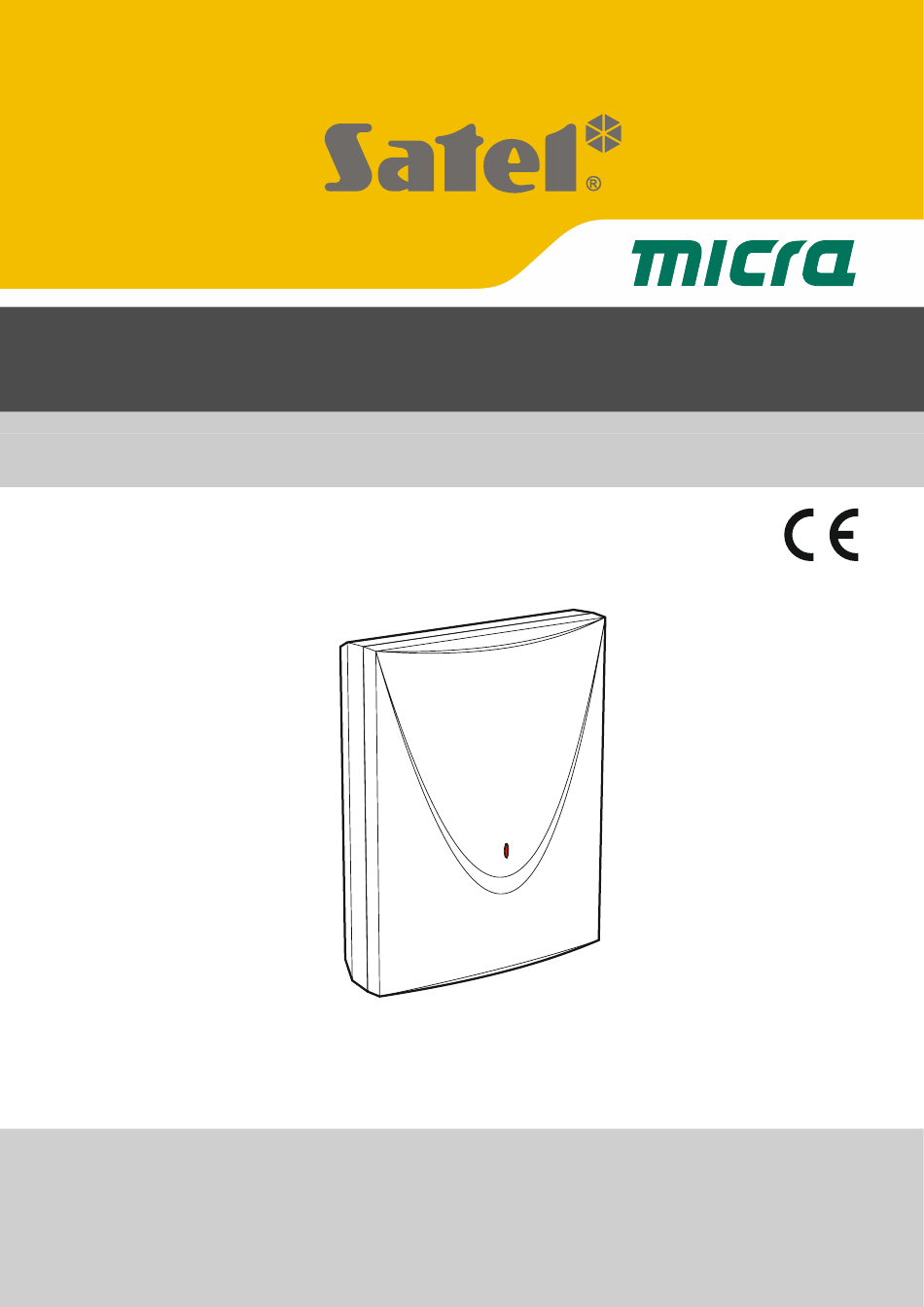

  • Page 1 MRU-300 Radio signal repeater Firmware version 1.00 mru-300_en 06/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The name plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The MRU-300 radio signal repeater receives transmissions from wireless MICRA system devices and retransmits them. It works with:  PERFECTA alarm control panels (WRL type),  VERSA-MCU controller,  MTX-300 controller,  MICRA alarm module (firmware version 2.02 or newer). The repeater supports the following MICRA devices: ...
  • Page 4 MRU-300 SATEL 2. Electronics board RS-232 (TTL) port. Used for updating the repeater’s firmware. You can connect the repeater to the computer using the SATEL USB-RS converter. battery. tamper switch (NC). battery connector. bicolor LED indicator of the repeater status: ...
  • Page 5 SATEL MRU-300 The repeater should be installed indoors, in spaces with normal air humidity. Prior to installation you should plan the arrangement of all MICRA system wireless devices, whose signals are to be retransmitted. Select the place of installation so that the repeater is...
  • Page 6 MRU-300 SATEL The repeater is identified as the MMD-300 detector. Information about low battery should be interpreted as AC power supply loss. 7. Close and open the tamper switch. If the transmission from the device is received, continue with the installation. If the transmission from the device is not received, select a different mounting location and repeat the test.
  • Page 7 SATEL MRU-300 Environmental class according to EN50130-5 ................. II Working temperature range ................. -10°C...+55°C Maximum humidity ......................93±3% Electronics board dimensions ................87 x 104 mm Enclosure dimensions .................. 126 x 158 x 32 mm Weight ..........................266 g...
