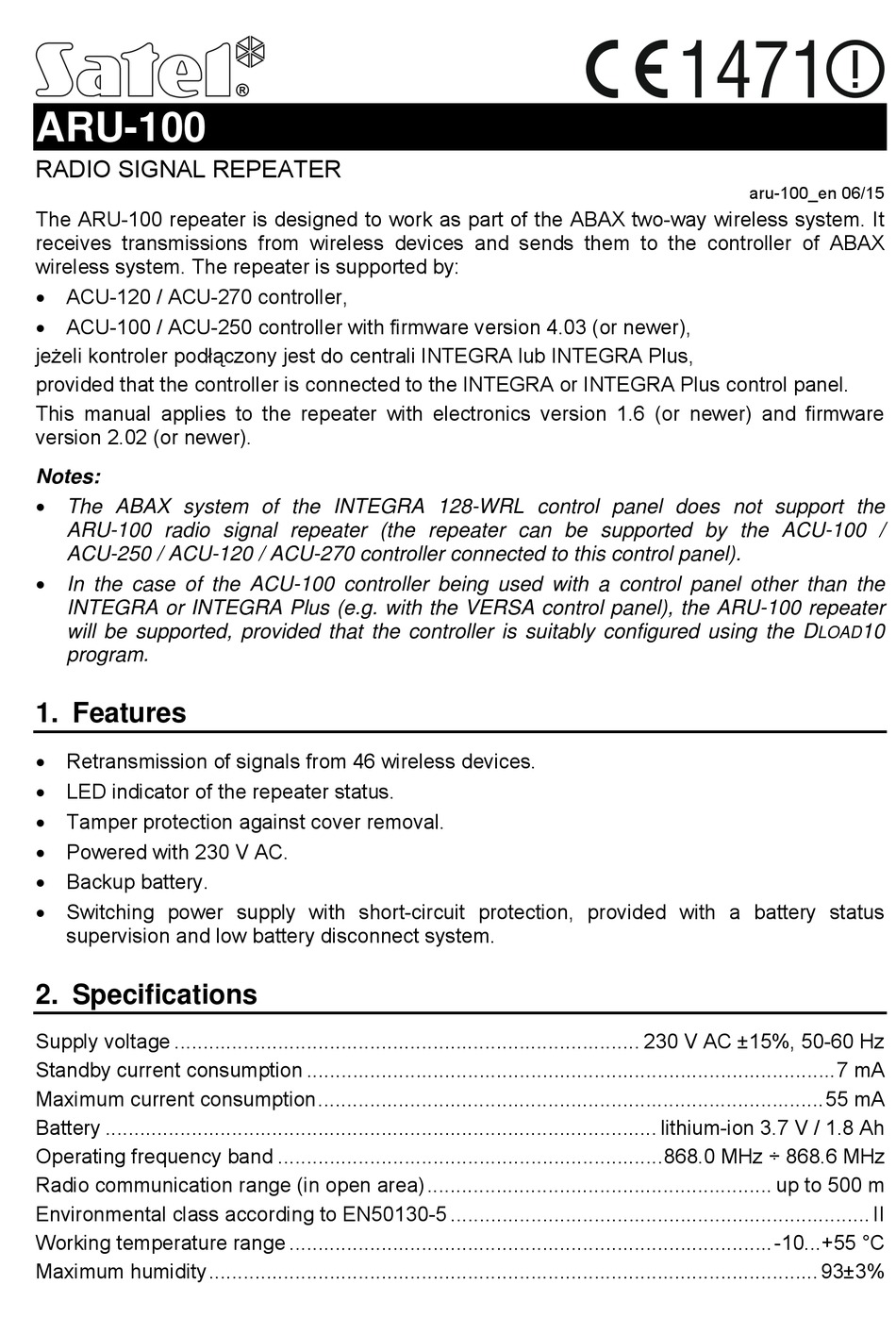

ARU-100
RADIO SIGNAL REPEATER
The ARU-100 repeater is designed to work as part of the ABAX two-way wireless system. It
receives transmissions from wireless devices and sends them to the controller of ABAX
wireless system. The repeater is supported by:
ACU-120 / ACU-270 controller,
ACU-100 / ACU-250 controller with firmware version 4.03 (or newer),
jeżeli kontroler podłączony jest do centrali INTEGRA lub INTEGRA Plus,
provided that the controller is connected to the INTEGRA or INTEGRA Plus control panel.
This manual applies to the repeater with electronics version 1.6 (or newer) and firmware
version 2.02 (or newer).
Notes:
The ABAX system of the INTEGRA 128-WRL control panel does not support the
ARU-100 radio signal repeater (the repeater can be supported by the ACU-100 /
ACU-250 / ACU-120 / ACU-270 controller connected to this control panel).
In the case of the ACU-100 controller being used with a control panel other than the
INTEGRA or INTEGRA Plus (e.g. with the VERSA control panel), the ARU-100 repeater
will be supported, provided that the controller is suitably configured using the D
program.
1. Features
Retransmission of signals from 46 wireless devices.
LED indicator of the repeater status.
Tamper protection against cover removal.
Powered with 230 V AC.
Backup battery.
Switching power supply with short-circuit protection, provided with a battery status
supervision and low battery disconnect system.
2. Specifications
Supply voltage ................................................................................. 230 V AC ±15%, 50-60 Hz
Standby current consumption ............................................................................................7 mA
Maximum current consumption........................................................................................55 mA
Battery ................................................................................................ lithium-ion 3.7 V / 1.8 Ah
Operating frequency band ...................................................................868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ............................................................ up to 500 m
Environmental class according to EN50130-5 ......................................................................... II
Working temperature range ....................................................................................-10...+55 °C
Maximum humidity.......................................................................................................... 93±3%
aru-100_en 06/15
10
LOAD
Advertisement
Table of Contents
Related Manuals for Satel ARU-100
Summary of Contents for Satel ARU-100
-
Page 1: Specifications
RADIO SIGNAL REPEATER aru-100_en 06/15 The ARU-100 repeater is designed to work as part of the ABAX two-way wireless system. It receives transmissions from wireless devices and sends them to the controller of ABAX wireless system. The repeater is supported by: ... - Page 2 Enclosure dimensions ................. 126 x 158 x 32 mm Weight..........................248 g 3. Electronics board Fig. 1. ARU-100 repeater electronics board. battery. The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection.
- Page 3 SATEL ARU-100 4. Installation and start-up Disconnect power before making any electrical connections. The repeater should be installed indoors, in spaces with normal air humidity. Prior to installation you should plan the arrangement of all ABAX system wireless devices, whose signals are to be retransmitted.
- Page 4 Fig. 2. Connecting the power wires. Hereby, SATEL sp. z o.o., declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.satel.eu/ce...
