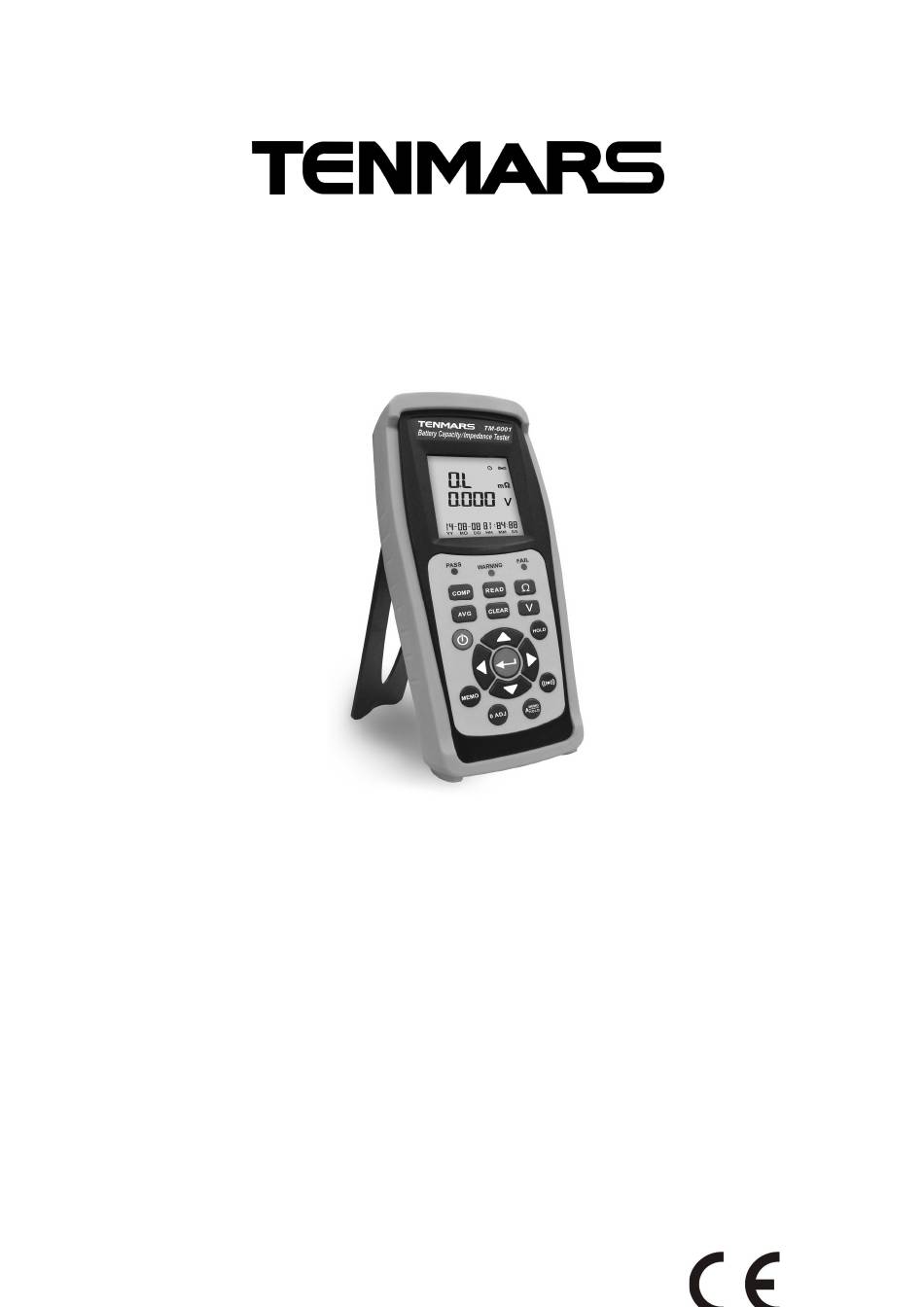

- Page 1 Battery Impedance Tester TM-6002 User’s Manual...
-
Page 2: Table Of Contents
CONTENTS Features....................3 SPECIFICATIONS ..................3 Identifying parts..................5 Electrical specifications:................6 Safety Precaution ..................8 BATTERY REPLACEMENT..............14 External DC Power .................14... -
Page 3: Features
TM-6002 1. Features The Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery ( NiMH),Nickel-cadmium battery(NiCd),Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery. AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get the accurate results. - Page 4 TM-6002 Operating temperature and R.H. value: 5°C to 40°C, 80%RH or less (non- condensation). Storage temperature and R.H. value: -10°C to 60°C, 70%RH or less (non-condensation). Operating ambience: In-door use, under environmental pollution grades two. Operating attitude: Max 2000 meters above level.
-
Page 5: Identifying Parts

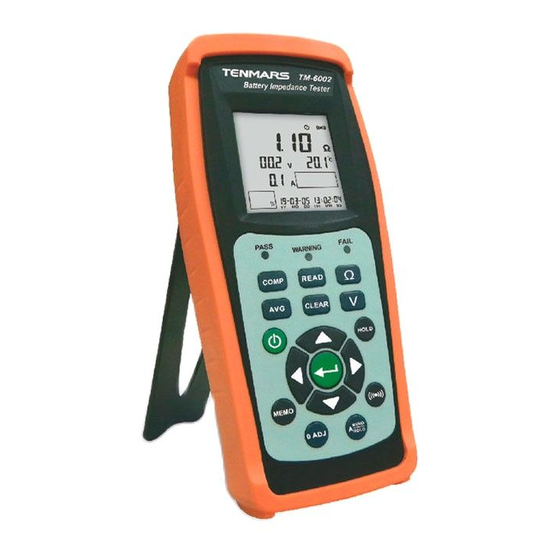

TM-6002 3. Identifying parts FIG (1) EN-5... -
Page 6: Electrical Specifications
TM-6002 1. LCD display. 2. PASS LED ：To indicate the tested battery complies with the high limit of comparator. 3. WARNING LED：To indicate the tested battery is going to deteriorate. 4. FAIL LED：To indicate the tested battery has deteriorated. key ：Comparator function. - Page 7 TM-6002 perform a Zero adjustment after each range change. Resistance measurements Temperature coefficient ：(±0.1％ rdg ±0.5digits)/℃. Measurement current frequency：1KHZ±30HZ. Measurement open-circuit terminal voltage：7Vp-p CAUTION The maximum input for DC voltage is 40V (No AC voltage Input permitted). Do not attempt to measure high voltages to avoid electrical shocks or damages to the instrument.。...
-
Page 8: Safety Precaution
TM-6002 Voltage Measurements Temperature coefficient ：(±0.1％ rdg ±0.5digits)/℃ CAUTION The maximum input for DC voltage is 40V(No AC voltage Input permitted). Do not attempt to measure high voltages to avoid electrical shocks or damages to the instrument.。 Range Resolution Accuracy ±(0.1％... - Page 9 TM-6002 (material), combustible gas (material) steam or filled with dust. In order to avoid reading incorrect data, you have to replace the batteries immediately when the symbol BAT appears on the LCD. In order to avoid the damage caused by contamination and static electricity, do not touch the circuit board before you take any adequate acti ...
- Page 10 Red test lead to SOURCE〝＋〞jack Black test lead to SOURCE〝－〞jack. Yellow test lead to SENSE〝＋〞jack Blue test lead to SENSE〝－〞jack. Temperature plug to TEMP SENSOR (TM-6002). 2. Press power key turn on the meter。 3. Press Ω-RANGE key to select desired impedance ranges。...
- Page 11 8. Connect the red test probe to the positive battery terminal, and the black test probe to the negative battery terminal. 9. Read the battery internal impedance or DC voltage directly and Temperature measurement(TM-6002) from the display. Note：When the measured DC voltage or battery internal impedance value is over range, “OL”is displayed.
- Page 12 TM-6002 conditions to light the corresponding LED, and sounds a beeper under the WARNING and FAIL cases. 1. Press power: key turn on the meter. 2. Press comp key for 2 seconds the display will show ”COMP” and No ” 00” .Each flashing to enter the comparator setting mode.
- Page 13 TM-6002 DC Current (DCA) measurement(TM-6002) 1. Connect the current probe to meter： ＋ red signal output to DCA+ JACK, and － black to signal output to DCA- JACK 2. Press power: key turn on the meter. 3. Open the clamp and put the tested conductor in the center or clamp jaws.
-
Page 14: Battery Replacement
TM-6002 “A.MEMO“ appear to start the Auto-recording function. Press “ “ key again to disable the Auto-recording function. Manual data logging mode and Clear data logger memory 1. Press manual data logging key enable manual data logging mode the display will show increase memory number. - Page 15 TM-6002 Diameter 6.3mm; internal Diameter 2.0 mm EN-15...
- Page 16 TM-6002 Software installation PC requirement: ․CPU：PentiumⅢ 1000MHZ. ․RAM:SDRAM 256MB. ․Hard Disk：200MB. ․OS：Windows 2000、Windows XP、Windows 7、Windows 8. ․Display：800×600 256 cooler. 1. Insert the CD into the PC to install the software first. 2. Select the USB drive to be installed, which is PL-2303 Drive Installer.exe, click twice on the left key of the mouse to install the USB driver.
- Page 17 TM-6002 3. Select the Microsft.NET Framework2.0(32bit) or (64bit) installs the desktop icon. 4. Select the Battery Capacity Impedance Tester V1.0.01and installs the desktop icon EN-17...
- Page 18 TM-6002 5. Remove the CD from PC after completed the installation. 6. Use the USB cable to connect the meter and computer according to the drawing.. 7. Select the desktop icon and click twice on left key of the mouse to run the procedure.
- Page 19 TM-6002 Note Caution: this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal EN-19...
- Page 20 TM-6002 EN-20...
- Page 22 TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http://www.tenmars.com...
