Tenmars TM-6001 User Manual

Battery impedance tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

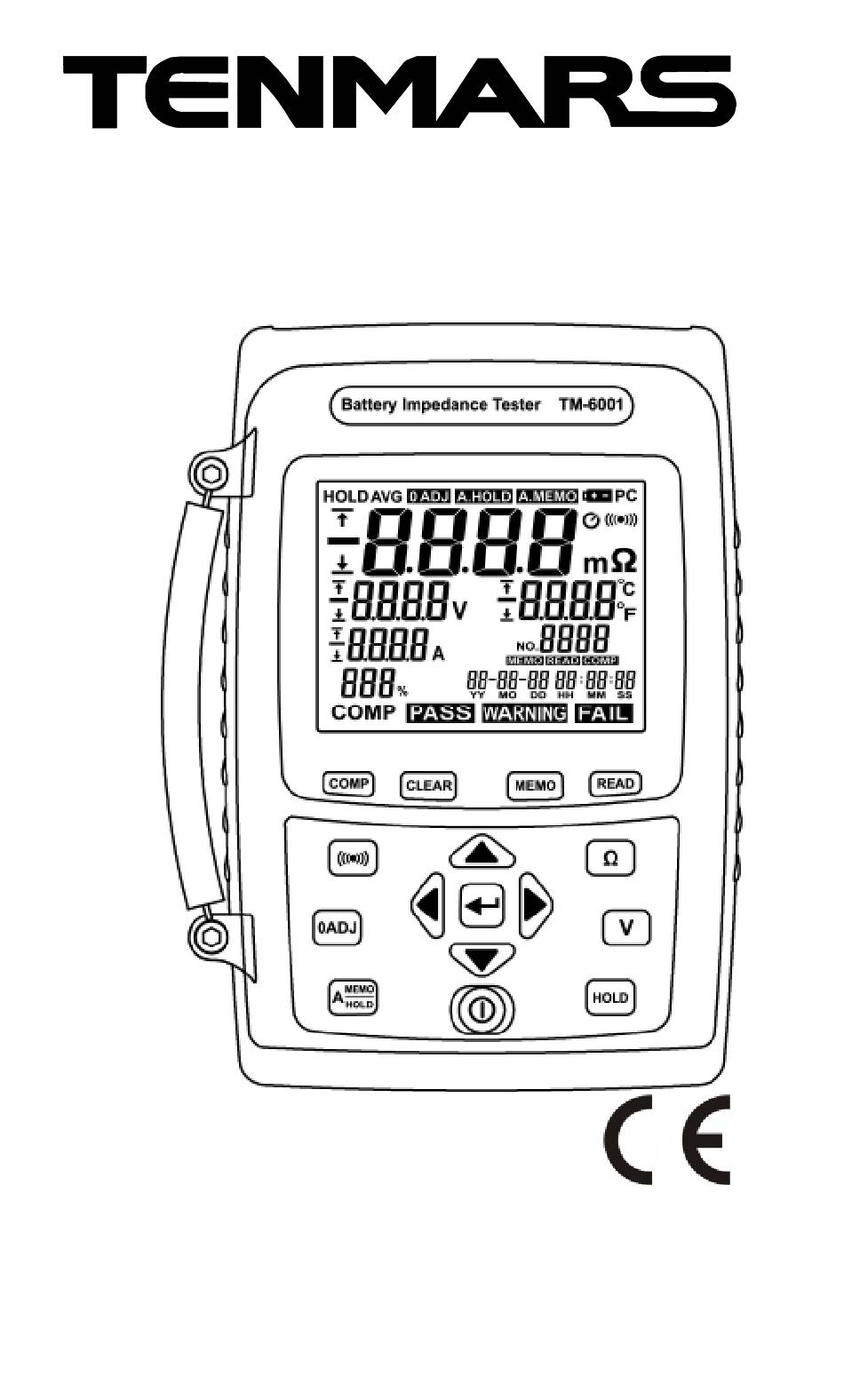

TM-6001
Battery Impedance Tester
User's Manual
HB2TM6001M00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-6001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenmars TM-6001

Summary of Contents for Tenmars TM-6001

  • Page 1 TM-6001 Battery Impedance Tester User’s Manual HB2TM6001M00...

  • Page 2: Table Of Contents

    Contents: Features............1 Accessories............1 Safety Precaution..........2 Meter Description ..........4 General specifications ........8 Electrical specifications: ........9 Operation: ............12 Clock setup ..........15 Comparator Settings ........15 DC Current (DCA) measurement....20 Temperature measurement(K-TYPE) ..21 DATA HOLD and Back light function ..22 Auto Hold and Auto Recording function..

  • Page 3: Features

    TM-6001 1 Features 1. The Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery ( NiMH),Nickel-cadmium battery(NiCd),Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery. 2. AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get the accurate results.

  • Page 4: Safety Precaution

    TM-6001 3 Safety Precaution CAUTION Take extreme care for the following conditions while measuring. Measuring voltage over 20V as it may cause human body electricity conduction. Do not measure voltage, current under humid or wet environment. If any unusual condition of test leads’...
  • Page 5 TM-6001 Symbols Description  Caution Danger high Voltage：risk of electric shock Meter Double insulated AC Voltage or Current AC Voltage or Current Ground FUSE...

  • Page 6: Meter Description

    TM-6001 4 Meter Description...
  • Page 7 TM-6001 FIG (1) LCD display.. key ：Comparator function. key ：To delete single data logged reading in the memory and settings date/time. key ：To show the data logged readings.. key ：For recording the displayed values. key ：Select the impedance range. (4mΩ,...
  • Page 8 TM-6001 key ：Select the voltage range. (6V, 60V). key ：Hold or disable -hold function for the displayed values. key ：Power ON/OFF. key ：Turn the beeper on or off key ：For implementing the zero-adjust feature. key ：Select the auto-hold and auto-memory feature.
  • Page 9 TM-6001 lead plug. SOURCE－ input jack：For connecting with the back test lead plug. SENSE＋ input jack ： For connecting with the yellow test lead plug. SENSE－ input jack：For connecting with the blue test lead plug. TEMPSENSOR input jack：For connecting the plug of the temperature sensor.

  • Page 10: General Specifications

    TM-6001 5 General specifications Measuring method：Impedance (AC four-terminal  method). A/D conversion: Dual slope method.  Display：LCD display and LEDs (comparator output).  Sampling rate:2 Second.  Open-Circuit terminal voltage: 7.0Vp-p max.  Input over range: the screen displays “OL”.

  • Page 11: Electrical Specifications

    TM-6001 6 Electrical specifications: To ensure accuracy the ambient temperature should be 23°C ± 5°C with a humidity of 80% RH (maximum) non-condensing. In addition, perform a Zero adjustment after each range change. ±(0.8％ reading ＋10digits) Resistance measurements Temperature coefficient ：±(0.1％ rdg ＋0.5digits)/℃.

  • Page 12: Voltage Measurements

    TM-6001 Voltage Measurements Temperature coefficient ：(±0.1％ rdg ±0.5digits)/℃ CAUTION The maximum input for DC voltage is 60V(No AC voltage Input permitted). Do not attempt to measure high voltages to avoid electrical shocks or damages to the instrument. Range Resolution Accuracy ±(0.1％...
  • Page 13 TM-6001 DC Current (DCA) measurement CAUTION The maximum input for DC current is 700A. Do not attempt to measure higher currents to avoid electrical shocks or damages to the instrument. Range Sensitivity Resolution Accuracy 700A 0.1A 0.6A〜700.0A ±(2.0％ reading ＋...

  • Page 14: Operation

    TM-6001 7 Operation: CAUTION  Do not attempt to measure DC voltage exceeding 60V。Do not attempt to measure AC voltages, This could result in jury or damage to the unit  Do not attempt to measure the voltage of a generator. This...
  • Page 15 TM-6001 1. Connect the following test leads to the meter: Red test lead to SOURCE〝＋〞jack Black test lead to SOURCE〝－〞jack. Yellow test lead to SENSE〝＋〞jack Blue test lead to SENSE〝－〞jack. Temperature plug to TEMP SENSOR . 2. Press power key turn on the meter。...
  • Page 16 TM-6001 7. Press Zero adjustment key for 2 seconds to start the zero adjustment. A flashing “0 ADJ” appears on the screen; when the tester reads a steady value of the resistance lower than 1000; then the screen displays “0” and stop flashing ”0 ADJ”.

  • Page 17: Clock Setup

    TM-6001 Clock setup The clock of this meter is 24-hour time format. 1. Press power: key to turn on the meter, 2. Press clear key to enter the clock setting mode. 3. Press left or right key to select the options for adjustment.
  • Page 18 TM-6001 1. Press power: key turn on the meter. 2. Press comp key for 2 seconds the display will show ”COMP” and No ” 00” .Each flashing to enter the comparator setting mode. 3. Use the up key or down...
  • Page 19 TM-6001 4. Press left or right key to select option to adjust comparator low limit resistance and low limit voltage mode or select option to adjust comparator high limit resistance mode or select option to adjust comparator voltage and current mode.
  • Page 20 TM-6001 8. Press left or right key to select option to adjust comparator low limit resistance and voltage 9. Press up key or down key to change the digit. 10. If select option to adjust comparator high limit resistance mode, Press comp key to display will blink ”COMP”...
  • Page 21 TM-6001 11. Press Ω-RANGE key to select high limit resistance range. 12. Press left or right key to select option to adjust comparator high limit resistance 13. Press up key or down key to change the digit. 14. If you select option to adjust comparator voltage and current mode of step 5.

  • Page 22: Dc Current (Dca) Measurement

    TM-6001 19. Press key to store the setup, exit the mode DC Current (DCA) measurement 1. Connect the current probe to meter： ＋ red signal output to DCA+ JACK, and － black to signal output to DCA- JACK 2. Press power: key turn on the meter.

  • Page 23: Temperature Measurement(K-Type)

    TM-6001 Temperature measurement(K-TYPE) 1. Insert the banana plug adapter T10 with correct + plug into K-Type sensor + JACK, and－plug into K-Type sensor－JACK 2. With banana pins to K-Type socket to adapt other standard K-Type mini plug temperature probes. Remarks：temperature measurement can only select one of the NTC test clip or external K-Type thermocouple for the selection first priority.

  • Page 24: Data Hold And Back Light Function

    TM-6001 7.5 DATA HOLD and Back light function 1 Press key to enable data hold function. 2 Press key again to disable data hold function. 3. Please press key for more than 2 seconds to turn on the backlight display.

  • Page 25: Fuse Replacement

    TM-6001 mode. 3. Press up key or down key to scroll through the readings, The LCD display will show READ. No：xxxx indicating memory number and measure value for internal resistance and voltage、 time、 temperature、 DC current. 4. Press clear key to delete sing data logged reading in the memory.

  • Page 26: Auto Power Off Setup

    TM-6001 7.9 Auto power off setup 1. Press power: key turn on the meter, Press power: key again for 2 seconds to disable auto power off function. 2. Press power: key again for 2 seconds to auto power off setting mode.

  • Page 27: Battery Replacement

    TM-6001 8. Battery Replacement WARNING If the symbol “ ” appears on the LCD, please replace the battery immediately The meter is powered by 1.5V battery x6pcs (NEDA 15F IEC R6 JIS UM-3). For the battery replacement procedure, please follow the steps below Press power off key to turn the instrument off.

  • Page 28: Software Installation

    TM-6001 10. Software installation PC requirement: CPU：PentiumⅢ 1000MHZ.  RAM:SDRAM 512MB.  Hard Disk：200MB.  OS：Windows XP、Windows 7、Windows 8.  Display：1024×768 256 color.  1. Insert the CD into the PC to install the software first.
  • Page 29 TM-6001 2. Select the USB drive to be installed, which is PL-2303 Drive Installer.exe, click twice on the left key of the mouse to install the USB driver. 3. Select the Microsft.NET Framework2.0(32bit) or (64bit) installs the desktop icon.
  • Page 30 TM-6001 4. Select the Battery Capacity Impedance Tester V1.0.01and installs the desktop icon 5. Remove the CD from PC after completed the installation. 6. Use the USB cable to connect the meter and computer according to the drawing.

  • Page 31: End Of Life Disposal

    TM-6001 7. Select the desktop icon and click twice on left key of the mouse to run the procedure. 11. End of Life Disposal Caution: this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct...
  • Page 32 TENMARS ELECTRONICS CO., LTD. 6F, NO.586 Ruiguang Rd, Neihu Dist. Taipei City, Taiwan E-mail: service@tenmars.com http://www.tenmars.com...
