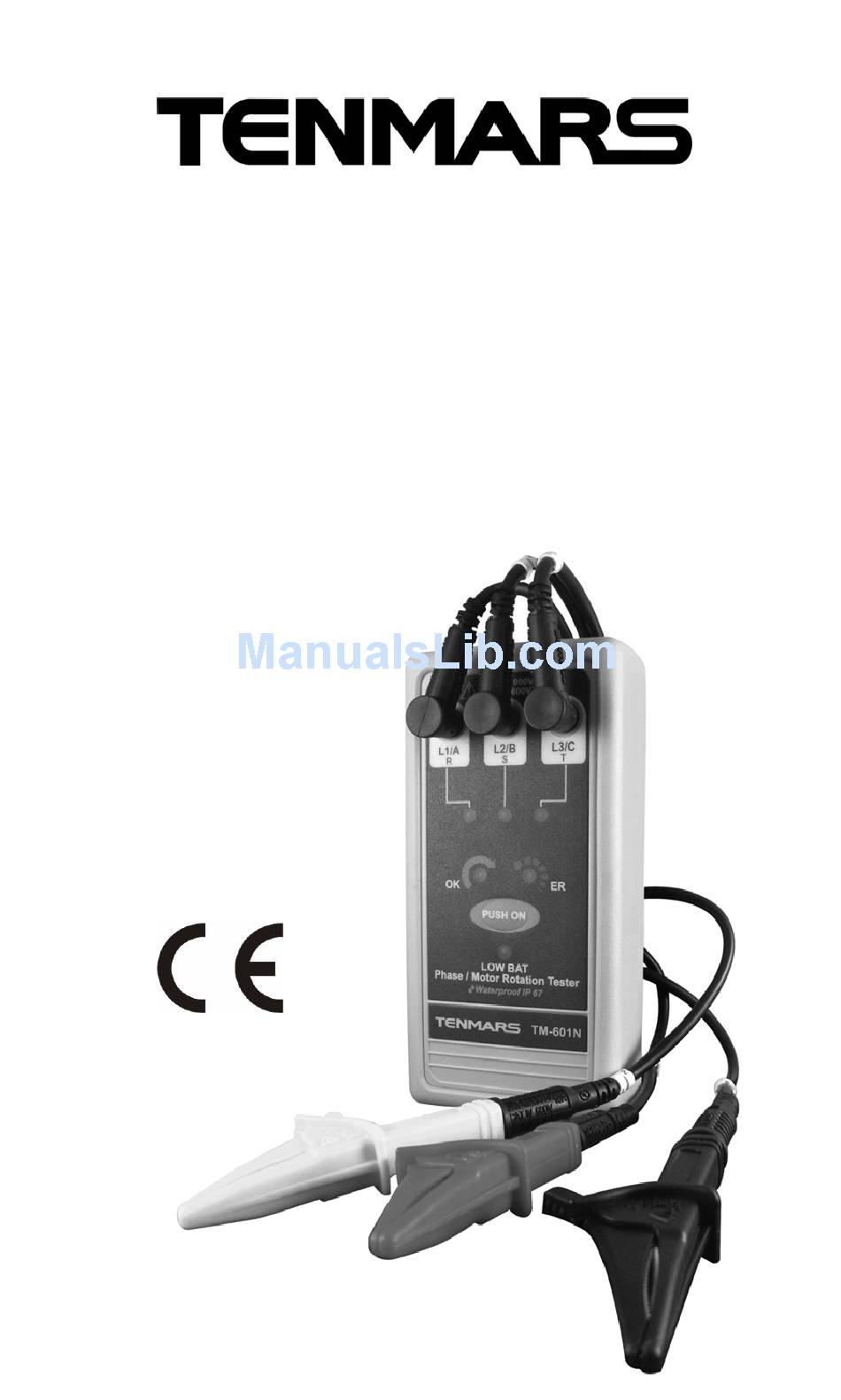

- Page 1 3-Phase / Rotation Motor Tester TM-601N / 603 / 604 User’s Manual HB2TM601N000...
-
Page 3: Table Of Contents
CONTENTS 1. Preface............2 2. Application ........... 2 3. Features:............3 4. Panel display..........3 5. How to operate..........4 5.1 How to test the 3 phases of AC ....4 5.2 How to test the motor’s direction of rotation . 5 6. -
Page 4: Preface
TM-601N/603/604 Preface Thank you for buying our excellent product. Products available on the market are not very user-friendly: their test AC phase and motor phase are separated from each other, have two sockets (to be plugged out before use), etc. When you use the you will not have these troubles anymore, and time is saved. -
Page 5: Features
When the battery is low, an indicator will turn ON to remind you to replace it. hold the power button and check the panel indicator. (TM-603/604) Two UL 500mA/700V fuse .(TM-601N) Waterproof resist IP67.(TM-601N) Panel display 3 red lamps(L1, L2 and L3) ER red/green OK indicators. -
Page 6: How To Operate
TM-601N/603/604 How to operate 5.1. How to test the 3 phases of AC Let your crocodile clip clamp the 3-phase power terminal. In each test, hold the power button and check the indicators on the panel. If L1, L2 and L3 are lit, it means normal. -
Page 7: How To Test The Motor's Direction Of Rotation
TM-601N/603/604 correct them before going to the next step. Exchange L1 and L3. If the green lamp goes ON, it means the 3 phases are correct. (In this case, skip to step 6.) If the red lamp ER goes ON, it means the 3 phases are wired incorrectly. - Page 8 TM-601N/603/604 turns clockwise, and the red lamp goes ON when it turns counterclockwise. (Normal; skip to step 8.) If the motor turns clockwise and counterclockwise and the red lamp remains ON (the red and green lamps do not go ON alternately), this suggests one wire is disconnected or not connected well.
- Page 9 TM-601N/603/604 and the red lamp goes ON when it turns counterclockwise, this suggests the wiring of L1, L2 and L3 is normal. (In this case, skip to step 8.) If the red lamp goes ON when the motor turns clockwise, and...
- Page 10 TM-601N/603/604 Once the green lamp goes ON when the motor turns clockwise, and the red lamp goes ON when it turns counterclockwise, the 3 phases are correct. Then the motor’s R.S.T. can be connected to the power system’s L1, L2 and L3. Now your motor can run correctly.
-
Page 11: Easy Test
TM-601N/603/604 Easy test 6.1.1. Motor turning test 6.1.2. Wiring and lamps EN-9... - Page 12 TM-601N/603/604 not defined Phase indication phase rotation Rotate right Power on Rotate left L1 missing L2 missing L3 missing EN-10...
-
Page 13: Electrical Specifications
TM-601N/603/604 Electrical specifications Battery life : about 50 hours Operating Temperature : 5℃~40℃,80%RH Storage temp. & RH : -10 ~60 ℃ ℃,70%RH. Overvoltage category : CAT IV 600V, CAT III 1000V. Dimensions (with holster) : 143×68×35 mm. Weight (including battery) : about 150g. -
Page 14: Safety Precautions And Procedures
TM-601N/603/604 Safety precautions and procedures This instrument conforms with safety Standard EN 61010-1 related to electronic measuring instruments. For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all... - Page 15 TM-601N/603/604 Keep you insulated from the object under test. Do not touch exposed metal parts such as test lead ends, sockets, fixing objects, circuits etc. Avoid doing that if you notice anomalous conditions such as breakages, deformations, fractures, leakages of battery liquid, blind display etc.
-
Page 16: The Following Symbols Are Used
TM-601N/603/604 10. The following symbols are used: °C AUTION - refer to the instruction manual - an improper use may damage the instrument or its components Danger high voltage: risk of electric shock Double insulated meter AC voltage or current... -
Page 17: Safety And Maintenance Standards
TM-601N/603/604 11. Safety and maintenance standards The instrument complies with : UL61010-1,and CSA C22.2 No.61010-1 (between ground and input terminal) and EN 61010-1(2001) and EN61557. Operating altitude : below 2,000m. Operating environment: for indoor use, expose to pollution level II. -
Page 18: Battery Replacement
TM-601N/603/604 12. Battery Replacement Battery Replacement When the symbol Low battery LED is displayed, batteries need replacement. CAUTION Before replacing batteries disconnect the test leads from any energized circuits to avoid electrical shocks. Turn OFF the meter and disconnect the test leads from the input terminals. - Page 19 TM-601N/603/604 Conditions This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product. Should you need for any reason to return...
- Page 20 TM-601N/603/604 combination with incompatible accessories or equipment. Repairs made necessary by improper shipping material causing damages in transit. Repairs made necessary by previous attempts for repair carried out by non skilled or unauthorized personnel. Instruments for whatever reason modified by the customer himself without explicit authorization of our Technical Dept.
-
Page 21: Service
TM-601N/603/604 13. Service Shouldn’t the instrument work properly, before contacting your distributor make sure that batteries are correctly installed and working, check the test leads and replace them if necessary. Should you need for any reason to return back the instrument for repair or replacement take prior agreements with the local distributor from whom you bought it. -
Page 22: End Of Life
TM-601N/603/604 14. End of life Caution : this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal. EN-20... - Page 24 Solar power meter, Radiation meter, Clamp meter, Multimeter, Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http://www.tenmars.com...
