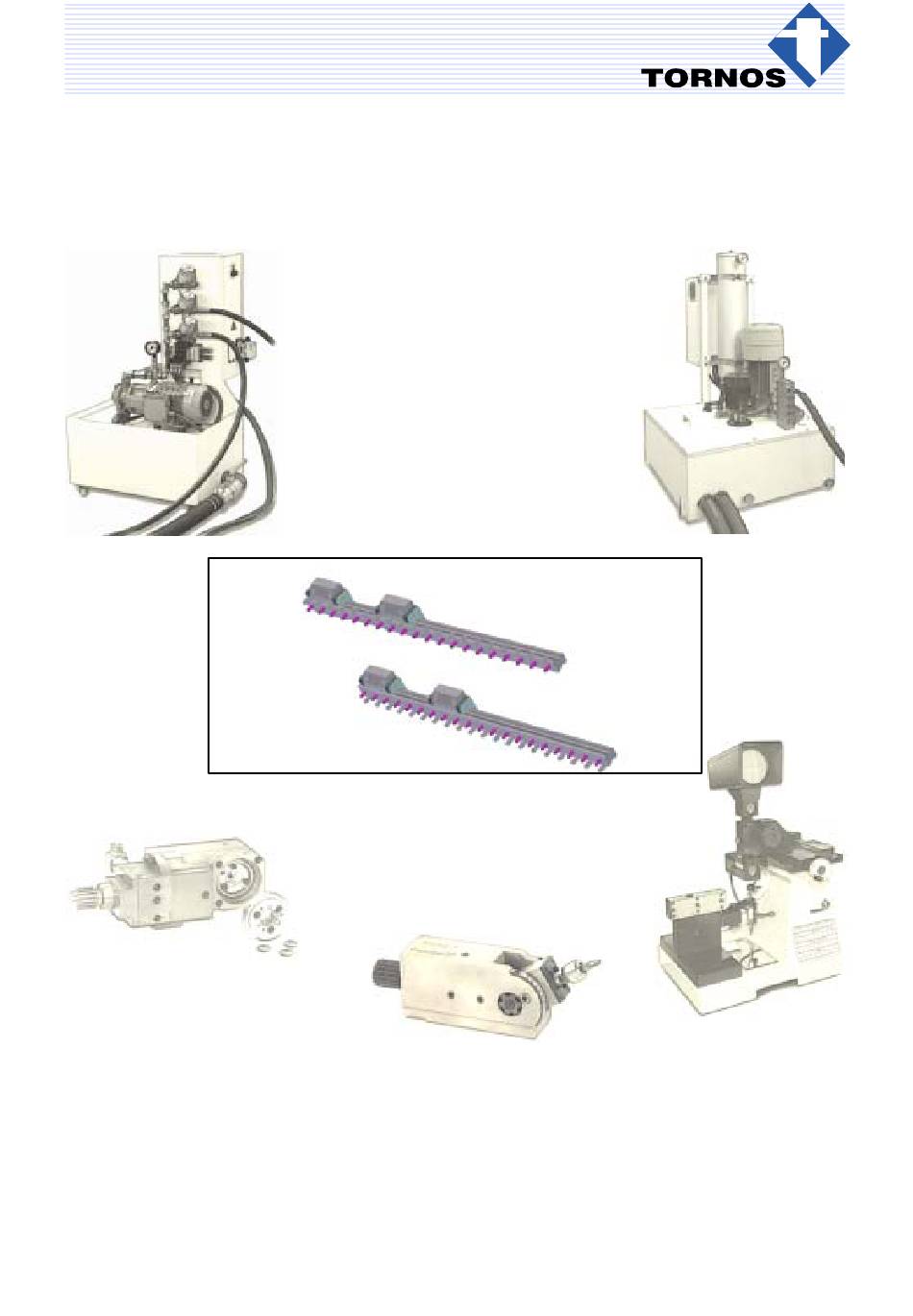

- Page 1 IT − DECO 7a/10a MOUNTING Y1Y2 LINEAR GUIDES TT5497 en ∆ Warning ! Failure to comply with the safety regulations may cause serious accidents. TORNOS SA − CH−2740 MOUTIER − http://www.tornos.ch Printed in Switzerland Copyright (c)1999−2004...
- Page 2 Tel. (203) 775−4319 S / FORON CEDEX Fax (203) 775−4281 Tél. 04 50 038 333 Fax 04 50 038 907 TORNOS TECHNOLOGIES UK Ltd Tornos House Whitwick Business Park Coalville Leicestershire LE67 4JQ Tel. 01530 513100 Fax 01 530 814212...
- Page 3 Important Safety Indications ∆ Warning ! Read the instruction before operating the machine. Should the user disregard the instructions of this manual, TORNOS SA declines any liability whatsoever. ∆ Attention ! Certain maintenance works are absolutely necessary to ensure good operation of the machine.
- Page 4 ∆ Caution ! Make sure the axis belts are changed by a professional who has attended a TORNOS mainte- nance training ! Before you change the belt of a vertical axis, lock the carriage to keep it from sliding down in free fall ! ∆...
-
Page 5: Mounting (Assembly)
IT MONTING − DECO 7a/10a TECHNICAL INSTRUCTION FOR MOUNTING Y1Y2 LINEAR GUIDES ON DECO 7/10 GENERAL DATA Group Identification : 305015 compound slide for frontwork gang – guides DN 15 lg 236 ident. 241621 305016 compound slide for backwork gang − guides DN 15 lg 236 ident. - Page 6 IT MONTING − DECO 7a/10a What to do ? Notes Torque the fastening screws M4x14 of the guides (rails) following the same procedure as Torque 6Nm for the eccentrics to 6 Nm Insert the 2−piece caps delivered as a guide...
- Page 7 IT MONTING − DECO 7a/10a What to do ? Notes INSTALLING THE BALLSCREW : Insert the ballscrew (561102 Pos. 0180) in its recess on the gang carriage (Pos 030)..by aligning the gang carriage / ballscrew greasing holes. Secure it with 6 screws M5x16 (Pos.
- Page 8 IT MONTING − DECO 7a/10a What to do ? Notes TEST: Position the comparator with the feeler gauge against the ballscrew surface. Screw/unscrew once or twice the nut of the ballscrew (561443 Pos. 0196) so that the roller bearings are correctly installed in the ring.
- Page 9 IT MONTING − DECO 7a/10a 305015f1 TT5497 en − 12/04 Chap. / 5...
- Page 10 IT MONTING − DECO 7a/10a 305016f1 Chap. / 6 TT5497 en − 12/04...
