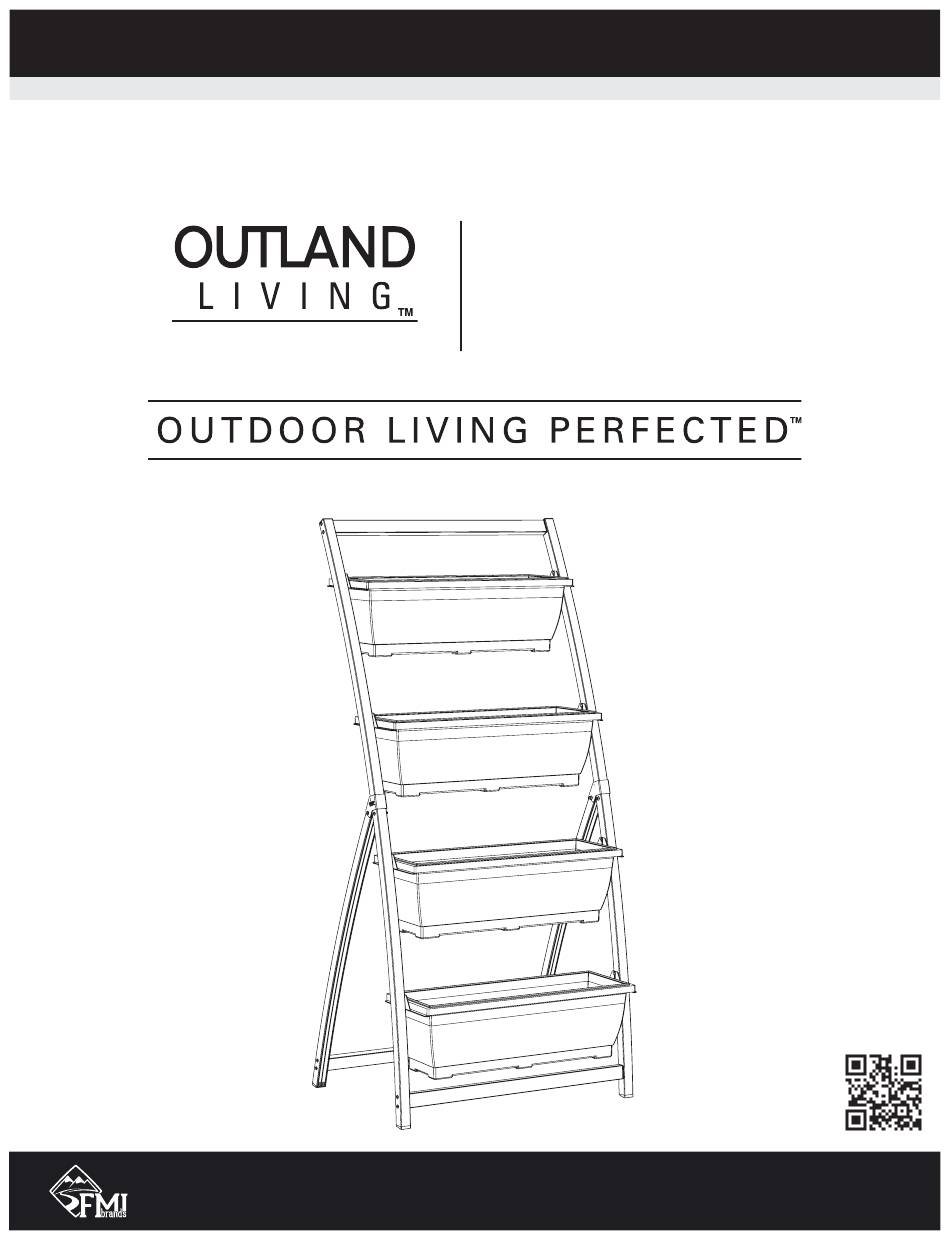

- Page 1 Owner’s Manual 4BIN - VERTICAL GARDEN Model number OLVG-302 D. OLVG-302.000.V0 FMI BRANDS INC. 107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7 Toll Free: 1-888-514-1663 | Tel: (+1) 778-294-0988 | Email: info@outlandliving.com...
- Page 2 FRAME (x1) NOTE TO INSTALLER: Leave this guide with the consumer. NOTE TO CONSUMER: Please retain this guide for future use. LEFT TOP FRAME (x1) LEFT BOTTOM FRAME (x1) En-1 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D. OLVG-302.000.V0...
-
Page 3: Table Of Contents
SUPPLIED PARTS & HARDWARE LIST (continued): DESCRIPTION PART # DESCRIPTION PICTURE PART # PICTURE CROSS BARS M5x45mm (x2) SCREW (x2) REAR LEGS M5 NUT (x4) (x2) PLASTIC BIN HANGER PLANTER BIN (x8) (x4) M5x40mm DRAIN PLUG SCREW (x14) (x4) En-2 1-888-514-1663 | WWW.OUTLANDLIVING.COM... -
Page 4: Cross Bars
Attach two of the Cross Bars (Part 5) to complete the Bottom Frame assembly using (8x) 40mm screws (Part 8). Cross Bar M5x40 Screws (x8) Bottom Frame Assembly Cross Bar En-3 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D. OLVG-302.000.V0... -
Page 5: (X2)
SECTION 1: ASSEMBLY (continued) STEP 4 STEP 5 Insert the Upper Frames (Part 1 and 3) into the Bottom Frame Attach the third Cross Bar (Part 5) to complete the Top Frame assembly. Attach using (2x) 40mm screws (Part 8) and (2x) assembly using (4x) M5x40mm screws (Part 8) nuts (Part 10). -
Page 6: Bin Hanger
VERTICAL GARDEN SECTION 1: ASSEMBLY (continued) SECTION 1: ASSEMBLY (continued) STEP 6 Hang the Bin Hanger Brackets (Part 7) on the support pegs Bin Hanger Support Peg Bin Hanger En-5 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D. OLVG-302.000.V0... - Page 7 SECTION 1: ASSEMBLY (continued) STEP 7 STEP 8 Place Plastic Bins (Part 11) on the Bin Hanger Brackets Assembly is complete. Set the frame in the location where you want to display it, before loading the frame with fully loaded planter bins Note: Using the silicone stoppers (Drain Plugs, Part 12) is optional.
- Page 8 Owner & Safety Manual VERTICAL GARDEN APPROXIMATE DIMENSIONS The Vertical Garden frame measures approximately: 30”W x 23”D x 65”H (760mmW x 580mmD x 1650mmH). 30” 760mm GROUND FRONT SIDE 23” 580mm En-7 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D. OLVG-302.000.V0...
- Page 9 SECTION 2: PLANTER Outdoor Gardening? No need to install GARDENING the drain plug. Gardening without the drain plug allows excess rain water to flow FACE DRAIN PLASTIC PLANTER BINS HOLES TO THE through the bins to the ground below. FRONT The plastic bins are made from 100% new (CASCADING DRAINAGE LAYER...
- Page 10 WATERING FEATURE Prior to each use: The OUTLAND Living vertical garden planter bins will rotate on the support pegs to make watering your plants easy and convenient. • Ensure placement is on a level and firm surface able to hold the...
- Page 11 SECTION 4: MAINTENANCE SECTION 5: STORAGE Your Outland Vertical Garden is meant for indoor or outdoor use Your Vertical Garden has been designed to conveniently store away and requires periodic maintenance to keep it in good condition. when not in use. •...
- Page 12 Any returns sent back to FMI Brands must be sent via prepaid freight and in the original retail packaging. Please register your OUTLAND Living product for proof of purchase and warranty at http://outlandliving.com/register-products/ For more warranty information and details please contact FMI Brands Inc. at info@outlandliving.com FOR REPLACEMENT PARTS AND ACCESSORIES PLEASE VISIT WWW.OUTLANDLIVING.COM...
