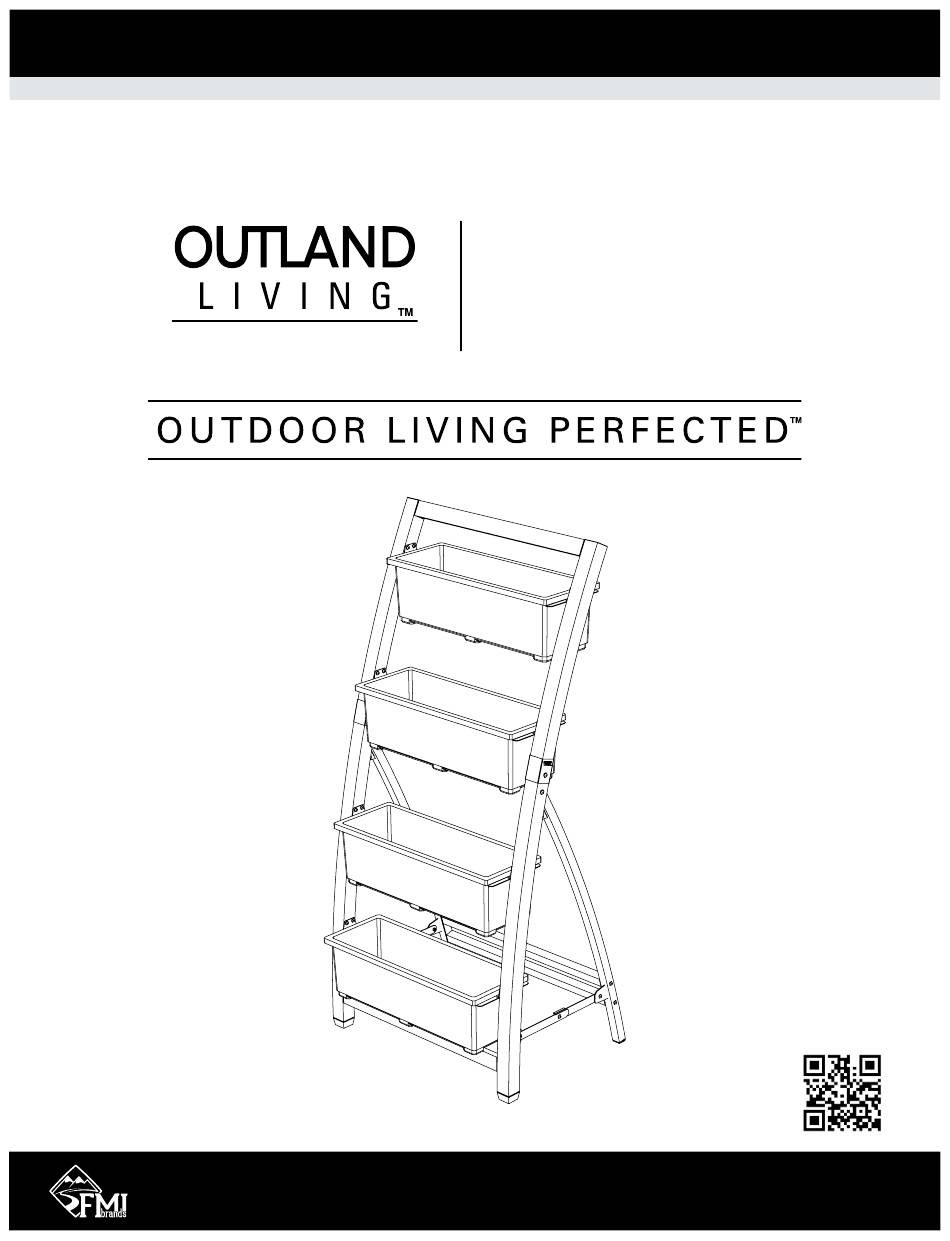

- Page 1 Owner’s Manual VERTICAL GARDEN Model number OLVG-4BIN Series number 301 D.OLVG-301.000.V1 FMI BRANDS INC. 107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7 | Toll Free 1-888-514-1663 | Fax 1-888-797-9931...
- Page 2 Please retain this guide for future use. RIGHT UPPER FRAME (x1) RIGHT LOWER FRAME (x1) FMI BRANDS INC. 309-19133 26th Avenue, Surrey, B.C. Canada V3Z 3V7 Toll Free 1-888-514-1663 Fax 1-888-797-9931 En-1 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D.OLVG-4BIN.301.000.V1...
- Page 3 SUPPLIED PARTS & HARDWARE LIST (continued): DESCRIPTION PART # DESCRIPTION PICTURE PART # PICTURE FRONT CROSS M8x60mm BAR (x2) SCREW (x4) REAR CROSS M8 PLASTIC BAR (x1) WASHER (x4) BIN HANGER M8 NUT (x4) (x8) M6x16mm PLASTIC SCREW (x24) PLANTER BIN (x4) M6x40mm SCREW (x4)
- Page 4 Frame_RHS using (x4) M6x16 screws (part 8) and (4x) M8x60 screws (part 11), (4x) M8 plastic washers (Part 12) and M6 plastic washers (part 10). (4x) M8 nuts (part 13). DETAIL A FRAME-LHS FRAME-RHS En-3 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D.OLVG-4BIN.301.000.V1...
- Page 5 STEP 4 SECTION 1: ASSEMBLY (continued) Place the Plastic Planter Bins (part 14) on the Bin Hangers. STEP 3 Attach (x8) Bin Hangers (part 7) to frame using (x16) M6x16 screws (part 8) and (16x) M6 plastic washers (part 10) - NOTE ORIENTATION OF BIN HANGER IN DRAWING DETAIL B DETAIL B IMPORTANT: FACE THIS WAY FRONT.
- Page 6 113 Litres (L) underneath allows you to remove it, in the future, should you desire to manually drain the bottom planter bin. PERSPECTIVE VIEW PLASTIC PLANTER BIN DRAIN HOLE DETAIL C En-5 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D.OLVG-4BIN.301.000.V1...
- Page 7 SECTION 1: ASSEMBLY (continued) Your OUTLAND Vertical Garden is ready to use indoors or outdoors. c. Removing the drain plug allows excess water to drain out of the lowest plastic planter bin. When indoor, or patio gardening, place a tray under the bottom bin before removing the drain plug. BOTTOM DRAIN TO DRAIN BIN...
-
Page 8: Maintenance
This appliance is NOT a toy. WARNING: Do not climb on the Vertical Garden or use it as a ladder or serious injury, property damage and/or death may occur. En-7 OUTLAND LIVING VERTICAL GARDEN OWNER & SAFETY MANUAL D.OLVG-4BIN.301.000.V1... - Page 9 NOTES: • The Vertical Garden measures 70” High and stands in a compact footprint of 32” Wide x 23” Deep. • Select your preferred potting mix and budget for approximately 28L (25 quarts) of soil per bin. Adjust soil volume to match your need. •...
-
Page 10: Year Limited Warranty
Any returns sent back to FMI Brands must be sent via prepaid freight and in the original retail packaging. Please register your OUTLAND Living product for proof of purchase and warranty at http://outlandliving.com/register-products/ For more warranty information and details please contact FMI Brands Inc. at info@outlandliving.com En-9 OUTLAND LIVING VERTICAL GARDEN OWNER &... - Page 11 FOR REPLACEMENT PARTS AND ACCESSORIES PLEASE VISIT WWW.OUTLANDLIVING.COM The owner’s manual is available as a free download from www.outlandliving.com Replacement part orders can be sent by mail to the address on the cover of this booklet, or faxed to (888) 797-9931. Should you have any questions or comments regarding this product, please do not hesitate to contact FMI Brands Inc.
