IBM Security Web Gateway Appliance
Hardware Offering
Version 7.0

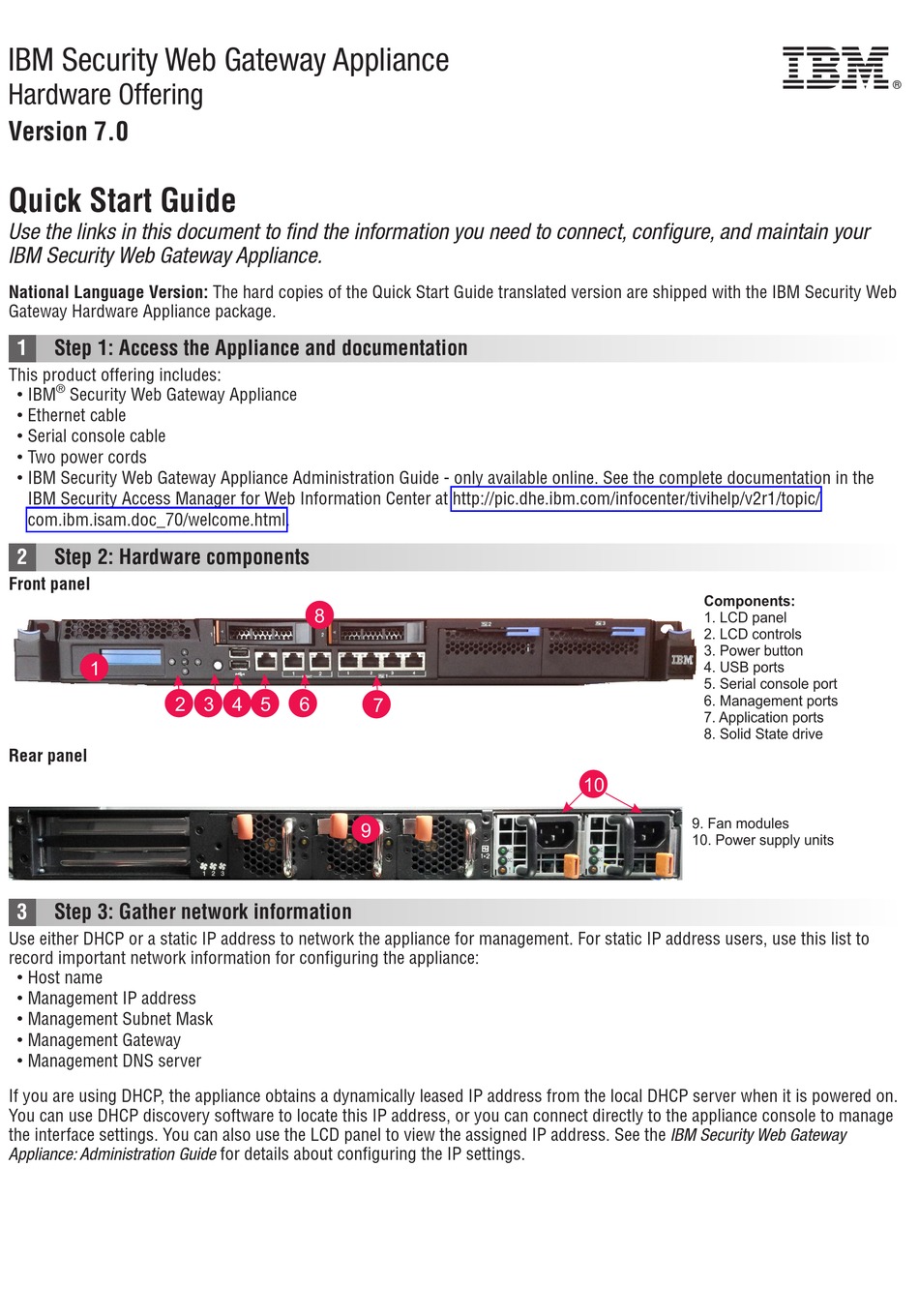

Quick Start Guide
Use the links in this document to find the information you need to connect, configure, and maintain your
IBM Security Web Gateway Appliance.
National Language Version: The hard copies of the Quick Start Guide translated version are shipped with the IBM Security Web
Gateway Hardware Appliance package.
1
Step 1: Access the Appliance and documentation
This product offering includes:
®
v IBM
Security Web Gateway Appliance
v Ethernet cable
v Serial console cable
v Two power cords
v IBM Security Web Gateway Appliance Administration Guide - only available online. See the complete documentation in the
IBM Security Access Manager for Web Information Center at http://pic.dhe.ibm.com/infocenter/tivihelp/v2r1/topic/
com.ibm.isam.doc_70/welcome.html.
2
Step 2: Hardware components
Front panel
1
2
Rear panel
3
Step 3: Gather network information
Use either DHCP or a static IP address to network the appliance for management. For static IP address users, use this list to
record important network information for configuring the appliance:
v Host name
v Management IP address
v Management Subnet Mask
v Management Gateway
v Management DNS server
If you are using DHCP, the appliance obtains a dynamically leased IP address from the local DHCP server when it is powered on.
You can use DHCP discovery software to locate this IP address, or you can connect directly to the appliance console to manage
the interface settings. You can also use the LCD panel to view the assigned IP address. See the IBM Security Web Gateway
Appliance: Administration Guide for details about configuring the IP settings.
8
3
4
5
6
7
9
Components:
1. LCD panel
2. LCD controls
3. Power button
4. USB ports
5. Serial console port
6. Management ports
7. Application ports
8. Solid State drive
10
9. Fan modules
10. Power supply units
