EB TECHNOLOGY Nologo START-S102 Instruction And Warnings For The Installer

Advertisement

Quick Links

• Control unit for lights or motor
• Supplied with 433Mhz plug-in receiver
100%
ITAL Y

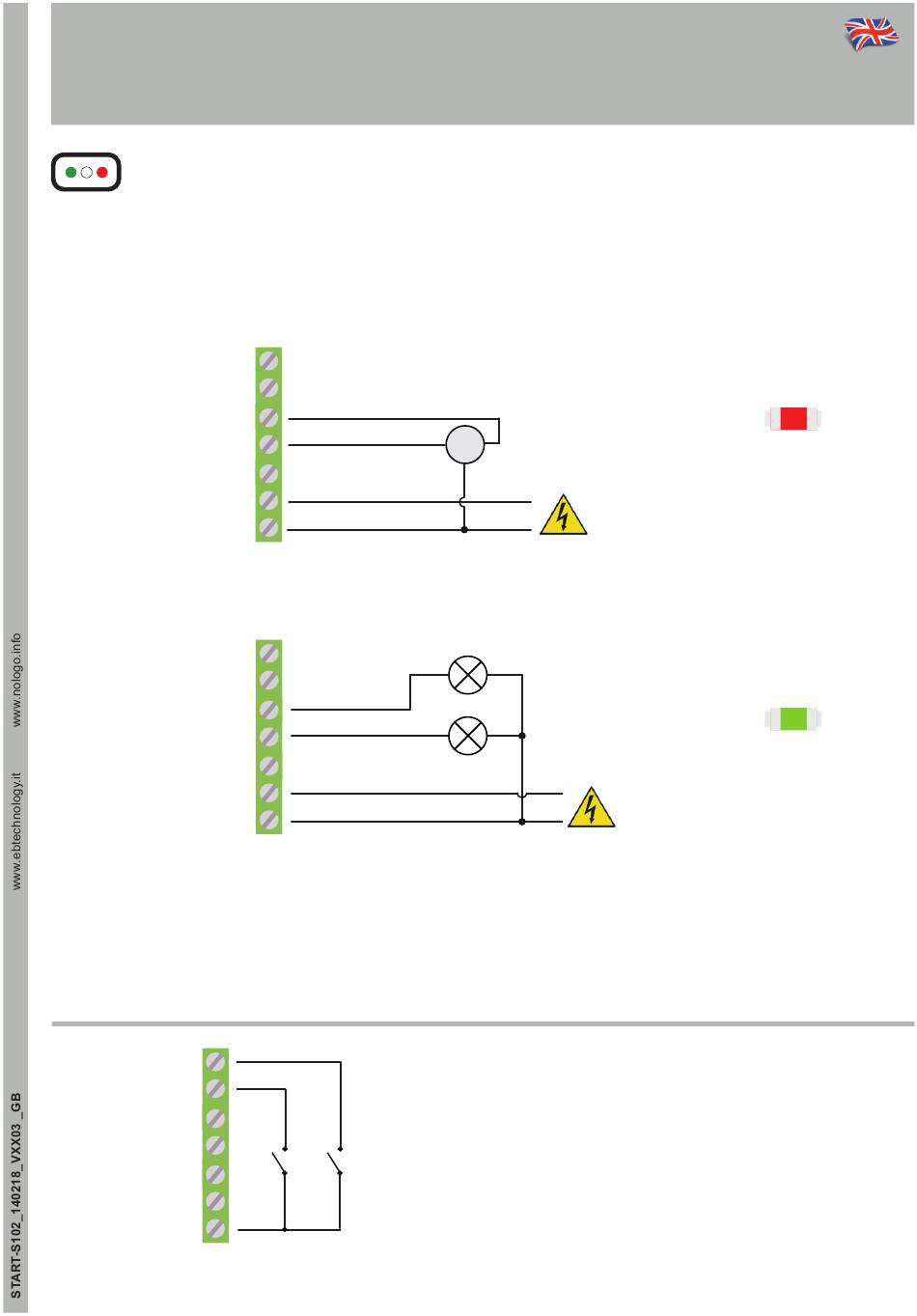

Connection for the Motor
P1 Input
-7-
P2 Input
-6-
Open
-5-
Close
-4-
-3-
Phase 230 Vac
-2-
Neutral 230 Vac
-1-
Connection for light groups
P1 Input
-7-
P2 Input
-6-
Light 1
-5-
Light 2
-4-
-3-
Phase 230 Vac
-2-
Neutral 230 Vac
-1-
*
First second after turning on of the control unit START-S102 is possible to choose with button P the
required function. Each pression of the button changes into:
LIGHTS Led 2
GREEN.
Connection commandes P1 / P2
P1 Input
-7-
P2 Input
-6-
Light 1
-5-
Light 2
-4-
-3-
L 230 Vac
-2-
N 230 Vac
-1-
The connection of the commands P1 / P2 can be done with every button or N.O. contact. When more devices
are available, connect them in parallel.
START-S102
N.A.
N.A.
Instructions and warnings for the installer
OP
M
CL
COM
Light 1
Light 2
Command MOTOR Led 1
FUNCTION:
Command MOTOR:
P1 Input -> Command OPEN
P2 Input -> Command CLOSE
Command LIGHT:
P1 Input -> Command LIGHT 1
P2 Input -> Command LIGHT 2
*
LED 1
Led 1 Red lit on
control unit with
MOTOR function
*
LED 2
Led 1 Green lit on
control unit with
LIGHT function
RED,
Command
