SELWOOD D75 Manual

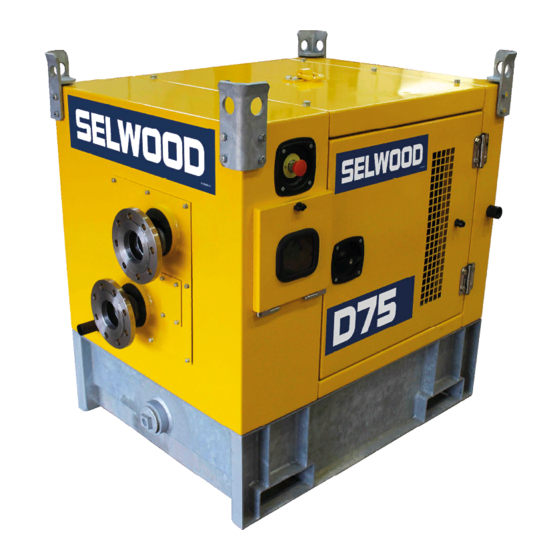

SELWOOD D75
Operating & Service Manual
The products of Selwood Limited are designed,
developed and produced in the company's Chandlers
Ford factory.
World-wide patents cover many features.
names such as Spate, Simplite and Seltorque, are
registered trademarks.
As all products are subject to continuous development,
the company reserves
specifications and information given in this manual
without prior notice.
Whilst every care has been taken in the preparation of
this publication, the information it contains must not be
regarded as binding.
Amendments to this publication will only be issued to
cover those design changes, which fundamentally alter
the build or operation and servicing procedures. They
will be distributed through the company's dealers and
agencies.
Your attention is drawn to the following symbols used
throughout this manual:-
CAUTION
This caution symbol draws attention to special
instructions or procedures that, if not correctly
followed, may result in damage to, or destruction of
equipment.
WARNING
This warning symbol draws attention to special
instructions or procedures that, if not strictly
observed, may result in personal injury.
WARNING
A WARNING SYMBOL WITH THIS TYPE OF
TEXT DRAWS ATTENTION TO SPECIAL
INSTRUCTIONS OR PROCEDURES WHICH, IF NOT
STRICTLY OBSERVED MAY RESULT IN SEVERE
PERSONAL INJURY, OR LOSS OF LIFE.
Additional copies of this manual are available from
Selwood Pt No 7508025000
Published by © Selwood Limited
Selwood Limited December 2008
REPLACEMENT PARTS
Instructions for Ordering
1. Always quote the pump serial number located on
the plate fastened to the pump.
2. Always quote the ten digit part number for the
component, not the item reference number.
3. Always quote the description of the component.
Selwood D75 Manual
Product
the right to alter the
Items usually supplied together as sub-assemblies, will
have the sub-assembly part number printed at the
bottom of the relevant page.
HEALTH & SAFETY AT WORK 1974
As manufacturers of pumps and associated equipment
we wish to inform you that, in compliance with Section
6 of the Act, safety precautions should be taken with
certain of our products.
We take every care to ensure as far as is reasonably
practicable that our products are safe and without risk
to health when properly used.
appropriate health and safety precautions must be
taken, and in particular you are requested to have
special regard to
requirements leaflet P769 which accompanies each
pump on despatch from our premises.
Our products also conform to the E.E.C. Machinery
Safety Directive and carry the C.E. mark.
PROPOSITION 65 WARNING
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth
defects, and other reproductive harm.
Pumps and engines may be fitted with
seals or 'O' rings manufactured from
VITON or similar material.
When temperatures reach 400° C
(720° F) a corrosive acid is produced,
which cannot be removed from the
skin.
If signs of material decomposition are
evident, or if in doubt, always wear
disposable heavy-duty gloves.
1
Nevertheless,
the Operational &
CALIFORNIA USA
WARNING
safety
