Assembly Instructions
Warranty:
1. This swing must be assembled by two adults or more.
2. Tools are not included in packaging. The expected time required for assembly is usually
1-2hours.
3. Before assembly, ensure all parts are present and not damaged.
4. Assembly on a flat, hard, and debris-free surface.
5. Keep canopy swing away from fire or inflammable objects.
6. There are small parts are present in the packaging, do keeping small parts away from
children.
7. Children should be accompanied under the adults when use the swing.
8. Do not repack your swing until it is completely dry.
9. This swing must not be left erect in high wind conditions.

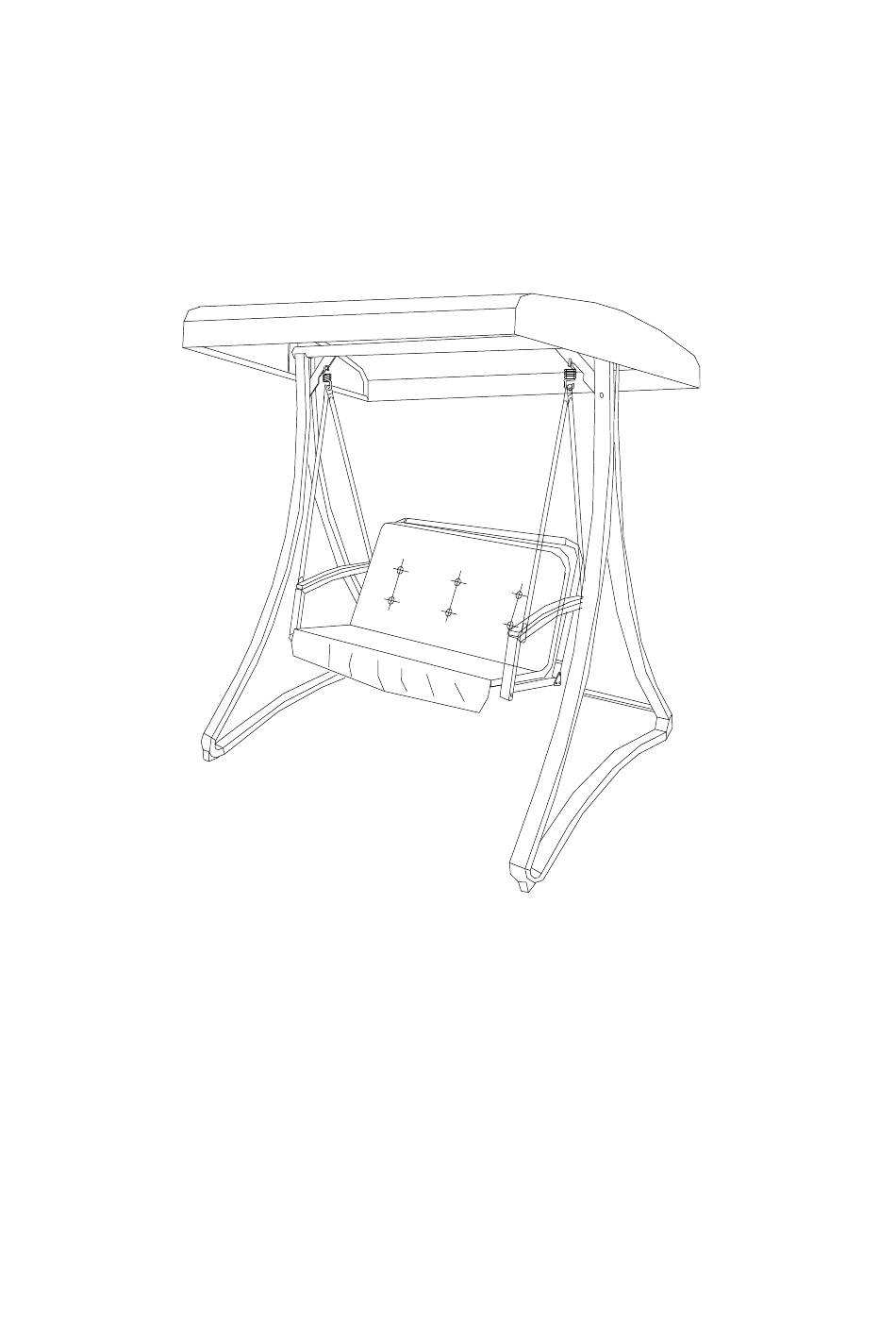

Item# D-DNC506PST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-DNC506PST
Summary of Contents for Sunjoy D-DNC506PST
- Page 1 Assembly Instructions Item# D-DNC506PST Warranty: 1. This swing must be assembled by two adults or more. 2. Tools are not included in packaging. The expected time required for assembly is usually 1-2hours. 3. Before assembly, ensure all parts are present and not damaged.
- Page 2 Parts List: Description Foot connector Foot connect bar Front foot Back foot Top beam Swing bar Foot connect bar Seat Armrest Seat cushion Canopy Top connect bar Top side support bar M6 plastic cap Bolt M6*70 Bolt M6*75 M6 washer M6 nut M8 plastic cap Bolt M8*75...
- Page 3 Step 2: Connect Foot connector (A) to Front foot (C1) & Back foot (C2) by using bolt (BB), washer (CC) and nut (DD), then cover Plastic cap (AA). Step 3: Connect Top beam (D) to Front foot (C1) & Back foot (C2) by using bolt (FF), washer (GG) and nut (HH), then cover Plastic cap Connect...
- Page 4 Step 4: Connect Armrest (H) and Seat (G) by using bolt (FF), washer (GG) and nut (HH), then cover Plastic cap (EE), as Fig.1. Connect Seat (G), Armrest (H) and Swing bar (E) by using bolt (II), washer (GG) and nut (HH), then cover Plastic cap (EE), as Fig.2.
- Page 5 Step 6: Hang another end of Hook (KK) to Top beam (D). Step 7: Insert Top connect bar (K) into Canopy (J).
- Page 6 Step 8: Connect Top side support bar (L) to Top beam (D) by using Adjust bolt (LL), as Fig.1. Fix the mortise lock of Seat (G) into the hole of Back foot (C2), as Fig.2. Step 9: Connect Top side support bar (L) and Top connect bar (K) by using bolt (JJ) and washer (GG), then cover plastic cap (EE).
- Page 7 tretch the canopy to fit, wrap Step 10: S and stick the side support bar (L) as well canopy velcro. Step 11: Place Seat cushion (I) onto the seat.
- Page 8 Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of 12 months.
