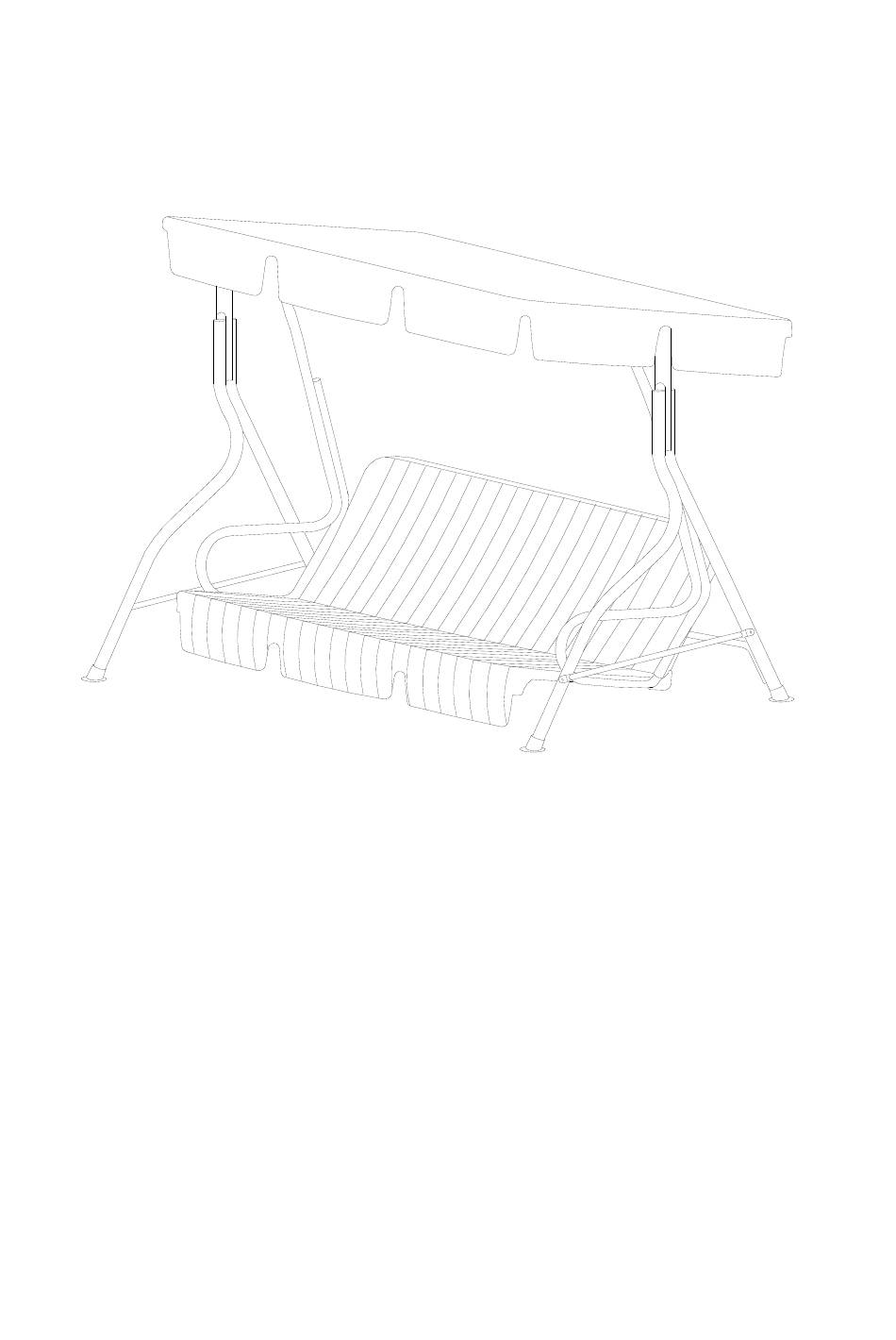

ASSEMBLY INSTRUCTIONS
Warranty
1. This swing must be assembled by two adults or more.
2. Tools are not included in packaging. The expected time required for assembly is usually 1-2hours.
3. Before assembly, ensure all parts are present and not damaged.
4. Assembly on a flat, hard, and debris-free surface.
5. Keep canopy swing away from fire or inflammable objects.
6. There are small parts are present in the packaging, do keeping small parts away from children.
7. Children should be accompanied under the adults when use the swing.
8. Do not repack your swing until it is completely dry.
9. This swing must not be left erect in high wind conditions.
Made in China
1 / 9
Advertisement
Table of Contents
Related Manuals for Sunjoy D-DNC373PST-E
Summary of Contents for Sunjoy D-DNC373PST-E
- Page 1 ASSEMBLY INSTRUCTIONS Warranty 1. This swing must be assembled by two adults or more. 2. Tools are not included in packaging. The expected time required for assembly is usually 1-2hours. 3. Before assembly, ensure all parts are present and not damaged. 4.
-
Page 2: Parts List
Parts List: No. Description Qty Image No. Description Qty Image Hook Front foot Armrest Back foot Seat support bar 1 Top side support bar support Top connect bar 2 Foot side support Canopy Foot back support bar 1 Seat Foot back cushion support bar 2... -
Page 3: Assembly Steps
Assembly steps Fig.1: Insert Top support bar 2 (D) into Top support bar 1 (C), fix them by using screw (P), washer (W), nut (V) and ball head nut (Z). Fig.2: Connect Front foot (A), Back foot (B) and Top support bar (C&D) by using screw (U), washer (W), nut (V) and ball head nut (Z), then connect Front foot (A) to Back foot (B) by using screw (T), washer (W), nut (V) and ball head nut (Z). - Page 4 Fig.3: Connect Foot side support bar (E) with Front foot (A) and Back foot (B) by using screw (Q), washer (W), nut (V) and ball head nut (Z). Fig.4: Insert Foot back support bar 1 (F) into Foot back support bar 2 (G), fix them by using screw (O), washer (W), nut (V) and ball head nut (Z).
- Page 5 Fig.5: Connect Foot back support bar (F&G) with Back foot (B) by using screw (S), washer(W), nut (V) and ball head nut (Z). Fig.6: Connect Armrest (I) with Seat (J) by using screw (R), washer (W), nut (V) and ball head nut (Z). Made in China 5 / 9...
- Page 6 Fig.7: Connect the bottom of armrest (I) with the bottom of seat (J) by using screw (R), washer (W), nut (V) and ball head nut (Z). Fig.8: Hang Armrest (I) to Top support bar (C&D) by using Hook (H). Made in China 6 / 9...
- Page 7 Fig.9: Connect Top side support bar (K) to Top support bar (C&D) by using Knob (Y). Fig.10: Insert Top connect bar (L) into Canopy (M). Made in China 7 / 9...
- Page 8 Fig.11: Insert Top connect bar (L) into top side support bar (K), then stretch the canopy to fit. Fig.12: Place Seat cushion (N) on the Seat (J). Made in China 8 / 9...
-
Page 9: Limited Warranty
Limited Warranty Care & Maintenance: 1. Before using, clean the swing completely with a soft dry towel. 2. Do not place your swing in wet conditions where there is a risk of rust developing. 3. When not in use, wipe free of any dirt or loose objects, Do not use strong detergent or abrasive cleaners. 4.
