TP-155 Wireless programmable indoor thermostat
The TP-155 is a wireless programmable indoor thermostat with a weekly heating
schedule. It can regulate
economical or comfort temperature
inside residential buildings. It offers a
few programmable modes. Every
mode regulates pre-set temperatures
(Comfort, Economy, Holiday, and
Party). The thermostat is able to
measure the thermal inertia inside the
premises and adjust the weekly
schedule for the requested
temperature to be reached at the pre-
set time.

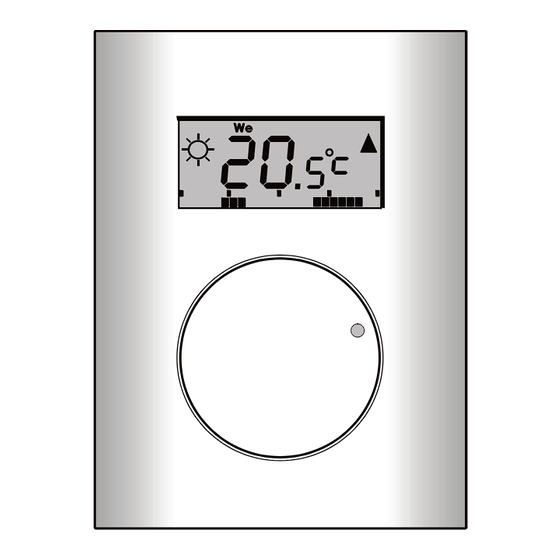

Figure 1: 1- knob (encoder) combined with button; 2- tab
Thermostat installation
The product can only be used in an indoor environment. Install the thermostat 1.5
m above the floor in a place where there is good natural air circulation. Don´t install
the thermostat where the measuring can be influenced by drafts, sunlight, heaters or
any other effects. Avoid mounting the thermostat on metal objects or metal bases
which block radio communication.
1. By pressing the tab (by screwdriver for instance) release the front part of the
thermostat.
2. Install the rear part of the thermostat at the chosen place (tab down).
3. Insert the batteries, the polarity is marked on the plastic.
4. Put back the front thermostat part and close it.
Enrolling the thermostat
Install and connect the receiving unit to the heating appliance. If the receiver has
been bought independently, you have to enroll the thermostat to it first. Open the
enrollment mode on the receiver (see its manual) and insert the batteries into the
thermostat or press and hold the knob for 5s. In both cases the thermostat will send
an enrollment signal. The text LRn appears on the LCD display when the enrolling
procedure (with AC-116 only) has been done successfully.
Symbols on the LCD:
Settings and programming
Do the complete settings using the knob – encoder. By pressing the knob 2 sec
enter the programming mode.
General rules for programming:
1. Flashing of any icon on the LCD allows changing the option(s) or choosing a
next item.
2. Perform choosing or changing by turning the knob (turning the knob is possible
from left to right and vice versa).
3. Confirm the selection or change by briefly pressing the knob.
4. When the value of an item has been changed, then after this briefly press the
knob and the changes are saved. Then the thermostat goes to the next item in
the programming menu.
5. After the setting / change of the chosen items, select the parameter „OK", in the
menu. By short pressing the system returns back to the previous menu (up to
the main menu).
6. If there is no manipulation of the knob for 30 sec, it returns you back to the
previous menu automatically.
The basic menu has 7 groups of settings.
MA Manual mode
n
LO Locking the thermostat
c
OF Switching off the thermostat
F
SE Temperature, date and time settings
t1
SE Weekly schedule setting
t2
SE Service menu
t3
OK Saving the parameters and leaving the service menu
1. MAn – manual mode
The temperature is set manually regardless of the weekly
schedule and is kept. Enter the menu and press the knob on
the item Man, the option ON (switched on) appears. By
turning the knob select the requested state and confirm by
TP-155 Wireless programmable indoor thermostat
the
Figure 2: 1 – Symbols for
comfort and
temperatures; 2 – The days of
the week; 3 – Locking
thermostat; 4 – Alarm
rature – limits / loss
communication;
ON / OFF; 6 – Holiday; 7 – Party;
8 – Heating times; 9 – Symbols
for showing temperature time
and texts; 10 – Low battery
pressing. The temperatures tLo and tHi determine the regulation range pre-
programmed in the service menu SE t3, in which you can select the temperature by
turning the knob. Choose the requested temperature. If the chosen temperature is
lower than the required temperature, the thermostat shows the symbol (▲) on its
LCD display. By entering the menu Man and confirming the option OFF, manual
mode is terminated.
2. LOc – Locking the thermostat
Choosing ON enables the function Lock, and blocks thermostat control. To unlock
the thermostat choose the option OFF. Locking the thermostat is indicated on the
LCD by the
3. OFF – Switching off the thermostat
enables the function OFF, and switches off the thermostat. This is indicated on the
LCD by the text OFF. Although the thermostat has been switched off, it still
measures and detects the antifreeze temperature (see SE t3, Stby). To unlock the
thermostat enter the menu and choose the option OFF. When the knob is pressed
the thermostat will be unlocked.
4. Set1 - Temperature, date and time settings
flashing. By turning the knob select the requested item ( , or
knob the symbols for temperature start flashing and again by turning the knob set the
required temperature and by repeatedly pressing the knob confirm this setting. The
last item serves for setting the current time. It indicates using flashing symbols of the
days of the week. By pressing you enter the current time setting. It starts with the
year. Pressing gets it flashing, and by turning the knob set the year, by pressing
again it saves the setting and then you continue the same way in setting the current
month, day, hour and minute. Then by pressing the knob after the minute setting the
values are saved and the thermostat is back in the menu Set1. Select the item OK to
economical
leave this menu.
the
tempe-
of
5 – Heating
5. SEt2 – Weekly schedule setting
The heating program for switching the comfort and the economy temperatures can
be set for every single day independently (Mo - Monday, Tu - Tuesday, We -
Wednesday, Th - Thursday, Fr - Friday, Sa - Saturday, Su - Sunday) or it can be
split into working days and the weekend. There is one more option - the same
settings for all days with no difference.
Enter the menu Set2, and by turning the knob select the combination of days which
is required. Confirm by briefly pressing the knob. It enters the programming of heating
time periods when the thermostat switches between the day temperature and the
night temperature.
6. SEt3 – Service menu
The service parameters can be pre-programmed here. In normal mode it is not
necessary to change those parameters. The Service menu includes 9 items. Open
by scrolling the knob to the requested item and by pressing the knob to enter the
programming mode. Select the value again by scrolling the knob. Confirm it by
pressing the knob and it returns you back to the service menu.
1 / 2
To protect the thermostat against unwanted manipulation you
can lock the thermostat. Enter the menu and press the knob
on the item LOc, the options ON/OFF appear. By turning the
knob select the requested state and confirm by pressing.
symbol.
The thermostat can be switched off by the option OFF.
Enter the menu and press the knob on the item OFF, the
options ON/OFF appear. By turning the knob select the
requested state and confirm by pressing. Choosing ON
In the Set1 menu the comfort temperature ( ), the economy
temperature ( ), the temperature for Holiday mode ( ), and
the data and time can be preset. Enter the menu Set1, and
on the LCD the symbol of the economy temperature starts
Programming always starts at 00 hrs. By turning the knob
clockwise, you can move through the time line. Press the
knob at the point from which you want to start with the
heating to the comfort temperature. The
to the . Now by turning the knob clockwise the points
appear which represent the hours for which heating is
performed to the economy temperature. By turning the
knob anti-clockwise the points are erased. Pressing the
knob more switches the economy temperature to the
comfort temperature. By repeating this procedure the
comfort and economy temperatures can be set for a
selected day (or for a group of a few days). After the
programming of the whole day has been finished, the
thermostat shows you OK. When the knob is pressed, all
settings are saved.
), by pressing the
symbol changes
