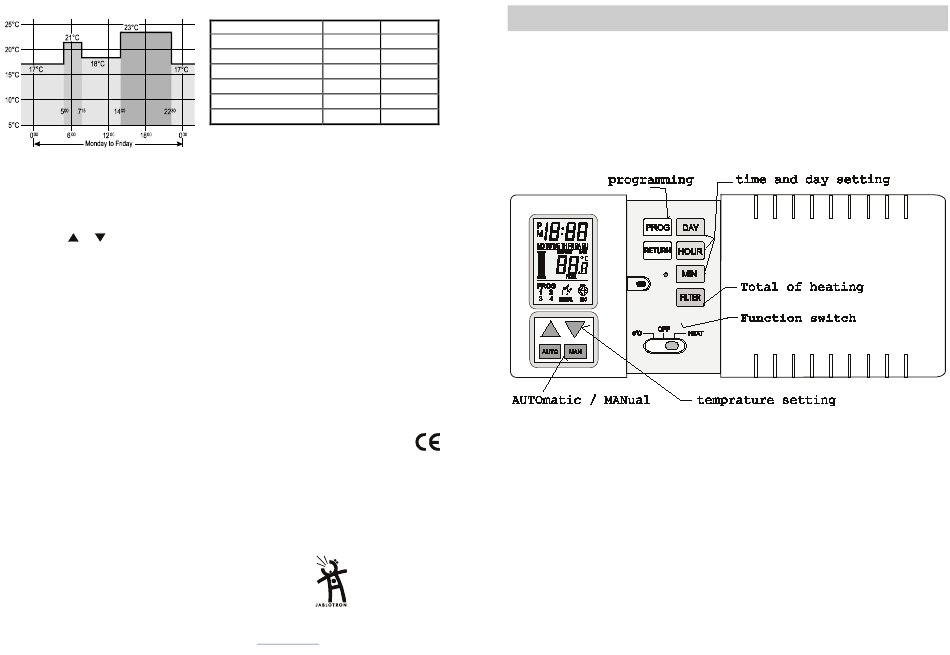

Temperatures corresponding to „A"
Temperature span adjustment
The factory set temperature span is 1°C. For example, if the temperature set point is 20°C, the
heating system will turn on at 19.5°C and turn off at 20.5°C.
The span is programmable. You can choose between 0.5, 1.0, 1.5 and 2.0°C.
To review or to change the temperature span:
1. Press PROG key while the RETURN key is pressed.
2. Release both keys.
3. Press the or buttons to select the new temperature span.
4. Press the RETURN key or wait 10 seconds for the automatic return.
Note : Choosing a small temperature span such as 0.5°C will be more comfortable (less temperature
variation in the apartment) but, the heating system will turn on and off more often.
New thermostat learning into the receiver unit
The receiver unit, which is included in the set, has been factory adjusted for the thermostat code. If you
change the thermostat for a new one, the receiver unit must be taught its code in the following way:
Remove the batteries from the thermostat
Open the upper cover from the receiver unit
Press the button inside the receiver several times until the 4
Place the batteries into the thermostat and all LEDs in the receiver will flash once
Reinstall the receiver cover
Note: Each receiver can work with only one thermostat. If the receiver unit was used with any other
device before, reset its memory before learning a thermostat. To reset the memory make the 4th LED
flashing and then press and hold the receiver button unit all LEDs flash rapidly for a moment.

Specifications

Thermostat unit : Power 2x AA battery (low battery indication)
Temperature Control Range from +5°C to +27°C
Switching span selectable from +0,5°C to +2°C
Temperature programs 4 in weekday, 2 in weekend
Working frequency 433,92 MHz
Working distance up to 100 m (open area)
Can be operated according to ERC REC 70-03
Comply with EN ETSI 300220, ETS 300683
Receiver unit : Voltage: 230 V AC
Power consumption: max. 1 W
Operating frequency: 433.92 MHz
Coding: digital, each thermostat has
a unique floating code
Output relay: over switching dry contact
Fused 6 A at 250 V
Hereby, Jablotron Ltd., declares that this TP-60 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Original of the conformity assessment can be found at the web page www.jablotron.cz, section Technical support.
Wireless thermostat TP-60
Use this table for your own data
Program number Start
1. Monday to Friday
2. Monday to Friday
3. Monday to Friday
4. Monday to Friday
1. Saturday & Sunday
2. Saturday & Sunday
th
LED flashes
Pod Skalkou 33
466 01 Jablonec nad Nisou
Czech Republic
Tel.: +420 483 559 999
fax: +420 483 559 993
Internet: www.jablotron.cz
- 4 / 4 -
°C
The TP-60 wireless thermostat can replace most common residential thermostats and is designed
to be used with electric, gas or oil heating. Many useful functions and operating modes have been
incorporated to provide a variety of solutions for all customer needs. In addition to all of the useful
functions, this state of the art programmable thermostat has the following advantages:
• simple installation: no wires required, long working distance
• 7 day timer to set the ECONO mode during a prolonged absence of the user.
• protection against freezing.
• Air filter (cleaning) supervision.
•
programmable regulation sensibility (SPAN)
Note: Dispose of batteries safely depending on the type of the batteries and local regulation. Although this
product does not contain any harmful materials we suggest you to return the product to the dealer or directly
to the producer after usage.
Installation
Choosing a location for the thermostat unit - choose a mounting location about 1.5 meter above
the floor in an area with good air circulation and away from:
1. Drafts and "dead air" spots.
2. Radiant heat from the sun or appliances.
3. Concealed pipes and chimneys.
Mounting the thermostat unit onto the wall:
1. Remove completely the slide door of the thermostat.
2. Mark the holes position
3. Drill two holes and insert the plastic anchors carefully into the holes.
4. Fasten the thermostat to the wall with the two (2) screws - included
5. Install two "AA" size alkaline batteries into the battery compartment.
MDU51604 Wireless thermostat TP-60
Wireless thermostat TP-60
- 4 / 1 - MDU51604
