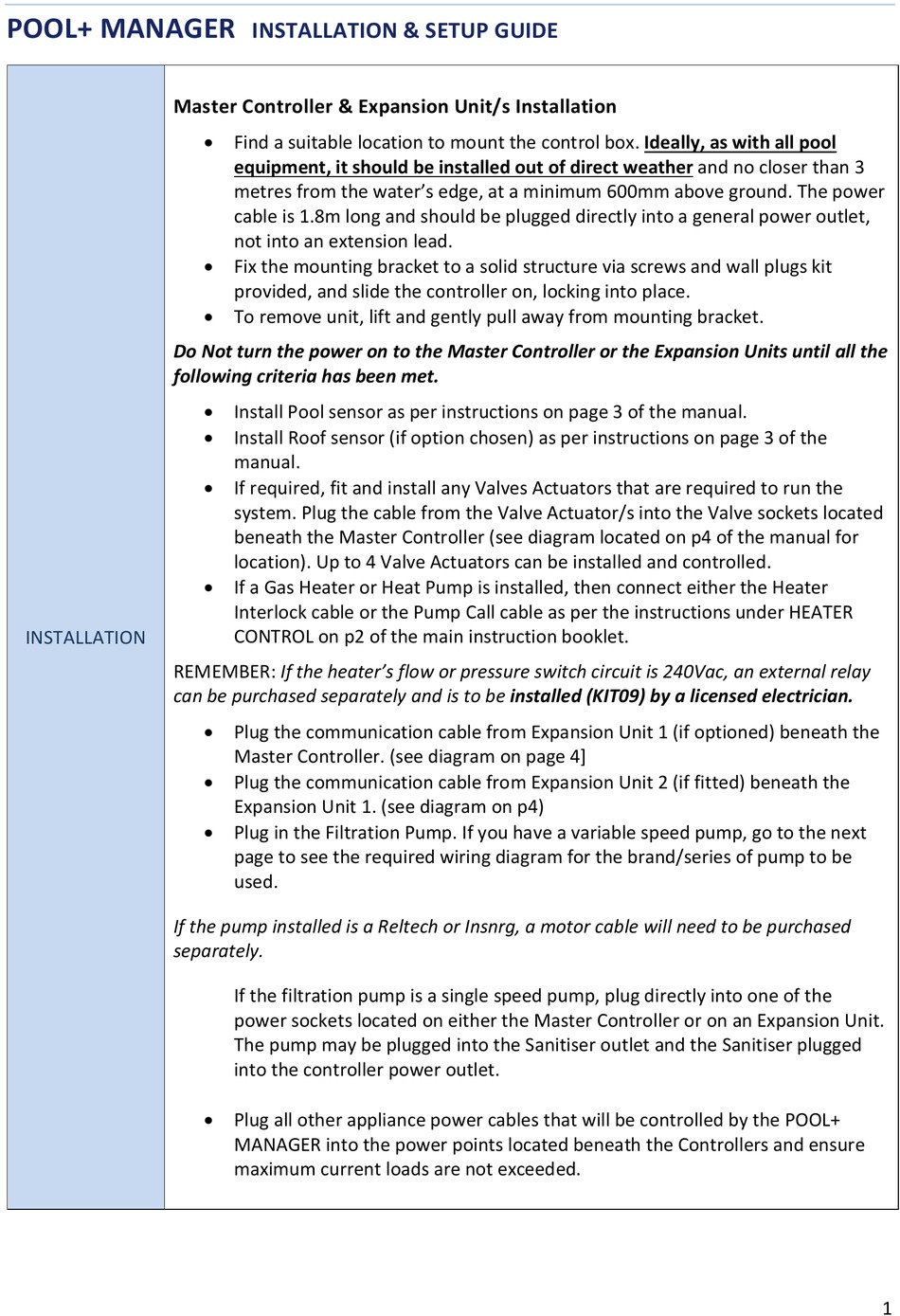

POOL+ MANAGER
Master Controller & Expansion Unit/s Installation
Do Not turn the power on to the Master Controller or the Expansion Units until all the
following criteria has been met.
INSTALLATION
REMEMBER: If the heater's flow or pressure switch circuit is 240Vac, an external relay
can be purchased separately and is to be installed (KIT09) by a licensed electrician.
If the pump installed is a Reltech or Insnrg, a motor cable will need to be purchased
separately.
INSTALLATION & SETUP GUIDE
Find a suitable location to mount the control box. Ideally, as with all pool
equipment, it should be installed out of direct weather and no closer than 3
metres from the water's edge, at a minimum 600mm above ground. The power
cable is 1.8m long and should be plugged directly into a general power outlet,
not into an extension lead.
Fix the mounting bracket to a solid structure via screws and wall plugs kit
provided, and slide the controller on, locking into place.
To remove unit, lift and gently pull away from mounting bracket.
Install Pool sensor as per instructions on page 3 of the manual.
Install Roof sensor (if option chosen) as per instructions on page 3 of the
manual.
If required, fit and install any Valves Actuators that are required to run the
system. Plug the cable from the Valve Actuator/s into the Valve sockets located
beneath the Master Controller (see diagram located on p4 of the manual for
location). Up to 4 Valve Actuators can be installed and controlled.
If a Gas Heater or Heat Pump is installed, then connect either the Heater
Interlock cable or the Pump Call cable as per the instructions under HEATER
CONTROL on p2 of the main instruction booklet.
Plug the communication cable from Expansion Unit 1 (if optioned) beneath the
Master Controller. (see diagram on page 4]
Plug the communication cable from Expansion Unit 2 (if fitted) beneath the
Expansion Unit 1. (see diagram on p4)
Plug in the Filtration Pump. If you have a variable speed pump, go to the next
page to see the required wiring diagram for the brand/series of pump to be
used.
If the filtration pump is a single speed pump, plug directly into one of the
power sockets located on either the Master Controller or on an Expansion Unit.
The pump may be plugged into the Sanitiser outlet and the Sanitiser plugged
into the controller power outlet.
Plug all other appliance power cables that will be controlled by the POOL+
MANAGER into the power points located beneath the Controllers and ensure
maximum current loads are not exceeded.
