Theralux POOL+ MANAGER A2 APP Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

POOL+ MANAGER A2 APP
Instruction Manual

DESCRIPTION

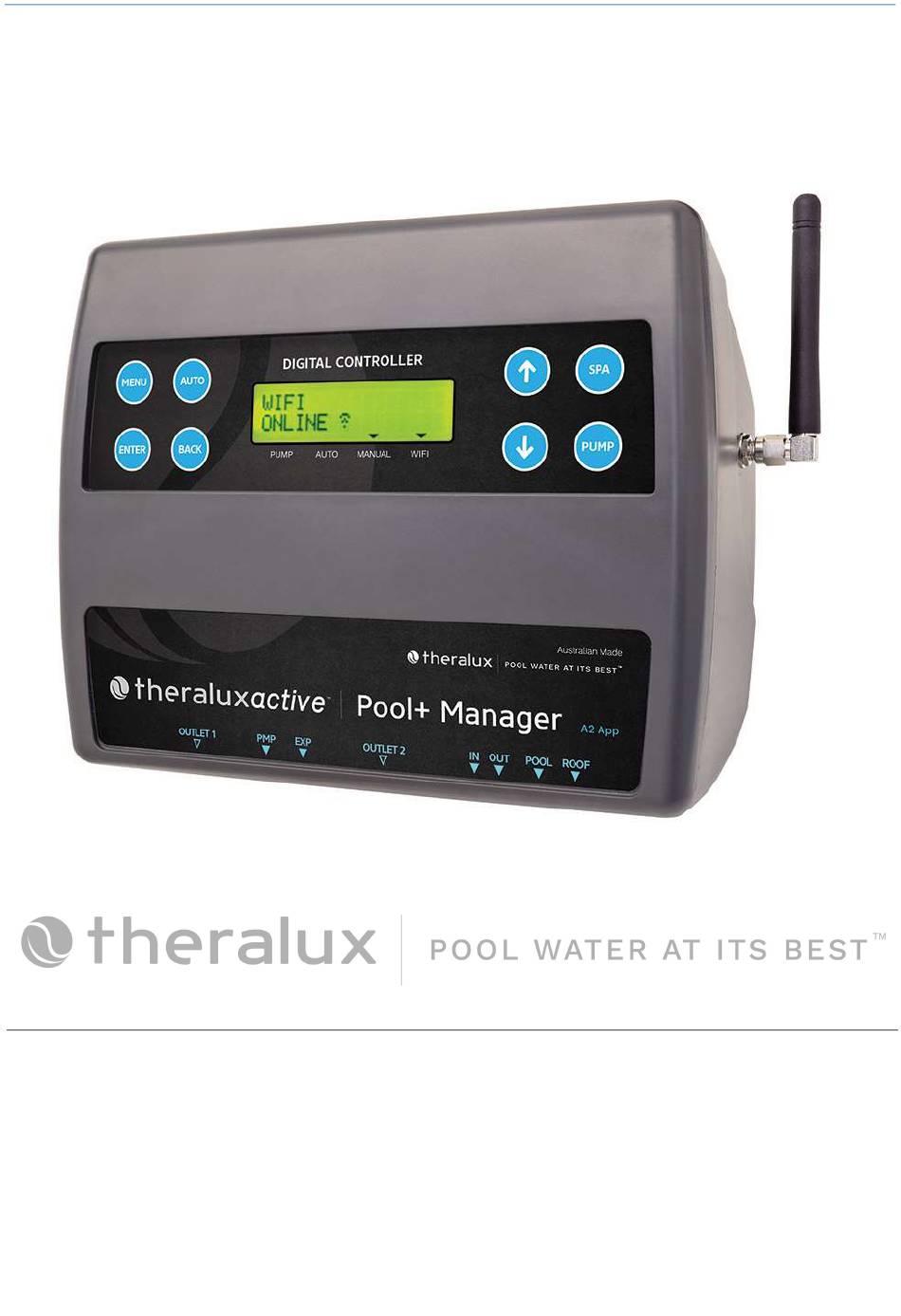

The Pool+ Manager A2 Controller manages your pool, spa and heating requirements from your smart phone
via the home WIFI. It will control single and many multi speed pumps, sanitiser, heater, solar heating, lights,
Water Features, pool/spa valve actuators and all spa equipment requirements.
The Pool+ Manager A2 Control system is modular and can accommodate most pool control requirements big
or small.
Pool^M Manager App A2 User Manual v1.0
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POOL+ MANAGER A2 APP and is the answer not in the manual?

Questions and answers

Related Manuals for Theralux POOL+ MANAGER A2 APP

Summary of Contents for Theralux POOL+ MANAGER A2 APP

  • Page 1 POOL+ MANAGER A2 APP Instruction Manual DESCRIPTION The Pool+ Manager A2 Controller manages your pool, spa and heating requirements from your smart phone via the home WIFI. It will control single and many multi speed pumps, sanitiser, heater, solar heating, lights, water features, pool/spa valve actuators and all spa equipment requirements.
  • Page 2 INSTALLATION INSTRUCTIONS THIS APPLIANCE IS NOT INTENDED FOR USE BY HEATER CONTROL YOUNG CHILDREN OR INFIRM PERSONS WITHOUT Set the heaters temperature limit to maximum SUPERVISION. PLEASE ENSURE THAT YOUNG (40°C). The heaters internal control will be CHILDREN ARE SUPERVISED TO ENSURE THAT THEY interrupted, to turn off heating.
  • Page 3 (not the top of the pipe where water will no more than 50cm from the roof gutter (for ease collect), this can be carried out using a Theralux of sensor replacement). If required, the roof sensor PD01 grinding drill or a small pilot hole can be can be on a different roof as the solar collector as drilled with a 14.0mm drill-bit used spinning in a...
  • Page 4 INSTALLATION DIAGRAMS The Pool+ Manager A2 Master Controller and an Expansion Unit. MASTER CONTROLLER Pin 1 is on the right-hand side of the plug EXPANSION UNIT/S Expansion Unit 1 Expansion Unit 1 Expansion Unit 1 Socket 3 Socket5 10 & 15AMP Socket4 Expansion Unit 2 Expansion Unit 2...
  • Page 5 OPERATING INSTRUCTIONS LCD SCREEN In Automatic (Pool) mode the LCD screen displays; the time of day, what time the current filtration cycle will finish/start at, if more than one filtration cycle is set, then the start time of the next filtration cycle is displayed, current pool and roof temperatures or any faults are displayed, current status of the pump (run/inactive), Heat Demand time (if active), and whether the WIFI is active or disabled.
  • Page 6 If at any time the PUMP button is pressed the pump is switched on and the following will be displayed: 3 MINS BACKWASH ENDS IN xx:xx:xx This function is used for a system back wash, pool vacuuming, manually running the system for a set amount of time, running the filtration system after adding chemicals, etc.
  • Page 7 MENU The menu system can be navigated using the ↑ or ↓ buttons. All selectable and changeable values will be displayed on the LCD screen. Press the ENTER button to accept the currently displayed item. All menu items are shown below: 1) FILTER TIMES 2) TEMPERATURE SETTINGS 3) MANUAL ON...
  • Page 8 You have the option to choose up to 4 different Filtration Times. When you select the FILTER TIMES menu option, the screen will display: FILTER TIME 1 When you select ON and press ENTER the screen will display: FILTER XX:XX TIME 1 ON XX:XX Adjust the start time and end time for the required filter cycle.
  • Page 9 When you enter Temperature Settings, the first setting that will be displayed is: POOL TEMPERATURE **Range is OFF, 20 c to 40 c in 1 c increments. Default is 27 c.** This temperature is the minimum pool temperature that you would like the Heater to heat the pool to if a heater is utilised.
  • Page 10 When you enter the TIMER menu, you can set a number of the allocated appliances on a timer. The appliance has to be allocated a socket or valve to be allowed a Timer setting. Each appliance has the choice of either; Off, 1 time, or 2 timer allocations. **Note: Time periods for different appliances can overlap each other.** The first available appliance to be set on a timer will be displayed as: Socket #X...
  • Page 11 In this menu setting, you can only change the colour of your allocated Pool and Spa light/s. Garden lights are not given the option of colour changing. The socket number and the brand/type of light must have been allocated in the Installer Setup under Appliances (6.3) before you can change the colours through this menu option.
  • Page 12 6. INSTALLER MENU The Installer Setup is where you will go to enter all the equipment that is installed on the Pool/Spa system and can have its settings changed in the Menu functions or via the App. Under the Installer Menu there is a range of options to choose from. These are: 1.
  • Page 13 When you enter the Appliance Menu, the first thing that will be displayed is: SOCKET #1 (currently allocated appliance) The ↑ or ↓ buttons are used to toggle between the Sockets of the Master Controller then Expansion Unit 1, then Expansion Unit 2, then the Valves and VF Contact of the Master Controller.
  • Page 14 Once you have pressed Enter to select the pump, the controller will ask you to set 4 pump speeds.  In the case of the Theralux 485, Reltech 485 & Insnrg brands you will be asked to set the speeds in RPM.
  • Page 15 In this menu option, you will be able to select which type and brand of Pool & Spa lights that you have installed.  A maximum of 3 sockets can be allocated to lights, whether Pool, or Spa. Each of the 3 sockets will run a Light Transformer. Each socket/group of lights will be the same colour as chosen.
  • Page 16 In this Menu option, you will be setting up the type/s of heating that is installed. The options are: Solar Heat Pump Gas Heater When you enter this menu option the first thing that is displayed is: SOLAR 1. NONE With Solar Heating, you have the options of: 1.
  • Page 17 HEAT PUMP ON Use the ↑ or ↓ buttons to highlight either ON or OFF. Enter On to enable the controller to run the Heat Pump or OFF to disable the heater. Press the Enter button to accept. Once you have accepted an option the controller will display: GAS HEATER ON If you select ON, the controller will then display: GAS HEATER...
  • Page 18 In this menu option, you are able to turn ON or OFF Spa operation, and Spa options. Use the ↑ or ↓ buttons to highlight either ON or OFF. Press Enter to accept. Note: These Spa options can only be turned ON or OFF if they have been allocated a socket in the Appliances Menu.
  • Page 19 POOL+ MANAGER App A2 - User Manual v1.0...
  • Page 20 If you select ON, the controller will display: SPA CHLORINATOR DUTY CYCLE Use the ↑ or ↓ buttons to adjust the percentage of chlorination you would like, while the Spa is running. The percentage is adjustable in lots of 10% from 0% to 100%. Adjust and press Enter to accept.
  • Page 21 POOL+ MANAGER App A2 - User Manual v1.0...
  • Page 22 When you enter this menu option, the controller will display: PUMP CALL If you select OFF, the controller will return you to the Installer Setup menu. If you select ON, the controller will display: (if a Multi Speed pump is installed) PUMP CALL SPEED X Use the ↑...
  • Page 23 POOL+ MANAGER App A2 - User Manual v1.0...
  • Page 24 In this menu option, you are able to decide which sensor port belongs to which sensor, Pool or Roof. When you enter the menu, the controller will display: TEMPERATURE SENSOR 1. Use the ↑ or ↓ buttons to scroll between SENSOR 1. And SENSOR 2. Press Enter when the sensor you want to change is displayed.
  • Page 25 Secondary Installation. If at a later stage you add an Expansion Unit, (whether first or second) you need to ensure that the signal cable is connected (as per diagram on page 4). Once the signal cable is connected, plug the Expansion Unit into a power point and turn it on. The Master Controller will detect that the Expansion Unit is there and assign it to either EXP:1 (if first unit) or EXP:2 (if second unit) and will be displayed as below.
  • Page 26 POOL+ MANAGER App A2 - User Manual v1.0...
  • Page 27 When you first set up the controller, it is in this this menu option, that you are able to set the time. When you enter this menu option the controller will display: AUTO SET TIME? Use the ↑ or ↓ buttons to alternate between YES or NO. Press Enter to accept. If you select Yes, the controller will ask for your location and display: LOCATION Use the ↑...
  • Page 28 Press the Enter button to move onto the next option and the controller will display: RESET WIFI SETTINGS IF NO, the controller will return you to the Installer Setup menu. If YES, the controller will reset any existing Wifi settings, including network password. 6.12 When yes is selected the controller will display: WIFI SETTINGS...
  • Page 29 (To be retained by the customer) CUSTOMER RECORD DEALER/INSTALLER NAME SERIAL NUMBER DATE INSTALLED International Quadratics Pty Ltd Divison: Theralux www.theralux.com.au 12 Gatwood Close, Padstow NSW 2211 Australia T: 1300 131 788 E: sales@Interquad.com.au POOL+ MANAGER App A2 - User Manual v1.0...
