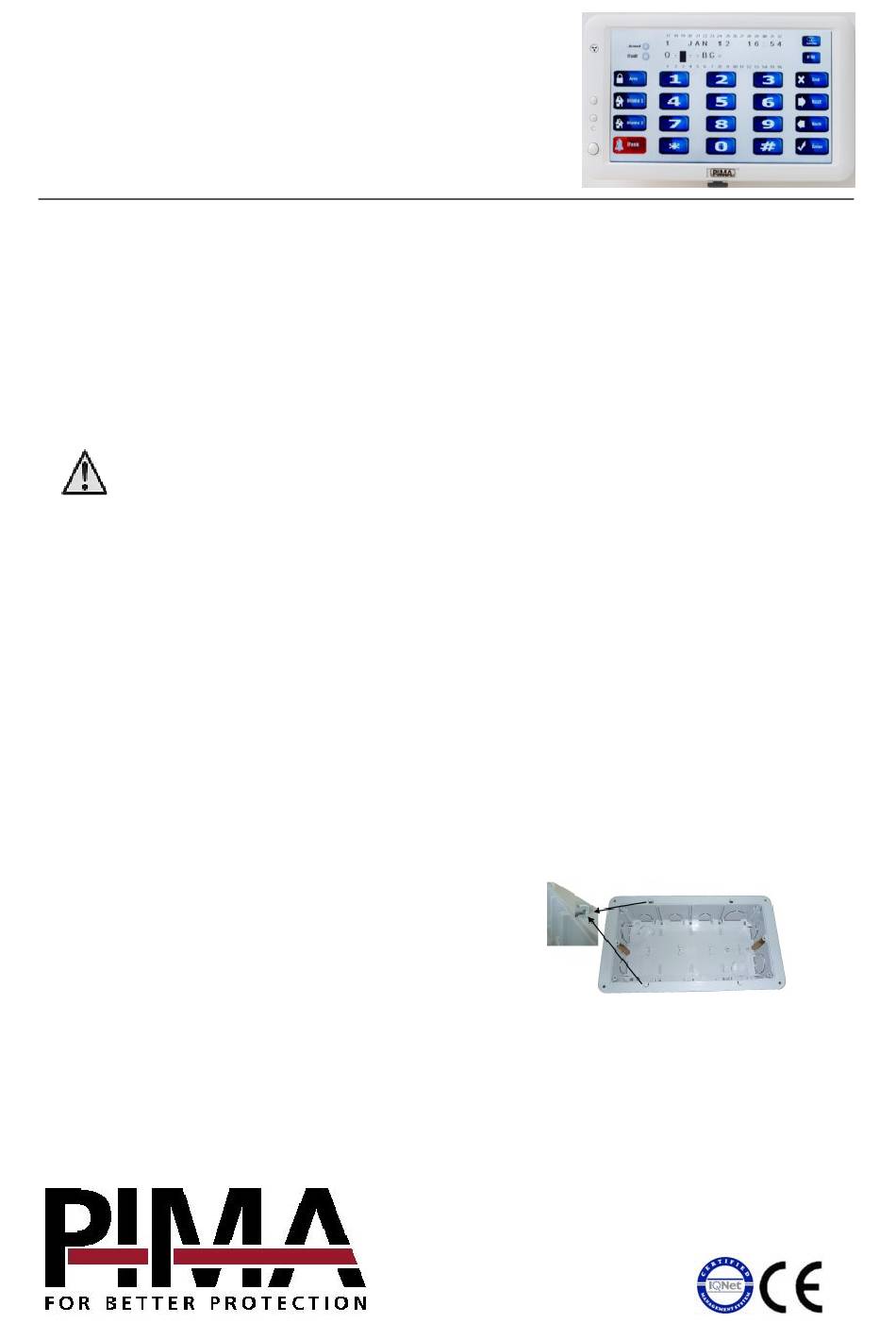

Pima RXN-700 Installation Manual

RXN-700
Graphic Keypad
for PIMA Intruder Alarm Systems
Installation Guide
PIMA's new generation RXN-700 LCD color graphic keypad offers an exciting new approach to
security, based on technology, design & comfort. The RXN-700 is designed to maintain PIMA's
programming expertise.
The RXN-700 keypad can be used with PIMA's Hunter-Pro Series and Captain 8 intruder
alarm systems.
The RXN-700 has two installation kits: flush mount (P/N 8190025), and surface mount
(P/N 8190023).
 The RXN-700 must be powered by a 12V transformer (not
included), and not by the control panel.
 The RXN-200 keypad cannot be used together with the RXN-700
 To use LED keypads together with the RXN-700, the LED keypads
must be set with ID's other than zero.

Safety instructions

Do not install the keypad in a humid or with extreme temperature environment.

Do not expose the screen to direct sunlight or ultraviolet radiation.


FLUSH MOUNT INSTALLATION

For flush mount installation, the RXN-700 comes with a 134X244mm plastic wall box. The box
must be mounted ahead of installation.
Out of the Box
Plastic wall box (supplied separately);

Metal mounting plate;

Metal decorative frame;

4 screws;

Flathead screw;

Figure 1.
In some models, the box's 4 knockouts must be
removed, before mounting the metal frame.
Wall box with knockouts
